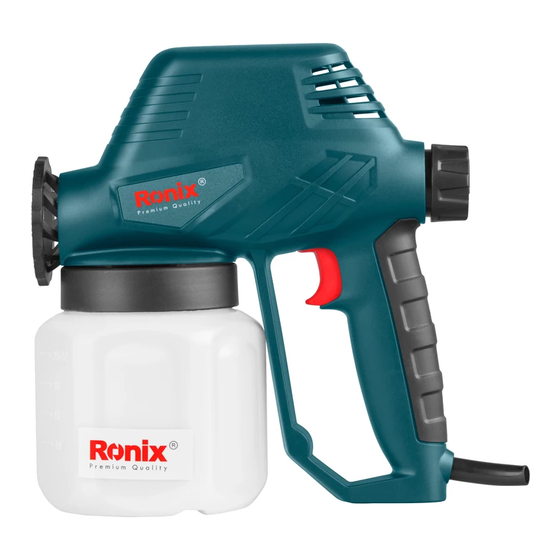

Ronix 1313 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SPRAY GUN
1313

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1313 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix 1313

Summary of Contents for Ronix 1313

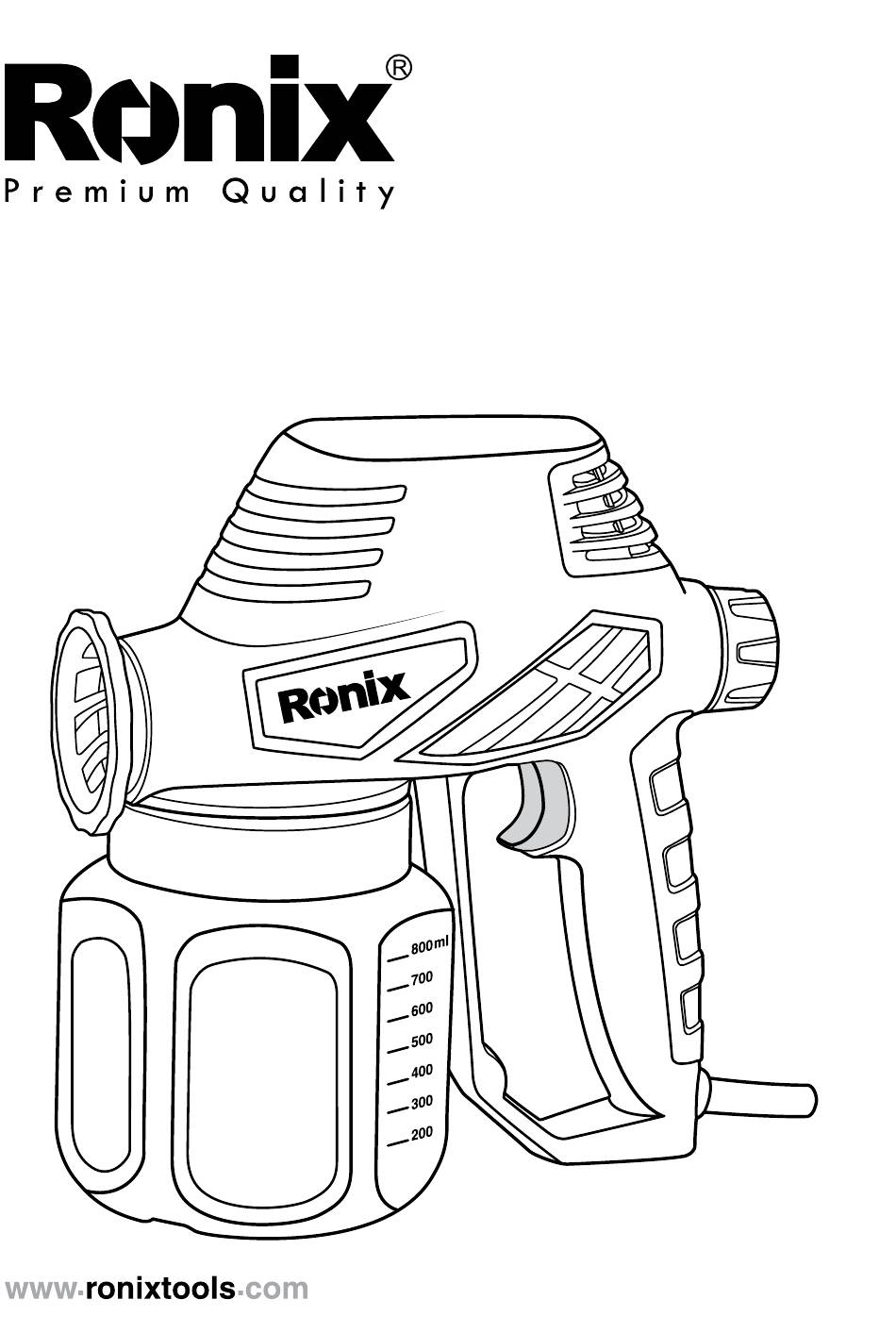

  • Page 1 SPRAY GUN 1313...

  • Page 3: Specifications

    SPECIFICATIONS Model 1313 Rated power input 130W Voltage 220V Frequency 50Hz Maximum nozzle flow rate 320ml/min Container capacity 800ml Nozzle size 0.8mm Weight 1.6kg PARTS LIST Motor housing Spray basket nozzle Output control Trigger switch Nozzle wrench Handle Viscosity cup...

  • Page 4: General Safety Instructions

    SAFETY INSTRUCTIONS GENERAL SAFETY INSTRUCTIONS The following symbols are used in these instructions for use: Denotes risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instructions in this manual Denotes risk of electric shock. Wear protective gloves Wear a dust mask.
  • Page 5 b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool.
  • Page 6 hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

  • Page 7: Safety Instructions For Spray Guns

    e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

  • Page 8: Residual Risks

    known. - Before working on the spray gun remove the power plug from the socket. - Do not use the spray guns to spray flammable substances.The spray guns are not to be cleaned with flammable solvents which have a flashpoint under 21°C. - Caution against dangers that can arise from the sprayed substance and observe the text and information on the containers or the specifications given by the substance manufacturer.
  • Page 9 managed and properly maintained. WARNING! This power tool produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.
  • Page 10 THINNING Always remember to disconnect from the mains supply before filling the paint container with spray able material. Most paints are supplied ready for brush application and will need to be thinned before they are suitable to be sprayed. Follow the manufacturer’s advice on thinning the paint when used with a spray gun.

  • Page 11: Spraying Techniques

    SPRAYING TECHNIQUES To obtain the best results, keep your spray gun level and parallel to the surface at all times. Keep the nozzle 25 - 30 cm from the surface and spray evenly from side to side or up and down. Do not spray at an angle as this will lead to paint runs on the surface.

  • Page 12: Maintenance

    Never start or stop the spray gun while it is aimed at the surface to be sprayed. Evenly control the speed of movement of the spray gun. A fast speed of movement over the surface will give a thin coat and a slow speed will give a heavy coat.

  • Page 13: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Always remember to disconnect from the mains supply before clean- ing the spray gun or paint container. It is essential that the spray gun is cleaned thoroughly after ev- ery use. Failure to clean it will almost certainly result in blockages and it may not operate when you next come to use it! The guaran- tee does not cover cleaning a sprayer that has not been properly cleaned by the user.

  • Page 14: Troubleshooting

    This will lubricate the piston and cylinder. If your spray gun should require extra internal cleaning, it may be necessary to disassemble it. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available.
  • Page 15 Atomization is not good. - Volume adjustment is - Adjust. not correct. - Check viscosity of the - Paint too thick paint. Over painting. - Spray gun not clean, or - Disassemble spray gun not lubricated resulting in and,clean with thinner piston being stuck in cylinder - Adjust the volume - Too much paint...
