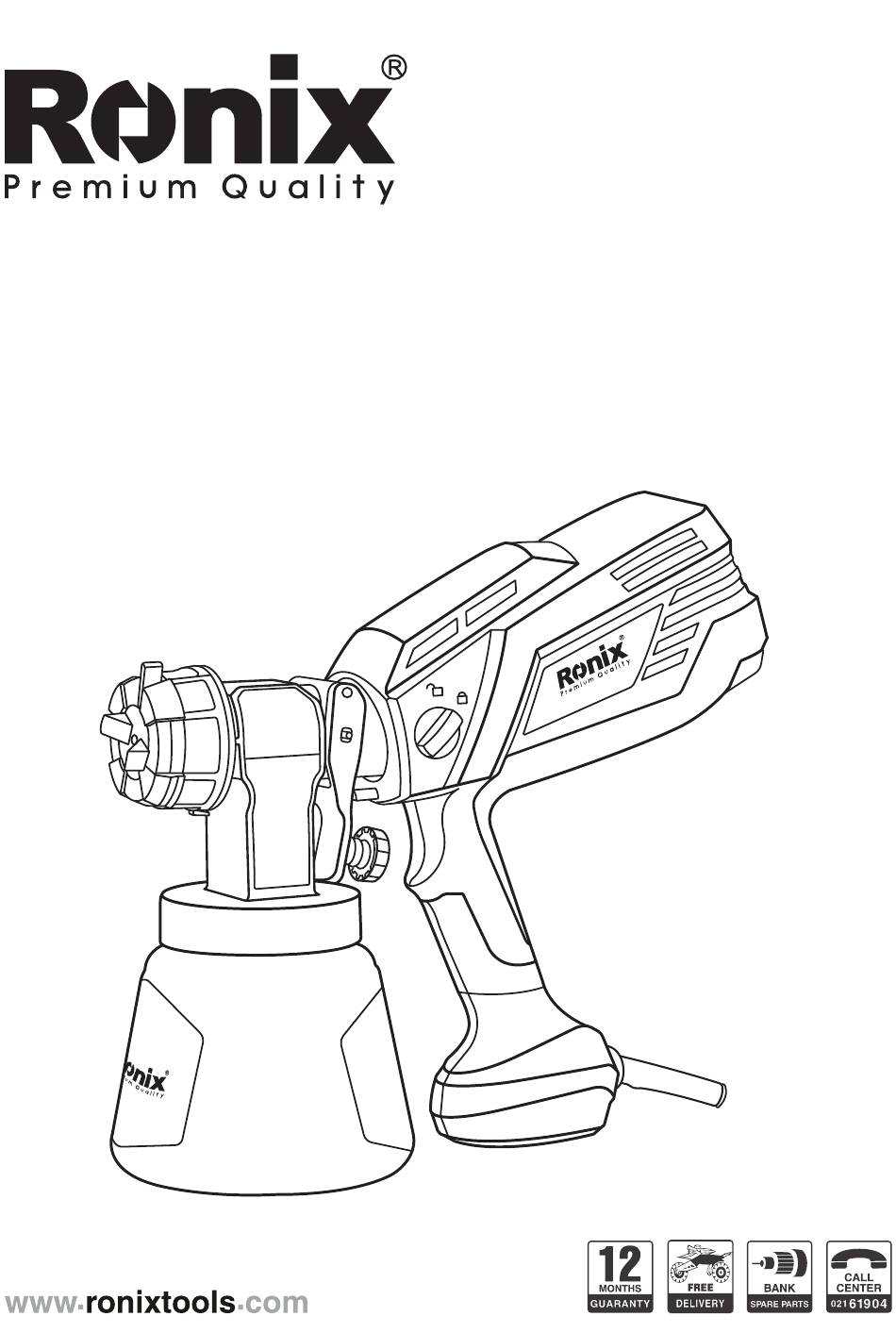

  • Page 1 HVLP ELECTRIC SPRAY GUN 600W 1360...

  • Page 2: Specification

    Painting System HVLP Nozzle Size 2.6mm Air Pressure 22Kpa Power 600W Voltage 220-240V Supplied in Ronix Color box Paint Reservior 1000ml Frequency 50-60Hz "1* viscosity cup 1*cleaning needle 1*cleaning Includes brush 3* nozzles: 2.2/1.8/1.5mm" PART LIST Union nut Jet width...

  • Page 3: Explanation Of Symbols Used

    Please read the Operating Manual carefully and observe the safety information before starting the device. Store the Operating Manual in a safe place close to the product in case it needs to be used by someone else. EXPLANATION OF SYMBOLS USED This symbol indicates a potential danger for you or for the device.
  • Page 4 Keep children and other persons away when using the power tool. You can lose control of the tool if you are distracted. ELECTRICAL SAFETY The tool plug must fit into the socket. The plug may not be modified in any form. Do not use adaptor plugs together with protective-earthed tools.
  • Page 5 off before you connect it to the power supply, pick it up or carry it. Accidents can occur if you carry the power tool while your finger is on the switch or if you connect the power tool to the power supply which it is on.

  • Page 6: Safety Instructions For Spray Guns

    repaired before using the tool. Many accidents have their origin in power tools that have been maintained badly. Use the power tool, accessories, insert tools, etc. in accordance with these instructions and in a fashion specified for this special tool type. Take the working conditions and the activity to be carried out into consideration.

  • Page 7: Residual Risks

    RECOMMENDATION: Wear a breathing mask and safety glasses when spraying. CAUTION! -Never point the spray gun at yourself, at other people or at animals. - When working with the tool indoors as well as outdoors ensure that no solvent vapors are sucked in by the spray gun. - When working outdoors, be aware of the wind direction.

  • Page 8: Preparation Of The Coating Material

    PREPARATION OF THE COATING MATERIAL Fill test cup then Hold up and measure the time in seconds until the liquid empties out. This time is called “Runout Time in Seconds”. NOTE: Stir the spraying material thoroughly before measuring and fill into the canister.
  • Page 9 ASSEMBLY/ DISASSEMBLY OF THE SPRAY GUN For assembly, insert the spray attachment into the main body. Push the lock knob down and then turn the knob to the lock point. To remove the spray attachment, turn the knob to the unlock point, detach the spray attachment from the main body.

  • Page 10: Adjusting The Desired Spray Setting

    - Put the machine down only on a level, clean surface. Otherwise the machine could tip over! ADJUSTING THE DESIRED SPRAY SETTING Three different spray jet settings can be chosen on the spray gun, depending on the application and target object. WARNING! Danger of injury! Never pull the trigger guard while adjusting the air cap.

  • Page 11: Adjusting The Material Volume

    ADJUSTING THE MATERIAL VOLUME Set the material volume by turning the regulator on the trigger guard of the spray gun.(Fig.5)  - turn to the left lower material volume  + turn to the right higher material volume Fig. 5 SPRAY TECHNIQUE - The spray result depends heavily on the smoothness and cleanliness of the surface to besprayed.

  • Page 12: Taking Out Of Operation

    INCORRECT : - Heavy spray fog build-up, uneven surface quality. (Fig. 7) 3.20cm Fig. 7 - Move the spray gun evenly cross-wise or up-and-down, depending on the spray pattern setting. - An even movement of the spray gun results in an even surface quality. - When coating material builds up on the nozzle (A) and air cap (B).

  • Page 13: Cleaning The Product

    TRANSPORTATION CAUTION! Full containers have to be closed tightly when transported in the container. Do not lay the case on its side if it contains full containers of paint. CLEANING THE PRODUCT In order to ensure smooth operations, the machine has to be cleaned thoroughly every day.
  • Page 14 WARNING! - When cleaning devices with flammable solvents, disconnect the device from the mains supply and clean thoroughly with a brush and cloth. Before starting the device up again, ensure that all traces of solvents are removed thoroughly. Allow the cleaned parts to dry completely. 5- Connect spray attachment and main body.

  • Page 15: Maintenance

    11- Clean the outside of the container with a cloth soaked in solvent or water. MAINTENANCE WARNING! Never operate the machine without the air filter; dirt could be sucked in and interfere with the function of the machine. Disconnect plug before changing parts.
  • Page 16 • Viscosity of coating material too  high Thin  • Material volume too large Material Turn material volume volume adjusting screw turned too adjusting screw to the Atomization too far to the right (+) left (-) coarse  • Nozzle contaminated Clean ...
