HVLP TROLLEY SPRAY GUN
1375T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1375T and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix 1375T

Summary of Contents for Ronix 1375T

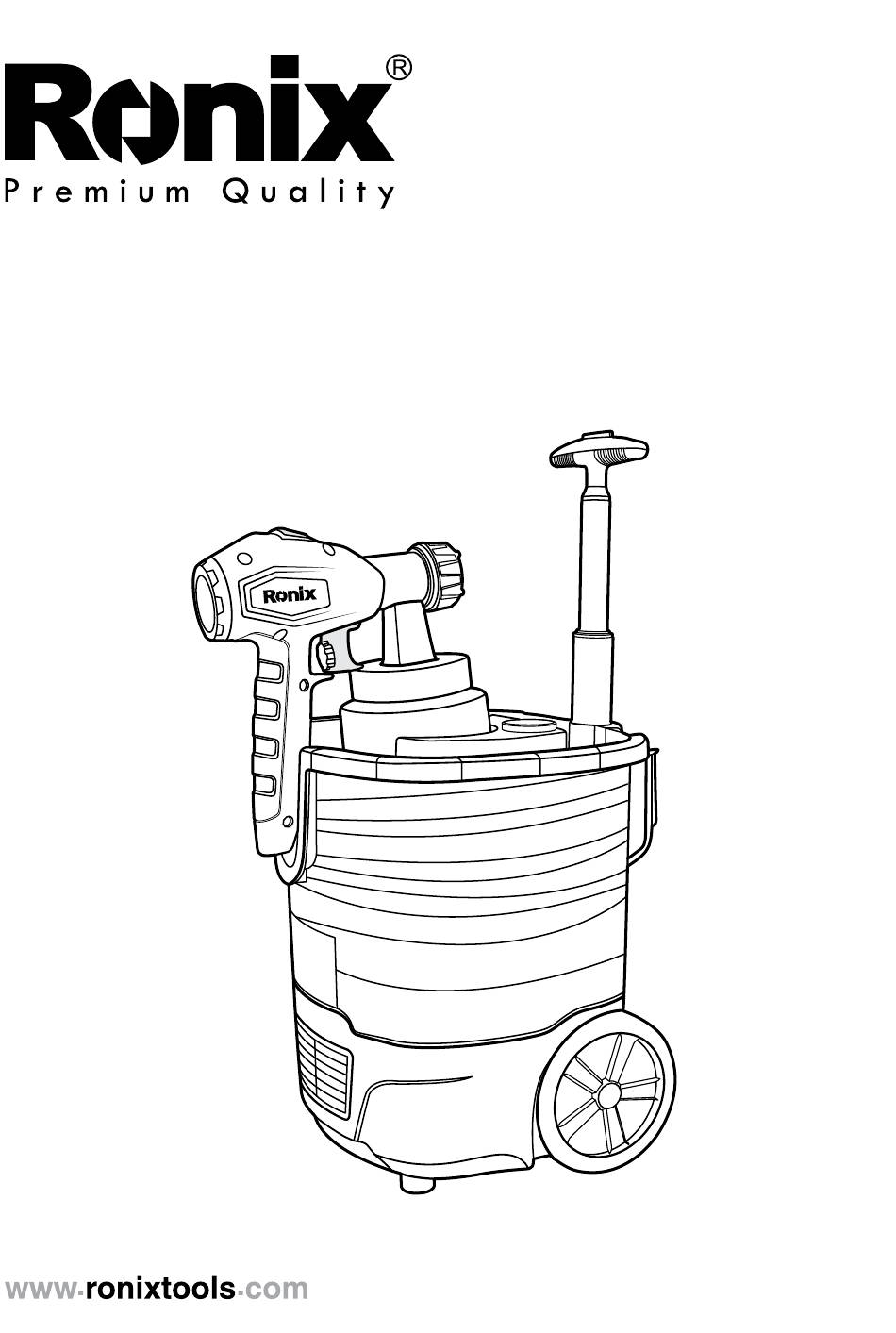

  • Page 1 HVLP TROLLEY SPRAY GUN 1375T...

  • Page 2: Specifications

    SPECIFICATIONS Model 1375T Power 750W Frequency 50Hz Voltage 220V Painting System HVLP Paint Reservior 800ml Max. Viscosity 60din/sec Max. Flow 800ml/min Nozzle 1.8mm, 2.6mm Weight 3.2kg (1) Viscosity measuring cup, (1) 2.6mm Includes nozzle, (1) 3m hose PARTS LIST Lock Button...

  • Page 3: Coating Materials Not Suitable For Use

    COATING MATERIALS SUITABLE FOR USE Water - and solvent-based paints, finishes, primers, 2-component paints, clear finishes, automotive finishes, staining sealers and wood sealer-preservatives. COATING MATERIALS NOT SUITABLE FOR USE Wall paints (emulsion paints) etc., alkali and acidic paints. GENERAL SAFETY INSTRUCTIONS The following symbols are used in these instructions for use: Denotes risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instructions in this manual.

  • Page 4: Safety Instructions For Spray Guns

    SAFETY INSTRUCTIONS FOR SPRAY GUNS - You may only spray coating materials such as paints, varnishes, glazes, etc. with a flashpoint of 21°C (32°C in UK) and higher without additional warning. (German classification of coating material is hazard classes A II and A III, see material tin.) - The device may not be used in workplaces covered by the explosion-protection regulations.

  • Page 5: Residual Risks

    - Do not lay the spray gun. RESIDUAL RISKS: Even when the power tool is used as prescribed it is not possible to elimi- nate all residual risk factors. The following hazards may arise in connec- tion with the power tool’s construction and design: - Damage to lungs if an effective dust mask is not worn.
  • Page 6 NOTE: stir the spraying material thoroughly before measuring and fill into the canister. Material Runout Time (seconds) Oil enamel 25-45 Oil based primer 30-50 Varnish 20-55 Lacquer / lacquer sanding 25-40 sealer Oil stain No thinning required Clear sealer No thinning required Polyurethane No thinning required Material flash point must be 70°F (21°C) or higher.
  • Page 7 d)Adjust the spray setting on the spray gun. Three different spray jet settings can be chosen on the spray gun, depending on the application and target object. SETTING Horizontal Round Vertical e) Push the ON / OFF switch on the machine and start painting. f) Adjusting the Material Volume Set the material volume by turning the regulator knob on the trigger.

  • Page 8: Spray Technique

    SPRAY TECHNIQUE - The spray result depends heavily on the smoothness and cleanliness of the surface to be sprayed. Therefore the surface should be carefully prepared and kept free of dust. - Cover all surfaces not to be sprayed. - Cover screw threads or similar parts of the target object. - Correct (Fig.
  • Page 9 from the nozzle is clear. 7) Turn the machine off. 8) Then empty the container completely. Always keep the container seal free of coating material residue and check for damage. 9) Press down the quick release button and pull out the front part of the spray gun.

  • Page 10: Maintenance

    MAINTENANCE CHANGE THE AIR FILTER Change the air filter if it is soiled. Release the cover fastening from the machine, place the air filter in the cover. Push the cover back onto the machine. WARNING! Never operate the machine without the air filter; dirt could be sucked in and interfere with the function of the machine.

  • Page 11: Environmental Protection

    Twist the hose Cord Slot onto the holder Spare Nozzle A) Put the sprayer in the base. B) Press down the “PUSH” button and extend the pull rod. Move the unit with wheels. Shorten the pull rod by press down the “PUSH” but- ton again and shorten the rod.

  • Page 12: Correction Of Malfunctions

    CORRECTION OF MALFUNCTIONS PROBLEM CAUSE REMEDY No coating material Nozzle clogged Clean emerges from the nozzle Feed tube clogged Clean Material volume setting Turn to the upside (+) turned too far to the Insert dowside(-) Tighten container Feed tube loose Thin the paint No pressure build-up in container...
