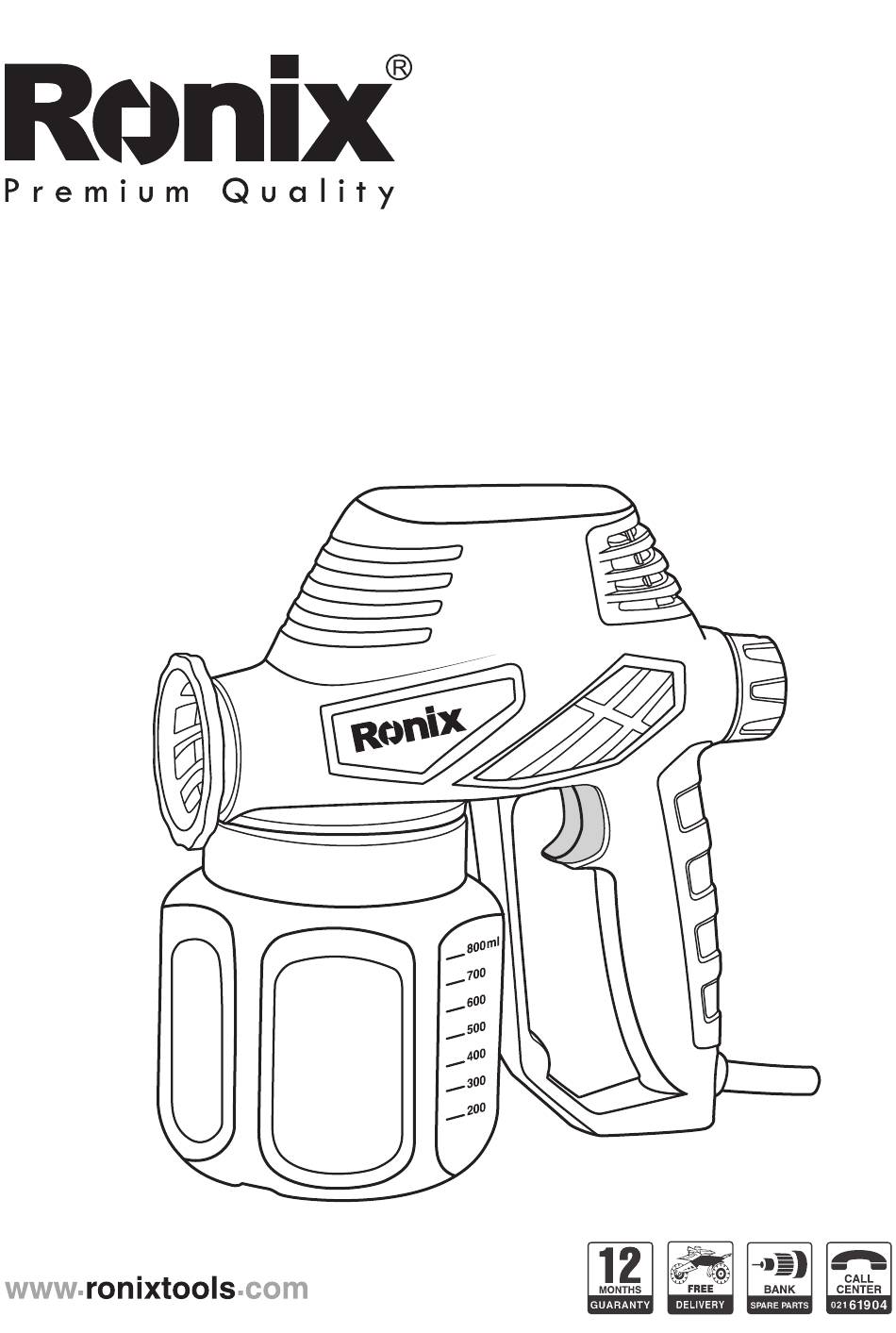

- Page 1 SPRAY GUN 1311...
-
Page 2: Specifications
SPECIFICATIONS Model 1311 Rated power input 110W Voltage 220V Frequency 50Hz Maximum nozzle flow rate 300ml/min Container capacity 800ml PARTS LIST Motor housing Spray basket nozzle Output control Trigger switch Nozzle wrench Handle Viscosity cup Paint container Check the machine, loose parts and accessories for transport damage. -
Page 3: General Safety Instructions
SAFETY INSTRUCTIONS GENERAL SAFETY INSTRUCTIONS The following symbols are used in these instructions for use: Denotes risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instructions in this manual Denotes risk of electric shock. Wear protective gloves Wear a dust mask. - Page 4 b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool.
- Page 5 hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
-
Page 6: Safety Instructions For Spray Guns
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. -
Page 7: Residual Risks
known. - Before working on the spray gun remove the power plug from the socket. - Do not use the spray guns to spray flammable substances.The spray guns are not to be cleaned with flammable solvents which have a flashpoint under 21°C. - Caution against dangers that can arise from the sprayed substance and observe the text and information on the containers or the specifications given by the substance manufacturer. - Page 8 managed and properly maintained. WARNING! This power tool produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.
- Page 9 THINNING Always remember to disconnect from the mains supply before filling the paint container with spray able material. Most paints are supplied ready for brush application and will need to be thinned before they are suitable to be sprayed. Follow the manufacturer’s advice on thinning the paint when used with a spray gun.
-
Page 10: Spraying Techniques
SPRAYING TECHNIQUES To obtain the best results, keep your spray gun level and parallel to the surface at all times. Keep the nozzle 25 - 30 cm from the surface and spray evenly from side to side or up and down. Do not spray at an angle as this will lead to paint runs on the surface. -
Page 11: Cleaning And Maintenance
drying time recommendations before applying a second coat. When spraying small areas, keep the output control on a low setting. This will avoid using too much paint and prevent overspray. Where possible, avoid stopping and starting when spraying an object. This can lead to too much, or not enough paint being applied. - Page 12 The following action must be taken after every use: 1- Empty any remaining material from the container. 2- Clean the container thoroughly with the thinner that was used. 3- Pour some thinner into the container and spray through the spray gun until only clean thinner is coming out of the nozzle.
- Page 13 Malfunction Cause Solution Motor hums but does not - Worn swirl head - Replace swirl head. spray or irregular spraying. - Pick up pipe not in - Re-adjust pick up pipe. the right position - Clean with thinner. - Blocked pick up pipe - Clean nozzle.
- Page 14 Motor louder - Spray gun not clean, or not - Disassemble spray gun than normal. lubricated, resulting in piston and clean with thinner. being stuck in cylinder No spray, no sound. No electricity Check power supply Operating sound not right Poor output adjustment Re-adjust Not enough paint in the...
