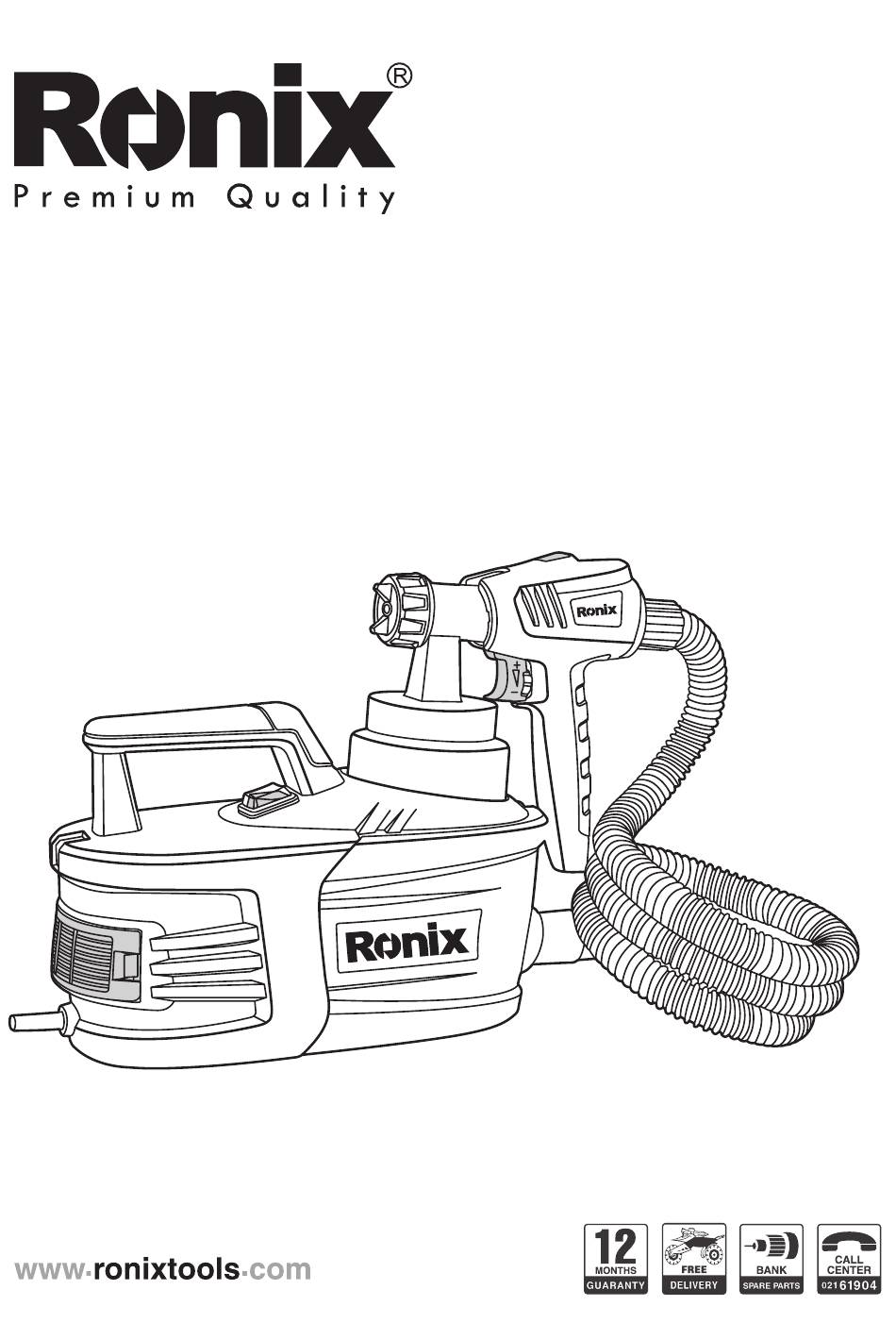

- Page 1 HVLP FLOOR BASED SPRAY GUN 1395...
-
Page 2: Specifications
SPECIFICATIONS Model 1395 Voltage 220-240V Rated Power input 950W Container capacity 800ml Sound pressure level : 72.93dB(A), K : 3,0 dB(A) Sound power level : 83.93dB(A), K : 3,0 dB(A) Vibration emission is below a:0.537 m/s , K: 1,5 m/s... -
Page 3: For Safe Operations
WARNING! The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used. There is the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the... -
Page 4: Personal Safety
any way. Do not use any adapter plugs which earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Guard against electric shock. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. - Page 5 on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly.
-
Page 6: Additional Safety Instructions
with sharp cutting edges are less likely to bind and are easier to control. g) Use the right tool. Do not force small tools or attachments to do the job of a heavy duty tool. Do not use tools for purpose not intended; for example, do not use circular saws to cut tree limbs or logs. - Page 7 during use. - CONSIDER WORK AREA ENVIRONMENT -Do not use spray guns where there is a risk of fire or explosion. - BEWARE OF ANY HAZARD -Beware of any Hazard by the material being sprayed and consult the markings on the container or the information supplied by the manufacturer.
-
Page 8: Preparing For Use
PREPARING FOR USE COATING MATERIALS Coating Materials Suitable for Use Solvent-based and water-soluble lacquer paints Mordants, glazes, impregnations, clear varnishes, synthetic enamels, coloured paints, alkyd resin varnishes, primers, radiator paints, anti-rust paints, spe- cial-effect paints, textured paints. Coating Materials Not Suitable for Use Materials that contain highly abrasive components, caustic solutions and acidic coating substances. - Page 9 ATTACH CARRYING BELT Attach the belt to the fixer on the main housing adjust a suitable length easy for carrying. ASSEMBLE PICKUP TUBE When spraying objects overhead, turn suction tube back, and turn clockwise to fix the container. When spraying horizontal surfaces, turn suction tube forward, and turn clockwise to fix the container.
- Page 10 SPRAY PATTERN SETTINGS Three different spray jet settings can be chosen on the spray gun, depending on the application and target object. IMPORTANT: The air cap only can be turned at an angle. Do not force. Horizontal Round Vertical Horizontal: For large vertical surface Round: For corner and small surface Vertical: For large horizontal surface WARNING!
- Page 11 SWITCH ON “1” swith on, “0” switch off. SPRAY VOLUME SETTING Reduce or increase the spray volume by turning the knob. NOTE: A coarse pattern will get when setting at high volume if working with thin material. Always test the setting on scrap before applying material to the surface.
-
Page 12: After Use
A) Evenly move B) Clean the paint build on the nozzle and cap AFTER USE 1) Unplug the power plug. Turning open the container and pulling the trigger guard and letting the paint into the original paint container. 2) Divide the spray gun. Press down the unlock button downwards. Pull out the sprayer. -
Page 13: Maintenance
Pay attention to the rib and should be fitted in the slot. CAUTION: Never clean seals, nozzle or air holes of the spray gun with metal objects. The seal parts are only solvent-resistant to a limited extent. Do not immerse in solvent, only wipe. WARNING! Never hold the spray gun MOTOR part under water or immerse it into liquids. -
Page 14: Environmental Protection
ENVIRONMENTAL PROTECTION The appliance and accessories should be recycled in an environ- mentally friendly way. Do not dispose of the appliance with household waste. Support environmental protection by taking the appliance to a local collection point or obtain information from a specialist retailer. CORRECTION OF MALFUNCTIONS PROBLEM CAUSE...
