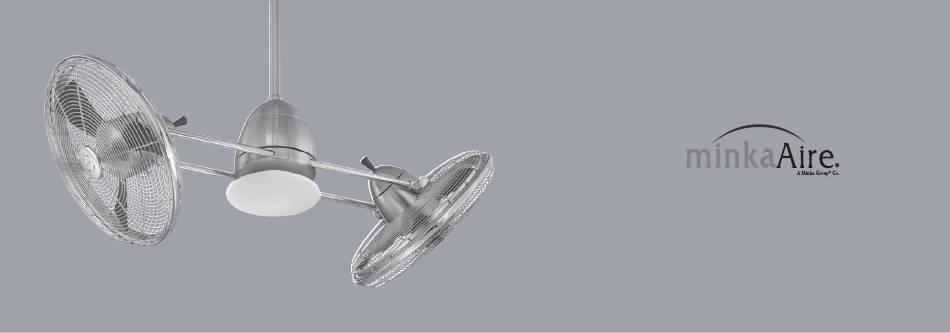

- Page 1 GYRO U.S. Patents: 6,832,902; 7,183,680; 7,229,255 INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 This product is protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws. ©2022 Minka Lighting, LLC. Manual design and all elements of manual design are protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
- Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
- Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES..................INSTALLING THE LIGHT BULB AND GLASS SHADE......PACKAGE CONTENTS..............ADJUSTING THE TILT ANGLE................ INSTALLING THE FAN..............OPERATING YOUR REMOTE CONTROL/WALL TRANSMITTER... HANGING THE FAN................. CARE OF YOUR FAN..................ELECTRICAL CONNECTIONS............TROUBLESHOOTING..................INSTALLING THE WALL TRANSMITTER......... SPECIFICATIONS....................FINISHING THE INSTALLATION..........1151 W. -
Page 6: Safety Rules
SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan motor assembly 12b. Wall plate w/2 mounting screws 2. Hanger bracket 13. Extra Wall Plate w/2 Mounting screws 3. Canopy 4. Canopy cover A. Mounting hardware: 5. -
Page 9: Installing The Fan
INSTALLING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. PARALLEL WOOD BRACE CEILING (MIN. 2" THICK) JOIST MOUNTING OPTIONS OUTLET CROSS BRACE If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. -
Page 10: Hanging The Fan
HANGING THE FAN Step 4. Carefully feed fan wires up through the downrod. (Fig. 8) WARNING: All of the parts, hardware and components such as the Thread the rod into the coupling, next line up holes and replace lock hanger bracket and hanger ball have been provided for your safety and the proper installation of your new ceiling fan. - Page 11 DOWNROD OUTLET BOX CANOPY DOWNROD CROSS PIN SET SCREWS COUPLING COVER CANOPY COVER HITCH LOCK HANGER SUPPLY DECORATIVE RING REGISTRATION BALL SET SCREW WIRES SLOT SET SCREWS DOWNROD HANGER BRACKET Fig. 10 Fig. 5 Fig. 6 Fig. 7 Fig. 8 HITCH PIN LOCK PIN Fig.
-
Page 12: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: The use of Dimming devices not compatible with ceiling Step 1. Insert Receiver into Hanger Bracket with the flat side of the Receiver facing the ceiling. (Fig. 12) fans will cause unwanted behavior including loud humming and will cause permanent damage to you fans electrical component. - Page 13 Step 3. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the receiver. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from the receiver.
- Page 14 INPUT AC120V OUTLET BOX WHITE (NEUTRAL) BLACK (HOT) WHITE GREEN OR BARE AC SUPPLY COPPER (GROUND) BLACK ("AC IN L") BLACK WHITE ("AC IN N") RECEIVER BLACK ("TO MOTOR L") WHITE ("TO MOTOR N") GRAY GROUND (CONNECT TO GROUND- (FOR CENTER MOTOR) GROUND WIRE ON (GREEN) HANGER BRACKE...
-
Page 15: Installing The Wall Transmitter
INSTALLING THE WALL TRANSMITTER WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR. Step 1. Remove the existing wall plate and switch from the wall outlet box. Step 2. -
Page 16: Finishing The Installation
FINISHING THE INSTALLATION OUTLET BOX Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one half a turn from the screw head. HANGER BRACKET Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes. -
Page 17: Installing The Light Bulb And Glass Shade
INSTALLING THE LIGHT BULB AND GLASS SHADE WARNING: Shut of the power supply before removing or replacing lamp. In handling of LED bulb, care should be taken not to touch it with your bare hands. Oil residue will shorten the life of the LED bulb. If you accidentally come into contact, wipe thoroughly with a clean, lint-free, cotton cloth. Allow the bulb to cool off for 10 minutes before changing the bulb. - Page 18 To install the metal light cap follow Step 2. above. To remove the metal light cap, you must first press and then turn counterclockwise, the custom built in spring mechanism inside the light plate will push the metal light cap out of the light plate. (Fig. 18) E11 4W LED BULB METAL...
-
Page 19: Adjusting The Tilt Angle
ADJUSTING THE TILT ANGLE Step 1. Pull the "PULL" knob out to unlock the fan, tilt the fan body to desired location, push back the "PULL" knob to lock the fan. (Fig. 19) Fig. 19... -
Page 20: Operating The Remote Control/Wall Transmitter
OPERATING THE REMOTE CONTROL/WALL TRANSMITTER Restore Power to Ceiling Fan. instructions apply to ceiling fans that feature a DOWN D. OFF-ON Slide Button (Wall Control Fans Only) light ( button) only or ceiling fans that feature an UP This button turns the power Off and On to the Fan and Buttons: Light(s). - Page 21 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. Warm Weather (fans tilted dowards) A DOWNWARD airflow creates a cooling effect as shown in Figure 20. This allows you to set your air conditioner on a warmer setting without affecting your comfort.
-
Page 22: Care Of Your Fan
CARE OF YOUR FAN 4. Use a lint free lightly damp cloth or duster to remove dust from the Here are some suggestions to help maintain your fan. blades. 1. Because of the fan's natural movement some connections may become 5. -
Page 23: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers. - Page 24 SYMPTOM SYMPTOM Fan Wobble Fans/Light Turn On and Off Unexpectedly SOLUTION SOLUTION NOTE: All blade sets are grouped by weight. This is caused by interference, Please see "Frequency interference" for steps to change the frequency. Make sure outlet box is secured to building structure, if necessary use the wood screws provided to further secure outlet box to joist.
- Page 25 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.
-
Page 26: Specifications
SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts N.W. G.W. C.F. They do not include amps and wattage used by the light(s). 0.571 50.26 18.10 6.004' 13.98 14" High 0.714 82.39 1322... - Page 27 PERFORMANCE AND ENERGY INFORMATION FAN SPEED AIRFLOW POWER USE AIRFLOW EFFICIENCY (CFM)* (Watts) (CFM/Watt) 3355 50.26 High 4709 82.39 Estimated Ceiling fan airflow is measured in cubic feet per minute (CFM). Airflow Yearly Energy Cost 4,075 Power use is measured in watts. To maximize energy savings: •...
