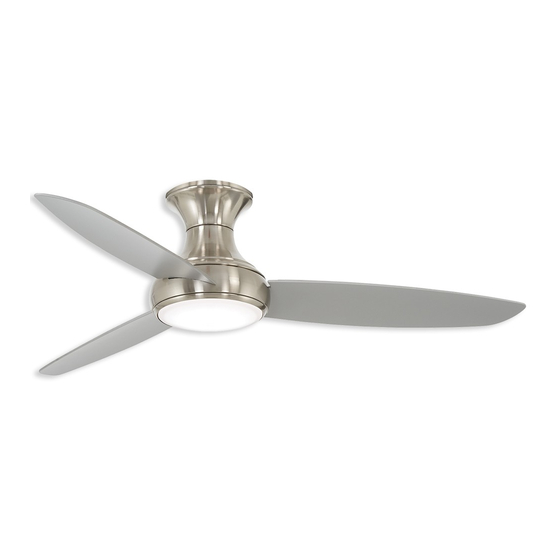

  • Page 1 CONCEPT III INSTRUCTION MANUAL WARRANTY CERTIFICATE...
  • Page 2 ©2020 Minka Lighting Inc. Manual design and all elements of manual design are protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
  • Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
  • Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.
  • Page 5: Table Of Contents

    CONTENTS SAFETY RULES..................INSTALLING THE LED LIGHT KIT ............PACKAGE CONTENTS..............INSTALLING THE GLASS SHADE ............INSTALLING THE MOUNTING BRACKET......OPERATING THE REMOTE CONTROL..........ELECTRICAL CONNECTIONS............ENJOY YOUR SMART CEILING FAN ..........FINISHING THE INSTALLATION..........CARE OF YOUR FAN................BLADE INSTALLATION..............TROUBLESHOOTING................
  • Page 6: Safety Rules

    SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
  • Page 7 NOTE: NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
  • Page 8: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Fan Blades (3) A. Mounting hardware: #10 x 1.5" Wood screws (2 PCs.) 2. Mounting bracket #8 x 3/4" Machine screws (2PCs.) 3. Decorative ring Lock washers (2 PCs.) 4.
  • Page 9: Installing The Mounting Bracket

    INSTALLING THE MOUNTING BRACKET Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. WARNING: WARNING: All of the parts, hardware and components such as the hanger bracket and hanger ball have been provided for your safety and the proper installation of your new ceiling fan. The use of other parts, ®...
  • Page 10: Electrical Connections

    ELECTRICAL CONNECTIONS Step 1. Motor to receiver electrical connections: Be sure to snap together the 2-PIN, 4-PIN connectors and sansor wire connector from the receiver and fan. (Fig. 3 & 4) WARNING: WARNING: To avoid possible electrical shock be sure electricity is turned off at the main fuse or breaker box before wiring.
  • Page 11 OUTLET BOX GREEN OR BARE FREQUENCY COPPER (GROUND) GREEN MOUNTING (RECEIVER) RECEIVER BRACKET GREEN 1 2 3 4 5 1 2 3 4 5 (MOUNTING RECEIVER BRACKET) CONNECTORS Fig. 2 Fig. 3 Fig. 4...
  • Page 12: Finishing The Installation

    FINISHING THE INSTALLATION Step 1. Loosen two of the four screws from the mounting SCREWS bracket and remove the other two. (Fig. 5) MOUNTING BRACKET Step 2. Remove the motor assembly from the mounting bracket hook and engage the key holes to the two screws previously loosened.
  • Page 13: Blade Installation

    BLADE INSTALLATION THE FOLLOWING OPERATION MUST BE ACCOMPLISHED BEFORE INSTALLING THE GLASS SHADE. Step 1. Insert the blades into the motor housing blade slots, push blade until it stops. You should be able to hear the inside safety pin drop into the blade hole to secure the blade in place. (Fig. 6) CAUTION: CAUTION: Re-check each blade to make sure all blades are secured to the motor by holding the blade from the tip and gently pulling it outwards.
  • Page 14 BLADE REMOVAL BLADE TOOL REMOVAL TOOL BLADE BLADE Fig 7...
  • Page 15: Installing The Mounting Plate

    INSTALLING THE MOUNTING PLATE The fan motor assembly is shipped with motor support plate to prevent movement during transportation. Remove the motor support plate from the mounting ring and discard. (Fig. 8) Step 1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Step 2.
  • Page 16: Installing The Led Light Kit

    INSTALLING THE LED LIGHT KIT NOTE: NOTE: Before starting installation, make sure power is turned off at the circuit breaker. CAUTION: CAUTION: The light source is designed for this specific application and can overheat if serviced by untrained personnel. If any servicing is required, the product should be returned to an authorized service facility for examination or repair.
  • Page 17: Installing The Glass Shade

    INSTALLING THE GLASS SHADE CAUTION: CAUTION: Before starting installation, make sure power is turned off at the circuit breaker. Raise the glass shade up against the mounting plate and secure it to the fan by turning the glass shade clockwise until snug. DO NOT OVERTIGHTEN. (Fig. 10) LED LIGHT KIT GLASS SHADE...
  • Page 18: Operating The Remote Control

    OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control only: Install two AAA 1.5 volt batteries (included). To prevent damage to transmitter remove the battery if not used for long periods of time. IMPORTANT: THIS REMOTE CONTROL & DC FAN MOTOR ARE DESIGNED TO PERFORM A ONE TIME SELF CALIBRATION TEST. THIS IMPORTANT: THIS REMOTE CONTROL &...
  • Page 19 NOTE: NOTE: The auto learning function will only NOTE: NOTE: The learning frequency function and self Turn the receiver power on after 5 seconds. mandate within 60 seconds when turning the calibration test will continue to retain the last fan’ s AC power ON. set frequency and calibration set even when the AC power is shut off.
  • Page 20 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE: NOTE: Wait for the fan to stop before reversing the direction of the blade rotation. Warm Weather (forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 11.
  • Page 21: Enjoy Your Smart Ceiling Fan

    ENJOY YOUR SMART CEILING FAN NOTE: NOTE: Before moving on to learning about your new smart ceiling fan, please be sure to test all your fans functionalities using your remote control first. To enjoy all the potential of your new ceiling fan. You’ll need to dowload the BOND HOME app.
  • Page 22: Care Of Your Fan

    CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 4. Use a lint free lightly damp cloth or duster to remove dust from the blades. 1. Because of the fan's natural movement some connections may become loose.
  • Page 23: Troubleshooting

    TROUBLESHOOTING SYMPTOM SYMPTOM Fan Sounds Noisy Fan will not start SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers.
  • Page 24 SYMPTOM SYMPTOM Fan Wobble Fans/Light Turn On and Off Unexpectedly SOLUTION SOLUTION NOTE: NOTE: All blade sets are grouped by weight. Because wood and This is caused by interference, Please see "Frequency interference" for plastic blades vary in density, the fan may wobble even though steps to change the frequency.
  • Page 25 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. NOTE: NOTE: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.
  • Page 26: Specifications

    SPECIFICATIONS These are typical readings. Your actual fan may vary. They Fan Size Speed Volts Amps Watts N.W. G.W. C.F. do not include amps and wattage used by the light(s). 0.055 2.50 9.53 2.59' 54" High 0.40 29.70...
  • Page 27 PERFORMANCE AND ENERGY INFORMATION FAN SPEED AIRFLOW POWER USE AIRFLOW EFFICIENCY (CFM)* (Watts) (CFM/Watt) 1637 2.50 High 6056 29.70 Ceiling fan airflow is measured in cubic feet per minute (CFM). Estimated Airflow Power use is measured in watts. To maximize energy savings: 3,985 Yearly Energy Cost •...
