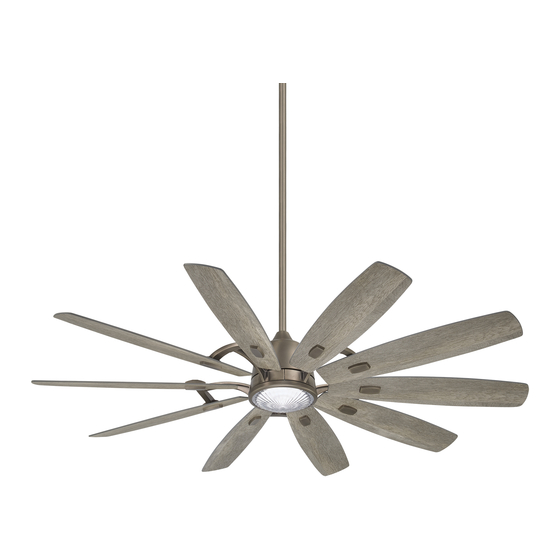

- Page 1 BARN INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 ©2019 Minka Lighting Inc. Manual design and all elements of manual design are protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
- Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
- Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES................... INSTALLING THE LED LIGHT KIT .............. PACKAGE CONTENTS................INSTALLING THE GLASS SHADE ............. INSTALLING THE FAN................OPERATING THE REMOTE CONTROL........... HANGING THE FAN................ENJOY YOUR SMART CEILING FAN............ELECTRICAL CONNECTIONS.............. CARE OF YOUR FAN..................FINISHING THE INSTALLATION............TROUBLESHOOTING................... -
Page 6: Safety Rules
SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE: NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 14. Balancing kit 1. Fan blades (10) 2. Hanger bracket A. Mounting hardware: 3. Canopy #10 x 1.5" Wood screws (2 PCs.) 4. Canopy cover #8 x 3/4"... -
Page 9: Installing The Fan
INSTALLING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. PARALLEL WOOD BRACE CEILING (MIN. 2" THICK) MOUNTING OPTIONS JOIST CROSS BRACE OUTLET If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. -
Page 10: Hanging The Fan
HANGING THE FAN Step 4. Carefully feed fan wires and safety cable up through the downrod. (Fig. 8) Thread Downrod into the Coupling until the holes are WARNING: All of the parts, hardware and components such as the lined up and secure with the Lock Pin and Hitch Pin previously removed, hanger bracket and hanger ball have been provided for your safety and tighten Set Screws. - Page 11 SAFETY CABLE DOWNROD OUTLET BOX CANOPY DOWNROD CROSS PIN COUPLING COVER CANOPY SET SCREWS COVER HITCH LOCK SAFETY HANGER SUPPLY CABLE BALL SET SCREW WIRES SET SCREWS REGISTRATION DOWNROD SLOT HANGER BRACKET Fig. 5 Fig. 6 Fig. 7 Fig. 8 LOCK PIN HITCH PIN Fig.
-
Page 12: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: To avoid possible electrical shock be sure electricity is turned off at the main fuse or breaker box before wiring. ® NOTE: The Aire Control System for this DC motor fans is equipped with a learning FREQUENCY frequency function which has 32 code combinations to prevent potential interference from other remote units. - Page 13 Step 1. Motor to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the motor. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from the motor. Secure all wire connections with the plastic wire nuts provided.
-
Page 14: Finishing The Installation
FINISHING THE INSTALLATION OUTLET BOX Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one half a turn from the screw head. HANGER BRACKET Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow HANGER section of the key holes. -
Page 15: Attaching The Fan Blades
ATTACHING THE FAN BLADES Step 1. Attach the blade to the blade holders and blade medallions using the screws with lock washers as shown in Figure 14. Start a screw into the blade SCREWS WITH LOCK WASHERS holder, do not tighten. Repeat for the 2 remaining screws and washers. BLADE Step 2. -
Page 16: Installing The Mounting Plate
INSTALLING THE MOUNTING PLATE Step 1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Step 2. Place the key holes from the mounting plate over the 2 screws previously loosened from the mounting ring, turn mounting plate until it locks in place at the narrow section of the key holes. -
Page 17: Installing The Led Light Kit
INSTALLING THE LED LIGHT KIT NOTE: Before starting installation, make sure power is turned off at the circuit breaker. CAUTION: The light source is designed for this specific application and can overheat if serviced by untrained personnel. If any servicing is required, the product should be returned to an authorized service facility for examination or repair. -
Page 18: Installing The Glass Shade
INSTALLING THE GLASS SHADE Raise glass shade up against LED light kit and secure it to the fan by turning the glass shade clockwise until snug. DO NOT OVERTIGHTEN. (Fig. 17) GLASS SHADE Fig. 17... -
Page 19: Operating The Remote Control
OPERATING THE REMOTE CONTROL Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. IMPORTANT: THIS REMOTE CONTROL & DC FAN MOTOR ARE DESIGNED TO PERFORM A ONE TIME SELF CALIBRATION TEST. THIS TEST WILL IMPORTANT: THIS REMOTE CONTROL &... - Page 20 Note: The auto learning function will only shut off when the self calibration test has power after 30 seconds if interruption occurs. finished. The total self calibration test will last mandate within 60 seconds when turning the Please remove obstacles before re-set. about 6 minutes.
- Page 21 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE: To change the direction of the rotation of the blades the fan must be in operation mode. Warm Weather (forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 18.
-
Page 22: Enjoy Your Smart Ceiling Fan
ENJOY YOUR SMART CEILING FAN NOTE: Before moving on to learning about your new smart ceiling fan, please be sure to test all your fans functionalities using your remote control first. To enjoy all the potential of your new ceiling fan. You’ll need to dowload the BOND HOME app. Available on the Google and Apple Play Store. -
Page 23: Care Of Your Fan
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 4. Use a lint free lightly damp cloth or duster to remove dust from the blades. 1. Because of the fan's natural movement some connections may become loose. -
Page 24: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM Fan Sounds Noisy Fan will not start SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers. - Page 25 SYMPTOM SYMPTOM Fan Wobble Does not connect to WiFi home network. SOLUTION SOLUTION NOTE: All blade sets are grouped by weight. Because wood and If you are having trouble completing the Bond Home connection plastic blades vary in density, the fan may wobble even though with your ceiling fan, adjustments to your router settings may blades are matched.
- Page 26 SYMPTOM Fans/Light Turn On and Off Unexpectedly SOLUTION This is caused by interference, Please see "Frequency interference" for steps to change the frequency.
- Page 27 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.
-
Page 28: Specifications
SPECIFICATIONS Fan Size Speed Volts Amps Watts N.W. G.W. C.F. These are typical readings. Your actual fan may vary. They do not include amps and wattage used by the light(s). 0.11 5.98 65" 14.70 17.04 3.54' High 0.68 50.02... - Page 29 PERFORMANCE AND ENERGY INFORMATION FAN SPEED AIRFLOW POWER USE AIRFLOW EFFICIENCY (CFM)* (Watts) (CFM/Watt) 3712 5.98 High 9155 50.02 Estimated Ceiling fan airflow is measured in cubic feet per minute (CFM). Airflow 6,603 Yearly Energy Cost Power use is measured in watts. To maximize energy savings: •...
