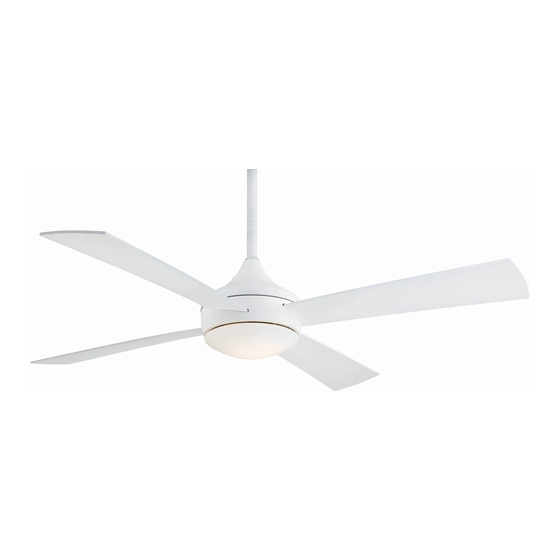

- Page 1 ALUMA WET INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 ©2019 Minka Lighting Inc. Manual design and all elements of manual design are protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
- Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
- Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES..................INSTALLING THE MOUNTING PLATE..........PACKAGE CONTENTS..............INSTALLING THE LED LIGHT KIT ............INSTALLING THE FAN..............INSTALLING THE GLASS SHADE ............. BLADE INSTALLATION ..............OPERATING THE REMOTE CONTROL..........HANGING THE FAN................. CARE OF YOUR FAN................ELECTRICAL CONNECTIONS............TROUBLESHOOTING................ -
Page 6: Safety Rules
SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE: NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Fan blades (4) A. Mounting hardware: 2. Blade support plates (4) #10 x 1.5 Wood screws (2 PCs.) 3. Hanger bracket #8 x 3/4" Machine screws (2PCs.) 4. -
Page 9: Installing The Fan
INSTALLING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. PARALLEL WOOD BRACE CEILING MOUNTING OPTIONS (MIN. 2" THICK) JOIST OUTLET CROSS BRACE If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. -
Page 10: Blade Installation
BLADE INSTALLATION Step 1. (Fig. 5) Remove the metal plate and upper cover by remove the screws from the SCREWS SCREWS motor. SCREWS WITH METAL METAL LOCK WASHERS PLATE PLATE Step 2. (Fig. 6) Insert the blade through the UPPER access window from the blade holder. -
Page 11: Hanging The Fan
HANGING THE FAN WARNING: WARNING: All of the parts, hardware and components such as the hanger Step 4. Carefully feed fan wires up through the downrod. (Fig. 11) bracket and hanger ball have been provided for your safety and the Thread Downrod into the Coupling until the holes are lined up and proper installation of your new ceiling fan. - Page 12 DOWNROD RUBBER COVER DOWNROD OUTLET BOX DOWNROD CROSS PIN CANOPY SET SCREWS HITCH CANOPY COVER COUPLING COVER LOCK HANGER REGISTRATION BALL SET SCREW SUPPLY SLOT SET SCREWS WIRES DOWNROD HANGER BRACKET Fig. 13 Fig. 8 Fig. 9 Fig. 10 Fig. 11 LOCK PIN HITCH PIN Fig.
-
Page 13: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: WARNING: To avoid possible electrical shock be sure electricity is turned Step 2. Motor to Receiver Electrical Connections: Connect the WHITE off at the main fuse or breaker box before wiring. wire from the fan to the WHITE wire marked "TO MOTOR N" from the Receiver. - Page 14 Step 3. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the receiver. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from the receiver.
- Page 15 OUTLET BOX WHITE (NEUTRAL) BLACK (HOT) GREEN OR BARE COPPER (GROUND) BLACK ("AC IN L") WHITE ("AC IN N") RECEIVER BLACK ("TO MOTOR L") WHITE ("TO MOTOR N") ORANGE (CONNECT TO GROUND- GROUND WIRE ON (FOR UPPER LIGHT) (GREEN) HANGER BRACKE IF NO HOUSE BLUE (FOR LIGHT) GROUND WIRE...
-
Page 16: Finishing The Installation
FINISHING THE INSTALLATION OUTLET BOX Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one half a turn from the screw head. HANGER BRACKET Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes. -
Page 17: Installing The Mounting Plate
INSTALLING THE MOUNTING PLATE Step 1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Step 2. Place the key holes from the mounting plate over the 2 screws previously loosened from the mounting ring, turn mounting plate until it locks in place at the narrow section of the key holes. -
Page 18: Installing The Led Light Kit
INSTALLING THE LED LIGHT KIT NOTE: NOTE: Before starting installation, make sure power is turned off at the circuit breaker. If you do not plan to install the light kit with your fan at this time, do not do not connect the wire connectors at step 2. -
Page 19: Installing The Glass Shade
INSTALLING THE GLASS SHADE Step 1. Raise glass shade up against bottom of fan housing and secure it to the fan by turning the glass shade clockwise until snug. DO NOT OVERTIGHTEN. (Fig. 20) NOTE: NOTE: The aluminum cover included with your fan is an option to replace the glass for the light in the event that you prefer not to use the light feature of your fan. -
Page 20: Operating The Remote Control
OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. instructions apply to ceiling fans that feature a DOWN D. - Page 21 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE: NOTE: Wait for the fan to stop before reversing the direction of the blade rotation. Warm Weather (Forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 21.
-
Page 22: Care Of Your Fan
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 4. Use a lint free lightly damp cloth or duster to remove dust from the blades. 1. Because of the fan's natural movement some connections may become loose. -
Page 23: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers. - Page 24 SYMPTOM SYMPTOM Fan Wobble Fans/Light Turn On and Off Unexpectedly SOLUTION SOLUTION NOTE: NOTE: All blade sets are grouped by weight. Because wood and This is caused by interference, Please see "Frequency interference" for plastic blades vary in density, the fan may wobble even though steps to change the frequency.
- Page 25 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. NOTE: NOTE: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.
-
Page 26: Specifications
SPECIFICATIONS These are typical readings. Your actual fan may Fan Size Speed Volts Amps Watts N.W. G.W. C.F. vary. They do not include amps and wattage used 0.216 13.16 by the light(s). 52" 8.70 10.01 1.691' High 0.436 50.02... - Page 27 PERFORMANCE AND ENERGY INFORMATION FAN SPEED AIRFLOW POWER USE AIRFLOW EFFICIENCY (CFM)* (Watts) (CFM/Watt) 1861 13.16 High 3864 50.02 Estimated Ceiling fan airflow is measured in cubic feet per minute (CFM). Airflow 2,925 Yearly Energy Cost Power use is measured in watts. To maximize energy savings: •...
