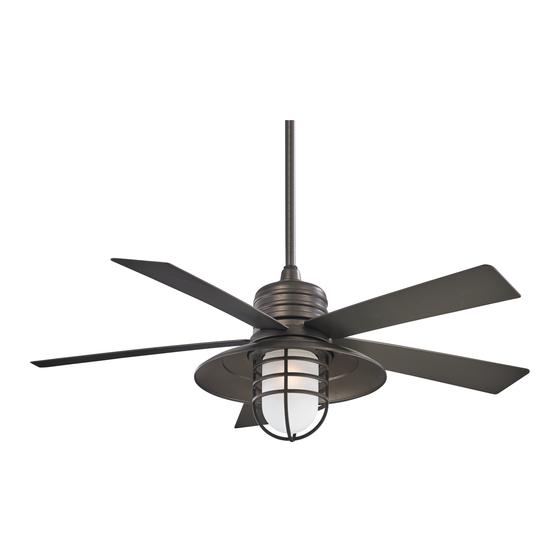

- Page 1 Rainman INSTRUCTION MANUAL WARRANTY CERTIFICATE INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 ©2022 Minka Lighting, LLC. Manual design and all elements of manual design are protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
- Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
- Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES..................BLADE INSTALLATION..................PACKAGE CONTENTS..............INSTALLING THE LIGHT KIT ................INSTALLING THE FAN..............OPERATING YOUR REMOTE CONTROL/WALL TRANSMITTER... HANGING THE FAN................. CARE OF YOUR FAN..................ELECTRICAL CONNECTIONS............TROUBLESHOOTING..................INSTALLING THE WALL TRANSMITTER......... SPECIFICATIONS....................FINISHING THE INSTALLATION..........1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267... -
Page 6: Safety Rules.................................................................................... 1 Blade Installation
SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE: NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
- Page 8 PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) 14. Balancing kit 2. Hanger bracket 15. E26 9W LED bulb 3. Canopy A. Mounting hardware: 4. Canopy cover #10 x1.5" Wood screws (2 PCs.) 5.
- Page 9 INSTALLING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. PARALLEL WOOD BRACE CEILING (MIN. 2" THICK) MOUNTING OPTIONS JOIST OUTLET CROSS BRACE If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers.
- Page 10 HANGING THE FAN WARNING: WARNING: All of the parts, hardware and components such as the Step 4. Carefully feed fan wires up through the downrod. (Fig. 8) hanger bracket and hanger ball have been provided for your safety and Thread the rod into the coupling, next line up holes and replace lock the proper installation of your new ceiling fan.
- Page 11 DOWNROD RUBBER COVER DOWNROD OUTLET BOX CANOPY DOWNROD CROSS PIN SET SCREWS HITCH COUPLING COVER CANOPY COVER LOCK HANGER SUPPLY REGISTRATION BALL SET SCREW WIRES SLOT SET SCREWS DOWNROD HANGER BRACKET Fig. 10 Fig. 5 Fig. 6 Fig. 7 Fig. 8 HITCH PIN LOCK PIN Fig.
- Page 12 ELECTRICAL CONNECTIONS WARNING: The use of Dimming devices not compatible with ceiling Step 1. Insert Receiver into Hanger Bracket with the flat side of the fans will cause unwanted behavior including loud humming and will Receiver facing the ceiling. (Fig. 12) cause permanent damage to you fans electrical component.
- Page 13 Step 3. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the receiver. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from the receiver.
- Page 14 INPUT AC120V OUTLET BOX WHITE (NEUTRAL) BLACK (HOT) WHITE GREEN OR BARE AC SUPPLY COPPER (GROUND) BLACK ("AC IN L") BLACK WHITE ("AC IN N") RECEIVER BLACK ("TO MOTOR L") WHITE ("TO MOTOR N") GROUND ORANGE (CONNECT TO GROUND- (FOR UPPER LIGHT) GROUND WIRE ON (GREEN) HANGER BRACKE...
- Page 15 INSTALLING THE WALL TRANSMITTER WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF E L E C T R I C C I R C U I T T O T H E T R A N S M I T T E R W A L L S W I T C H , D A M A G E T O T H E TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR.
- Page 16 FINISHING THE INSTALLATION Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one OUTLET BOX half a turn from the screw head. HANGER Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over BRACKET the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes.
- Page 17 BLADE INSTALLATION THE FOLLOWING OPERATIONS MUST BE ACCOMPLISHED BEFORE INSTALLING THE LIGHT KIT. Insert one fan blade into the blade slot on the motor housing and secure with the screws and washers. Securely tighten screws. Repeat process with other blades. (Fig. 17) SLOT BLADE RUBBER...
-
Page 18: Installing The Light Kit
INSTALLING THE LIGHT KIT WARNING: WARNING: Shut of the power supply before removing or replacing lamp. In handling of LED bulb, care should be taken not to touch it with your bare hands. Oil residue will shorten the life of the LED bulb. - Page 19 Step 3. (Fig.19) Place the Glass Shade into the glass frame and secure with three screws. Step 4. (Fig. 20) Install E26 1x9W LED bulb (included) into bulb GLASS SHADE socket. Step 5. (Fig. 20) Take the glass shade and glass frame assembly and place it over the light kit housing, secure it in place by tightening 4 screws from the light kit housing.
- Page 20 OPERATING THE REMOTE CONTROL/WALL TRANSMITTER Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. instructions apply to ceiling fans that feature a DOWN D.
- Page 21 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE: NOTE: Wait for fan to stop before changing the setting of the slide switch. Warm Weather (forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 21.
-
Page 22: Care Of Your Fan
CARE OF YOUR FAN 4. Use a lint free lightly damp cloth or duster to remove dust from the Here are some suggestions to help maintain your fan. blades. 1. Because of the fan's natural movement some connections may become 5. -
Page 23: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers. - Page 24 SYMPTOM SYMPTOM Fan Wobble Fans/Light Turn On and Off Unexpectedly SOLUTION SOLUTION NOTE: NOTE: All blade sets are grouped by weight. Because wood and This is caused by interference, change the code frequency from the plastic blades vary in density, the fan may wobble even though transmitter, and follow the instructions from Section 5 again to blades are matched.
- Page 25 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. NOTE: NOTE: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.
-
Page 26: Specifications
SPECIFICATIONS These are typical readings. Your actual fan may vary. They Fan Size Speed Volts Amps Watts N.W. G.W. C.F. do not include amps and wattage used by the light(s). 0.244 15.29 54" 12.54 14.90 3.52' High 0.485 57.16... - Page 27 PERFORMANCE AND ENERGY INFORMATION FAN SPEED AIRFLOW POWER USE AIRFLOW EFFICIENCY (CFM)* (Watts) (CFM/Watt) 1988 15.29 High 4824 57.16 Estimated Ceiling fan airflow is measured in cubic feet per minute (CFM). Airflow 3,495 Yearly Energy Cost Power use is measured in watts. To maximize energy savings: •...
