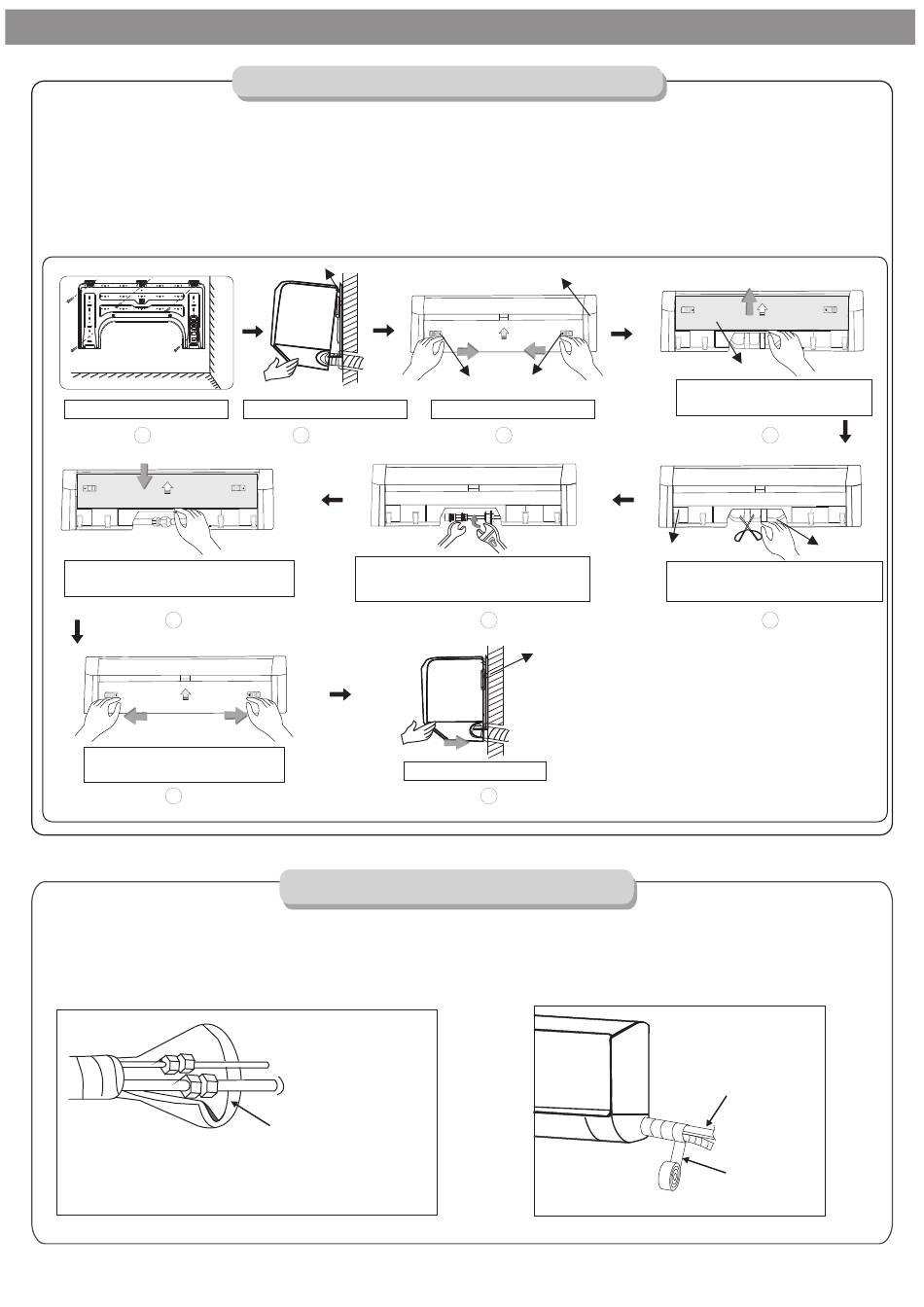

1.Mount the unit onto the installation plate
Hook the indoor unit onto the upper portion of the installation plate (Engage the two hooks at the rear top of the
indoor unit with the upper edge of the installation plate). Ensure that the hooks are properly seated on the installation
plate by moving it to the left and right.
2.How to attach the indoor unit
Hook the claws of the bottom frame to the mounting plate.
3.Then connect the pipe of indoor unit as follows:
Mounting plate
1
Push down the decorative plate and
fasten the buckle.
7
Push the slip buckle s , install the
decorative plate.
8
1. Use the insulation sleeve to wrap the joint part the indoor unit and the connection pipe, and then use insulating
material to pack and seal insulation pipe, to prevent generation of condensate water on the joint part.
2. Connect the water outlet with drain pipes, and make the connection pipe, cables, and the drain hose straight.
3. Use plastic cable ties to wrap the connecting pipes, cables and drain hose. Run the pipe sloping downward.
INDOOR UNIT INSTALLATION
Mount the Indoor Unit Mount the Indoor Unit
claws
Hang the indoor unit
2
Connect the connecting pipe
(refer to "Install the
section of this manual for instructions).
Push the indoor unit
Wrap the Piping
Insulate pipes
Front panel assy
Slip buckle
Push the slip buckle s
3
Front panel assy
Refrigerant Piping "
6
Mounting plate
9
-11-
Decorative plate
Push up the decorative plate
and remove it.
4
Base
Scissor
Cut off the middle structure of the
base to expose the connecting pipe.
5
Connecting Pipe,
Drain Hose
and Cables
Plastic Strap
