Introduction
Since 1991 the Danish company CIOKS has been providing guitar and bass players with reliable and
advanced power supplies dedicated for effect pedals. CIOKS SOL power supply is part of our Future
Power Generation range of professional power supplies and provides 5 isolated high current outlets for
pedals.
Features
•
Slim 1-inch profile (25,4mm) and low weight of only 0,4kg (0.9lb)
•
2-stage switch-mode power supply topology
•
Ultra-low noise achieved by multi-stage filtering and innovative regulation feedback system
•
5 isolated DC-outlets, 6W each (660mA at 9V on each outlet)
•
4 selectable voltages on each outlet (9, 12, 15 or 18V)
•
Individual status LED on each outlet and global status LED
•
Total maximum output power of 30W
•
Use anywhere in the world, universal mains input voltage 100-240V AC
•
Mounting hardware for Pedaltrain and Temple Audio boards is included
•
Compatible with CIOKS GRIP ver. 2.0 for drill-free Pedaltrain mounting
•
9 Flex cables included
•
Designed in Denmark, assembled in Poland
5-year worldwide warranty
Version 1.0.UG2

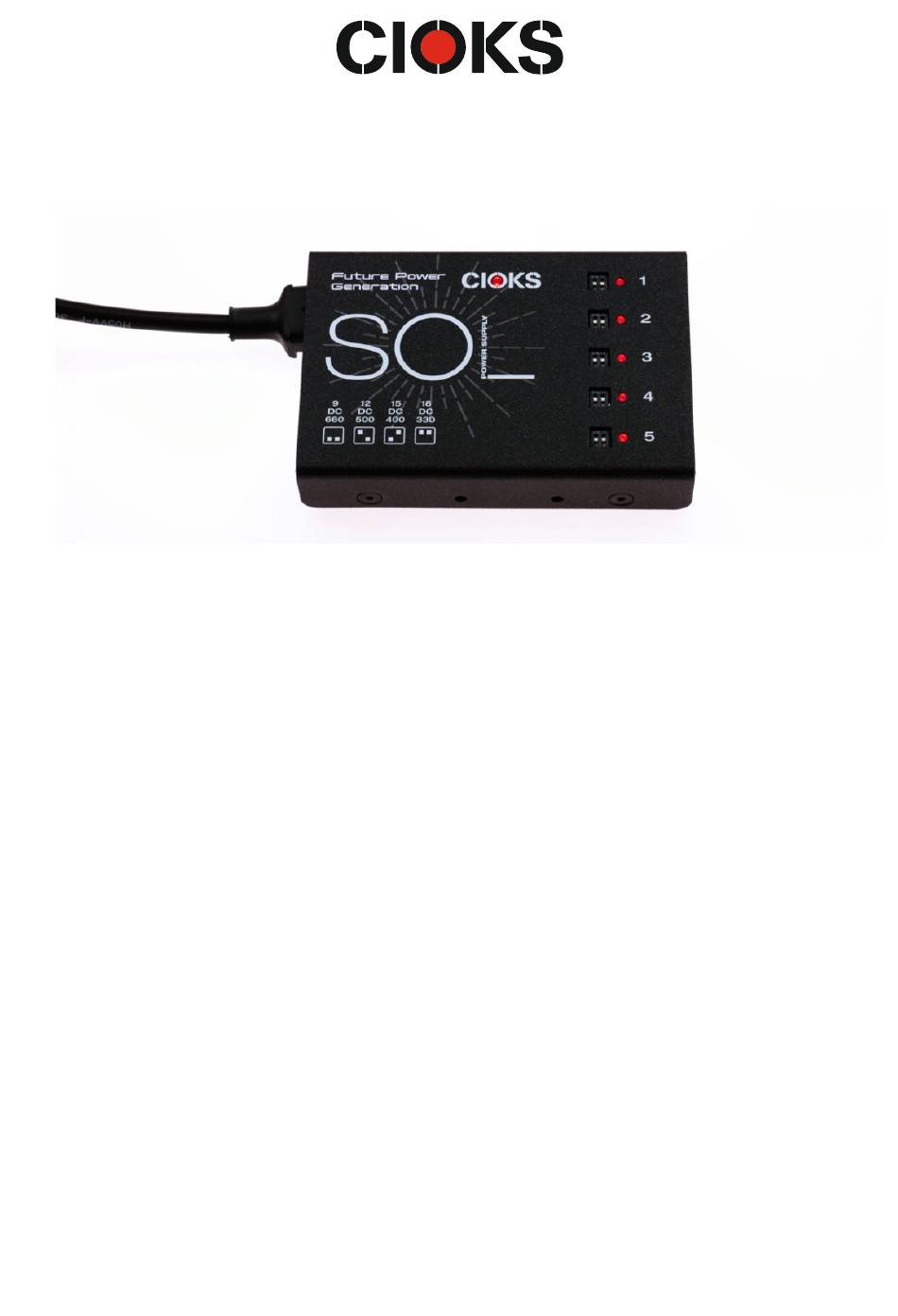

SOL
Power Supply for Effect Pedals
User's Manual
Version 1.0.UG2 – October 2024
October 2024
Advertisement
Related Manuals for CIOKS SOL
Summary of Contents for CIOKS SOL
- Page 1 Since 1991 the Danish company CIOKS has been providing guitar and bass players with reliable and advanced power supplies dedicated for effect pedals. CIOKS SOL power supply is part of our Future Power Generation range of professional power supplies and provides 5 isolated high current outlets for pedals.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Read all instructions in the user manual carefully before using SOL power supply CAUTION, RISK OF ELECTRIC SHOCK • High Voltage Warning: There are dangerous voltages present within the power supply during operation whenever it is connected to the AC mains power. - Page 3 The operation of the SOL is maintained and your pedals are still powered. The show must go on, but you are just about to lose it. If the overload is severe the SOL goes into hiccup mode and both the CIOKS LED and all five status LEDs will be pulsing.
- Page 4 Voltage selector switch Global status indicator Advanced LED indicator Legend shows the voltage switch Holes with metric M4 threads are to be used settings with corresponding output with the GRIP bracket ver. 2.0 (sold voltage values in Volts and the separately) for mounting to Pedaltrain maximum current rating at the selected boards with no drilling required...
- Page 5 IEC Power Inlet Isolated PEDAL OUTLETS (x5) 100-240V~ mains input 9/12/15/18V DC center positive When connecting the SOL always make sure that both the power cord and the socket outlet are freely accessible so that the unit can be disconnected very easily.
- Page 6 ø4,5 or ø5,0mm holes in the pedalboard and fasten the SOL to it with the two included screws. An easy alternative way is to use the GRIP bracket where no drilling is needed. Due to the SOLs extremely flat profile and low weight you can use Dual-Lock tape or industrial Velcro to fasten it below any type of Pedaltrain pedalboard.
- Page 7 Powering different pedal types Each individual rig is different so if you have any questions about using the SOL, please e-mail your detailed questions including the power requirements of your specific pedals directly to support@cioks.com. Technical specifications AC mains input: 100-240VAC, 50-60Hz, max.
