CIOKS DC10 User Manual

Type 2 – red with 5,5/2,1mm centre positive DC-plug
Type 4 – green with 5,5/2,5mm centre positive DC-plug
Type 5 – black with 3,5mm tip positive jack-plug
Type 6 – black with 9V battery clip
Split Flex type 1 – black with two 5,5/2,1mm centre negative DC-plugs
Stack Flex type 1 – black with 5,5/2,1mm centre negative DC-plug
Series Adapter Flex – 2x white and 1x black RCA plugs
Mounting hardware
We've included all the needed hardware to mount the power supply on top or underneath a
Pedaltrain or Temple Audio pedalboard. You can of course also attach it to boards of other
brands. Look on CIOKS web site for more information and mounting guides.
Not included accessories
More Flex cables and Booster Flex
To power one pedal using one outlet you simply use a single suitable standard Flex cable and
that's it. In case the plug type or length you need is not included with your unit there's a big
selection of standard Flex cables to choose from and order them separately. In case of an odd
voltage or current requirement you might need one of the Special Flex cables available. Please
read more about these and how to use them on CIOKS web site or in the included Flex guide.
They really open up for even more versatility and flexibility in terms of what you can power
with your unit.
Powering different pedal types
This issue is different for every individual rig, therefore please e-mail your specific questions
regarding powering your pedals using CIOKS power supplies directly to support@cioks.com.
Technical specifications
AC input: 110-120VAC 60Hz or 220-240VAC 50Hz, max. 35W
Outputs: Outlet 1-4: 9V DC / 100mA each, isolated
Outlet 5-6: 9 or 12V DC / 200mA each, isolated when not in Merge mode *
Outlet 7-8: 9 and 12V DC / 400mA, outlets 7 and 8 share the same GND
Outlet 9-10: 9 and 12 or 15V DC / 400mA, outlets 9 and 10 share the same GND
* can be merged into one 400mA section, where outlets 5 and 6 share the same GND
Size: 158x98x35mm (excl. rubber feet)
Weight: 1,1kg
Warranty period: 5 years worldwide
What's in the box?
•
CIOKS DC10 power supply
•
mains power cord
•
16 Flex cables
•
pedalboard mounting HW (mounting bracket, screws, washers, stand-off and hex key)
•
manual, product sheet (drill guide) and Flex guide
x1
x2
x1
x1
x1
x1
x1
Introduction
Since 1991 the Danish company CIOKS has been providing guitar and bass players with
reliable power supplies dedicated for effect pedals. After our very first product CIOKS Baby
power supply was out in 1991, the Big John and Double Jack were launched in year 1995.
After a long break three more units were introduced in 2007 forming our Standard range of
dedicated power supplies for effect pedals. The big breakthrough came in year 2010 where
we've released the first products of the professional range with the DC10 as the most popular
product. CIOKS became global with distributors and dealers worldwide.
Features
•
10 outlets configured in 8 isolated sections with a total current of 1.600mA
•
3 powerful DC sections with 400mA each, able to power 3 high current pedals like
Strymon, Eventide or tc electronic Nova or Helicon pedals
•
offers DC voltages 9, 12 and 15V and also 18 and 24V with Series adapter Flex
•
15V option for a Radial Tonebone pedal or another Radial 15V unit
•
toroidal transformer with additional magnetic field shielding
•
short circuit protection of all outlets
•
advanced LED monitoring of each isolated outlet or section
•
compatible with Pedaltrain and Temple Audio pedalboards, mounting hardware incl.
Overview
Front
On the front of the enclosure you'll find 10 outlets of the power supply as RCA sockets which
all are centre positive. Correct polarity for the pedal is achieved by using the right Flex cable.
Top
CIOKS logo in the middle has a red LED placed in the middle of the letter 'O'. Right after the
power supply is turned on, it states your power supply's serial number by blinking the digits.
Then it goes into the temperature depending 'breathing mode' or just stays turned on
depending on its setting.

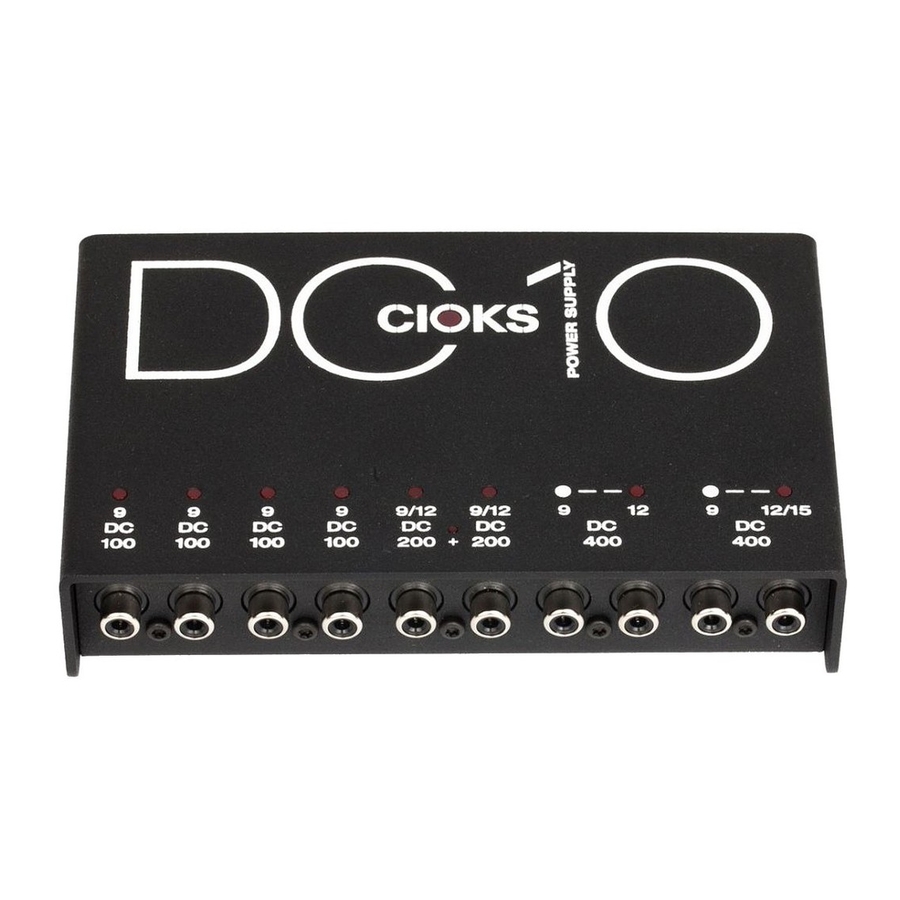

On top of the enclosure you see the output voltage and max. current rating of each isolated
outlet or section printed just above the outlet sockets. The top figure is the voltage and the DC
in the middle line tells you it's a direct current outlet. The bottom figure states the maximum
current capability of each outlet in mA. Outlets with two possible voltage settings have both
values stated e.g. 9/12 or 12/15. Isolated sections with two outlets sharing the same GND have
one common figure for maximum current which can be put out from both outlets in the section.
CIOKS DC10
Power Supply for Effect Pedals
User's Manual
reversion 1.2 – March 2017
