Technical specifications
AC mains input:
90-265VAC, 50-60Hz, max. 58W
Outputs 1-3:
9V DC / 660mA each
Outputs 4-7:
9V DC / 660mA or
12V DC / 500mA or
15V DC / 400mA or
18V DC / 330mA each
USB outlet:
5V DC / max. 1A
AUX outlet:
24V DC / max. 2A
Total maximum output power:
48W when drawn from the AUX outlet only
42W when drawn from Outlets 1-7 and the USB outlet
160x88x25,4mm / 6.3x3.5x1.0" (excl. rubber feet)
Size:
Weight:
0,5kg / 1.1 lb
Warranty period: 5 years worldwide
What's in the box?
•
PowerMAX power supply
•
Mains power cord
•
13 Flex cables
•
Mounting hardware (2 screws and a hex-key)
•
Manual
•
Product sheet (drill guide)
•
Flex guide
Version 2.01

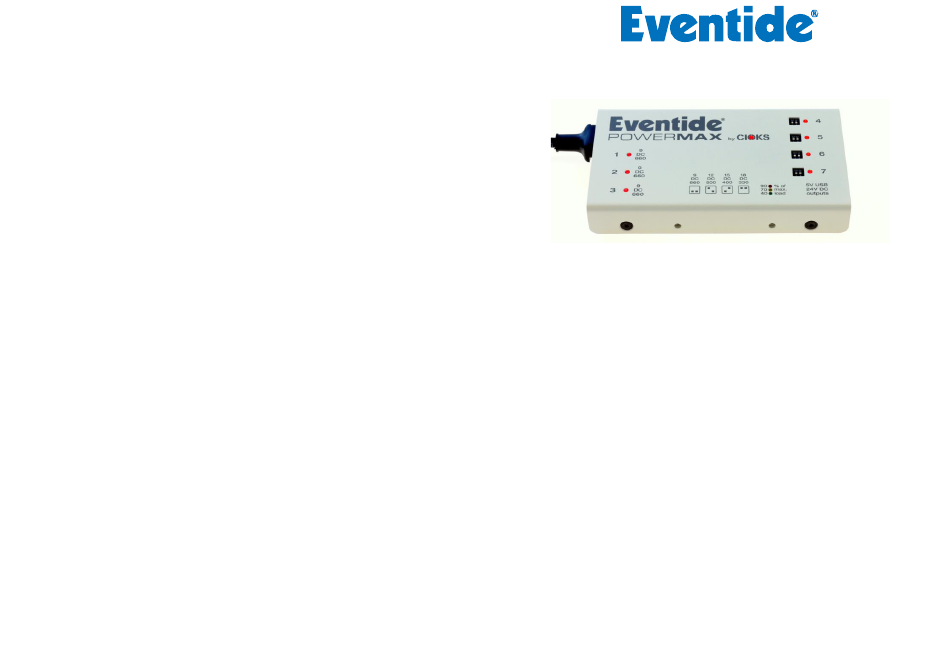

High Current Universal DC Power Supply with USB
Introduction
Since 1991, the Danish company CIOKS has been providing guitar and bass players with reliable power
supplies dedicated for effect pedals. After more than a quarter of a century, CIOKS has designed the next
Future Power Generation professional power supply dedicated to powering up to seven Eventide (as well
as other high current pedals) alongside providing power for a smartphone or a tablet via the USB outlet.
The result is the Eventide PowerMAX™.
Features
•
Trim 1-inch profile (25,4mm), only 1.05 lb (480 grams)
•
2-stage switch-mode power supply topology
•
Ultra-low noise achieved by multi-stage filtering
•
7 isolated DC-outlets, 6W each (660mA at 9V on each outlet)
•
4 selectable voltages on 4 outlets (9, 12, 15 or 18V)
•
Charge your phone or tablet with 5V USB outlet (max. 1A)
•
Expand via 24V AUX outlet with Eventide PowerMINI for more isolated outlets
•
Individual status LED on each outlet and global status LED
•
Built-in true power meter showing the total load
•
Total maximum output power 48W
•
Use anywhere in the world, universal mains input voltage 90-265V AC
•
Mounting hardware for Pedaltrain and Temple Audio boards included
•
Compatible with CIOKS GRIP for drill-free Pedaltrain mounting
•
13 Flex cables included
•
Designed in Denmark, assembled in Poland
•
5-year worldwide warranty
November 2021
Version 2.01
PowerMAX
User's Manual
Version 2.01 – November 2021
November 2021
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CIOKS Eventide PowerMAX
Summary of Contents for CIOKS Eventide PowerMAX
- Page 1 Since 1991, the Danish company CIOKS has been providing guitar and bass players with reliable power • supplies dedicated for effect pedals. After more than a quarter of a century, CIOKS has designed the next Mounting hardware (2 screws and a hex-key) •...
- Page 2 Dual-Lock tape or industrial Velcro to fasten it below any type of Pedaltrain pedalboard. CIOKS logo has a red LED placed in the middle of the letter ‘O’ and this functions as a global status indicator. For each outlet you have a voltage selector switch and an advanced LED indicator. The three Temple Audio LEDs in the true power meter is also situated on the top of the enclosure.
