CIOKS CIOKOLATE User Manual

Included accessories

Flex cables
CIOKS offers a great selection of different Flex cable types for connecting your pedals to the
power supply. Below you see a list of the included Flex cables with your unit:
Type 1 – black with 5,5/2,1mm centre negative DC-plug
Type 2 – red with 5,5/2,1mm centre positive DC-plug
Type 4 – green with 5,5/2,5mm centre positive DC-plug
Type 5 – black with 3,5mm tip positive jack-plug
Type 6 – black with 9V battery clip
Type 7 – blue with 2 pin DIN plug
Split Flex type 1 – black with two 5,5/2,1mm centre negative DC-plugs
3-way Daisy chain Flex – black with three 5,5/2,1mm centre negative DC-plugs
Stack Flex type 1 – black with 5,5/2,1mm centre negative DC-plug
Series Adapter Flex – 2x white / 1x black to be used with a standard Flex cable
Split Flex or Daisy Chain Flex should be used if you'd like to power two or three pedals needing
the same supply voltage using only one outlet. Stack Flex or Series Adapter Flex should be used to
obtain 18, 24, 40V or other higher voltage values by using two of the power supply's outlets. For
further information about Flex cables please have a look on our web site.

Mounting hardware

We've included all the needed hardware to mount the power supply on top or underneath a
Pedaltrain or Temple Audio pedalboard. You can of course also attach it to boards of other brands.
Look on CIOKS web site for more information and mounting guides.

Powering different pedal types

This issue is different for every individual rig, therefore please e-mail your specific questions
regarding powering your pedals using CIOKS power supplies directly to support@cioks.com.

Technical specifications

AC input: 110-120VAC 60Hz or 220-240VAC 50Hz, max. 70W
Outputs:
Outlet 1: 4-15V DC adjustable / 100mA
Outlet 2-4: 9V DC / 100mA each
Outlet 5: 18 or 24V DC / 100mA
Outlet 6-7: 9 or 12V DC / 200 mA each
Outlet 8-9: 9 or 12V DC / 400 mA each
Size: 292x98x35mm (excl. rubber feet)
What's in the box?
•
CIOKS CIOKOLATE power supply
•
mains power cord
•
24 Flex cables
•
pedalboard mounting HW (2x mounting bracket, screws, washers, stand-offs & hex key)
•
manual, product sheet (drill guide) and Flex guide
x12
Outlet 10-11: 9, 12 or 15V DC / 400mA
Outlet 12-13: 9, 12 or 15V DC / 600mA*
Outlet 14: 9 or 12V AC / 800mA*
Outlet 15-16: 9, 12 or 16V AC / 800mA
* only one of these two sections can be used
Weight: 1,6kg Warranty period: 5 years worldwide
x1
x3
Introduction
x2
Since 1991 the Danish company CIOKS has been providing guitar and bass players with reliable
x1
power supplies dedicated for effect pedals. To mark the 20
x1 made the most powerful and versatile power supply for effect pedals on the market – CIOKS
x1
CIOKOLATE. With some additions and a slightly different design we've put the DC10 and AC10
x1
power supplies in one enclosure. Loads of power, almost endless compositions of different
x1
voltages and a great selection of included Flex cables make this power supply a really strong tool
x1
for powering big pedalboards with many different pedals. CIOKS CIOKOLATE power supply
will power several high current digital pedals, high voltage 18, 24 or even 40V pedals, one or two
AC pedals, one or two Radial Tonebone pedals or simulating a dying battery it will power your old
favourite fuzz or overdrive. On top of that it will of course also power all your standard 9V pedals
from its many isolated outlets.
Features
•
16 outlets configured in 12 isolated sections
•
two toroidal transformers with additional magnetic field shielding
•
four powerful DC sections, three with 400mA each and one with 600mA
•
two powerful AC sections with 800mA each and voltages 9, 12 and 16V AC available
•
two 15V outlets for Radial Tonebone pedals or other Radial units
•
possibility of 18 or 24V from a single outlet
•
with Stack Flex the possibility of powering a 40V pedal
•
one outlet with adjustable voltage in the range 4-15V
•
short circuit protection of all outlets
•
advanced LED monitoring of each section
•
120 or 230V mains voltage operation
•
total of 24 included Flex cables
•
microprocessor controlled silent fan to ensure optimal operating temperature for long
term reliability
•
compatible with Pedaltrain and Temple Audio pedalboards, mounting hardware incl.
Overview
Front

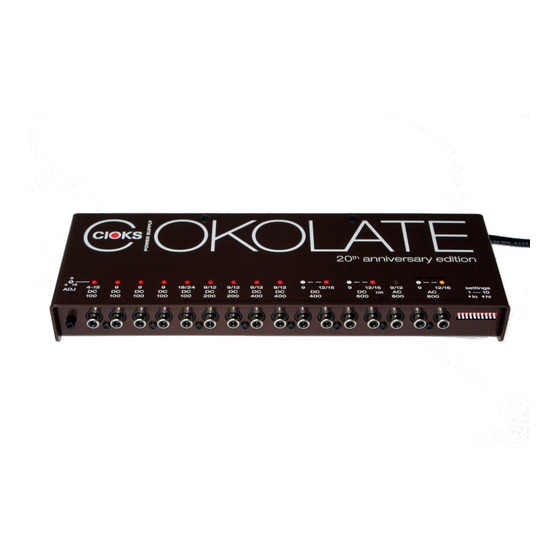

On the front of the enclosure you'll find 16 outlets of the power supply as RCA sockets where all
DC outlets are centre positive. Correct polarity for the pedal is achieved by using the right Flex
cable. On the most left side of the front you have a knob, which adjusts the output voltage of the
first outlet in the range 4-15 V. The middle 12 o'clock position corresponds to 9V. Fully clockwise
you get 15V and fully counter clockwise 4V. On the most right side of the front panel you'll find
the settings switch.
CIOKS CIOKOLATE
Power Supply for Effect Pedals
User's Manual
reversion 1.2 – March 2017
