CIOKS Adam link User Manual

Mounting hardware

We've included all the needed hardware to mount the power supply on top or underneath a
Pedaltrain or Temple Audio pedalboard. You can of course also attach it to boards of other
brands. Look on CIOKS web site for more information and mounting guides.
Not included accessories
Mains Link Adapter or Mains link cable
This adapter or cable type allows you to link two or more of the link power supplies together
and power several units using one single mains power cord.
More Flex cables
To power one pedal using one outlet you simply use a single suitable standard Flex cable and
that's it. In case the plug type or length you need is not included with your unit there's a big
selection of standard Flex cables to choose from and to be ordered separately. In case of an odd
voltage or current requirement you might need one of the Special Flex cables available. Please
read more about these and how to use them on CIOKS web site. They really open up for even
more versatility and flexibility in terms of what you can power with your unit.

Powering different pedal types

This issue is different for every individual rig, therefore please e-mail your specific questions
regarding powering your pedals using CIOKS power supplies directly to support@cioks.com.
Technical specifications
AC mains input: 110-120VAC 60Hz or 220-240VAC 50Hz, max. 15W
Outputs: Outlet 1-2: 9V DC / 250mA each, isolated
Outlet 3-4: 9 or 12V DC / 100mA each, isolated
Size: 115x88x31mm (excl. rubber feet)
Weight: 0,8kg
Warranty period: 5 years worldwide
What's in the box?
•
CIOKS Adam power supply
•
mains power cord
•
6 Flex cables
•
pedalboard mounting hardware (2 screws and a hex key)
•
manual
•
product sheet (drill template)
•
Flex guide
CIOKS Adam link
Power Supply for Effect Pedals
reversion 1.1 – March 2017

Introduction

Since 1991 the Danish company CIOKS has been providing guitar and bass players with
reliable power supplies dedicated for effect pedals. After our very first product CIOKS Baby
power supply was out in 1991, the Big John and Double Jack were launched in year 1995.
Three more units were introduced in 2007 forming our Standard range of dedicated power
supplies for effect pedals.
To follow our slogan "More power, more features, more design", we have in 2013 launched
CIOKS link range. Three of the Standard range products have been dramatically upgraded and
went through a spectacular face-lift, where the only thing left are their original names. CIOKS
Schizophrenic link, Big John link and AC Rider link were our new babies in year 2013. Small
size, yet very powerful and each model with an individual character and force. The unique
mains link feature allows you to merge two or more power supplies giving you the possibility
to create a power supply bank matching your individual needs. Just one single mains power
cord will power two or three power supplies, where you always have a courtesy AC mains
outlet available on the last unit. You can of course also use them as standalone power supplies,
getting just one to start with and extend with time.

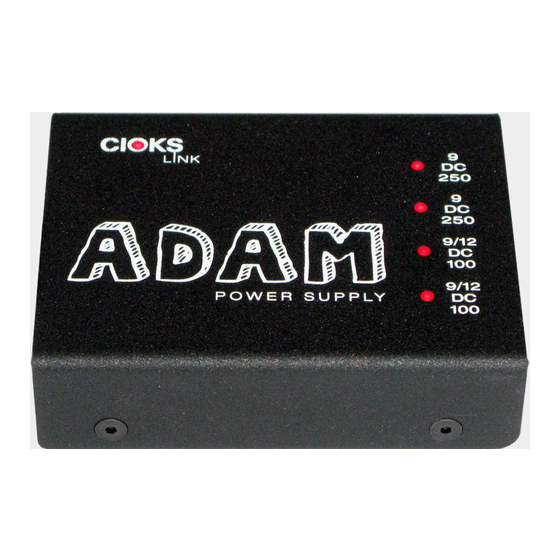

In year 2014 we've launched our smallest wonder – Adam link power supply. A perfect match
for the smallest pedal boards like the Pedaltrain models nano, mini or metro. Super flat design
and small but still powerful enough to power any two Strymon pedals or other medium current
ones of the two 250mA outlets. The remaining two will at lower currents provide 9 or 12V or
even 18 or 24V using series adapter Flex. Adam link is also a nice four isolated outlets add-on
to any other CIOKS link power supply.

Features

•
4 isolated outlets with a total output current of 700mA
•
two outlets configurable to either 9 or 12V
•
short circuit protection of all outlets
•
advanced LED monitoring of each outlet
•
120 or 230V mains voltage operation
•
detachable mains power cord
•
CIOKS unique mains link feature
•
6 Flex cables included
•
very easy mounting with pedalboards, all needed hardware included
•
compatible with Pedaltrain and Temple Audio pedalboards
