CIOKS Eventide PowerMINI User Manual

Powering different pedal types
Each individual rig is different, therefore if you have questions about using the PowerMINI power supply
please e-mail your detailed questions including the power requirements of your specific pedals directly to
support@cioks.com.
Not included accessories
Mini GRIP
The Mini GRIP bracket allows easy and drill-free mounting of PowerMINI power supply below any
Pedaltrain board except the smallest Nano model (order no. EGRm).
Hex stand-offs
A set of three M4x8mm hex stand-offs to make an offset and space for the finger screws in-between the
power supply and a Temple Audio pedal board (order no. 3HEX).
24V Power Adapter incl. mounting bracket
The power adapter can be used as an alternative power source for the PowerMINI power supply instead of
powering it of the 24V outlets on the PowerMAX. In this way you can use the PowerMINI as a stand-alone
power supply for a small pedalboard (order no. 24V40).
Technical specifications
Input 1: 9-24V DC or 9-12V AC, max. 2A
Outputs 1-2: 9V DC / 660mA
Outputs 3-4: 9V DC / 660mA or
12V DC / 500mA or
15V DC / 400mA or
18V DC / 330mA each
Total output power is max. 24W provided an appropriate and sufficient input power source is applied.
Size: 74x88x25,4mm (2.9x3.5x1.0"), excl. rubber feet
Weight: 230g (0.5lb)
Warranty period: 5 years worldwide
What's in the box?
•

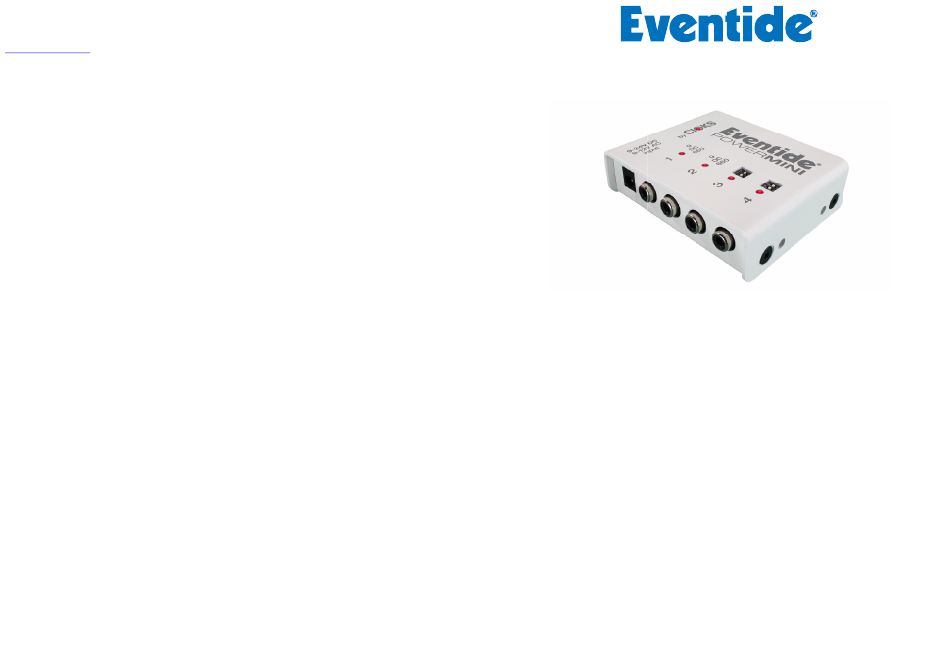

Eventide PowerMINI power supply
•
50cm DC Link cable
•
7 Flex cables
•
Mounting hardware (2 screws and a hex-key)
•
Product sheet (drill guide)
•
Flex and DC Link cable selection guide
•
Manual
•
Sticker (sheet with 3 pcs.)
Version 1.0
(non-polarized 5,5/2,1mm DC socket)
May 2020
PowerMINI - Expander Kit
Power Supply for Effects Pedals
Version 1.0 – May 2020
Introduction
Since 1991, the Danish company CIOKS has been providing guitar and bass players with reliable power
supplies dedicated for effect pedals. Eventide PowerMINI is designed to be used with up to four high
current pedals (as well as others with lower current draw) and allows for super flexible input power
options. The Expander Kit should be used to expand your Eventide PowerMAX power supply with
additional 4 isolated outlets.
Features
•
Expand your Eventide PowerMAX power supply with 4 additional isolated outlets
•
Compact and light stand-alone power supply for a small pedalboard
•
Slim 1-inch profile (25,4mm) and low weight of only 230g (0.5lb)
•
Ultra-low noise achieved by multi-stage filtering and innovative regulation feedback system
•
4 isolated DC-outlets, 6W each (660mA at 9V on each outlet)
•
4 selectable voltages on each outlet (9, 12, 15 or 18V)
•
Individual status LED on each outlet and global status LED
•
Total maximum output power 24W
•
Mounting hardware for Pedaltrain and Temple Audio boards is included
•
Compatible with Eventide Mini GRIP for drill-free Pedaltrain mounting
•
7 Flex cables included of which one is a 3-way daisy chain
•
Designed in Denmark, assembled in Poland
•
5-year worldwide warranty
Version 1.0
User's Manual
May 2020
