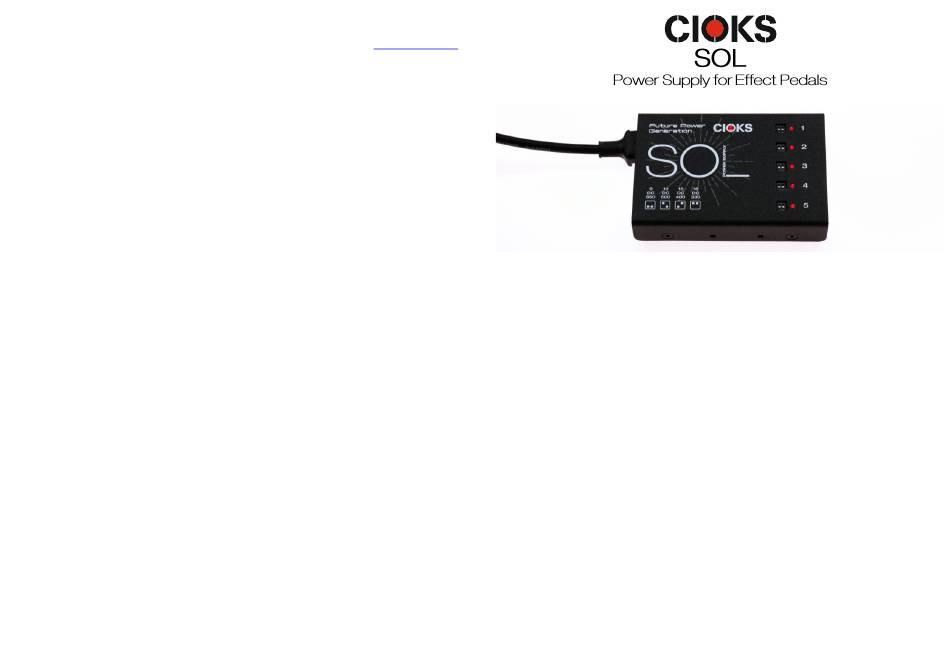

CIOKS SOL User Manual

Powering different pedal types
Each individual rig is different, therefore if you have questions about using the SOL, please e-mail your
detailed questions including the power requirements of your specific pedals directly to support@cioks.com.
Technical specifications
AC mains input: 100-240VAC, 50-60Hz, max. 42W
Outlets 1-5: 9V DC / 660mA or
12V DC / 500mA or
15V DC / 400mA or
18V DC / 330mA each
Total maximum output power: 30W
Size: 130x88x25,4mm (5.2x3.5x1.0"), excl. rubber feet
Weight: 0,4kg (0.9lb)
Warranty period: 5 years worldwide
What's in the box?
•
CIOKS SOL power supply
•
Mains power cord
•
9 Flex cables
•
Mounting hardware (2 screws and a hex-key)
•
Manual
•
Product sheet (drill guide)
•
Flex guide
Version 1.0
Introduction
Since 1991, the Danish company CIOKS has been providing guitar and bass players with reliable power
supplies dedicated for effect pedals. CIOKS SOL power supply is part of our Future Power Generation
range of professional power supplies. CIOKS SOL provides 5 isolated high current outlets for pedals.
Features
•
Slim 1-inch profile (25,4mm) and low weight of only 0,4kg (0.9lb)
•
2-stage switch-mode power supply topology
•
Ultra-low noise achieved by multi-stage filtering and innovative regulation feedback system
•
5 isolated DC-outlets, 6W each (660mA at 9V on each outlet)
•
4 selectable voltages on each outlet (9, 12, 15 or 18V)
•
Individual status LED on each outlet and global status LED
•
Total maximum output power of 30W
•
Use anywhere in the world, universal mains input voltage 100-240V AC
•
Mounting hardware for Pedaltrain and Temple Audio boards is included
•
Compatible with CIOKS GRIP ver. 2.0 for drill-free Pedaltrain mounting
•
9 Flex cables included
•
Designed in Denmark, assembled in Poland
•
5-year worldwide warranty
August 2022 Version 1.0
User's Manual
Version 1.0 – August 2022
August 2022
