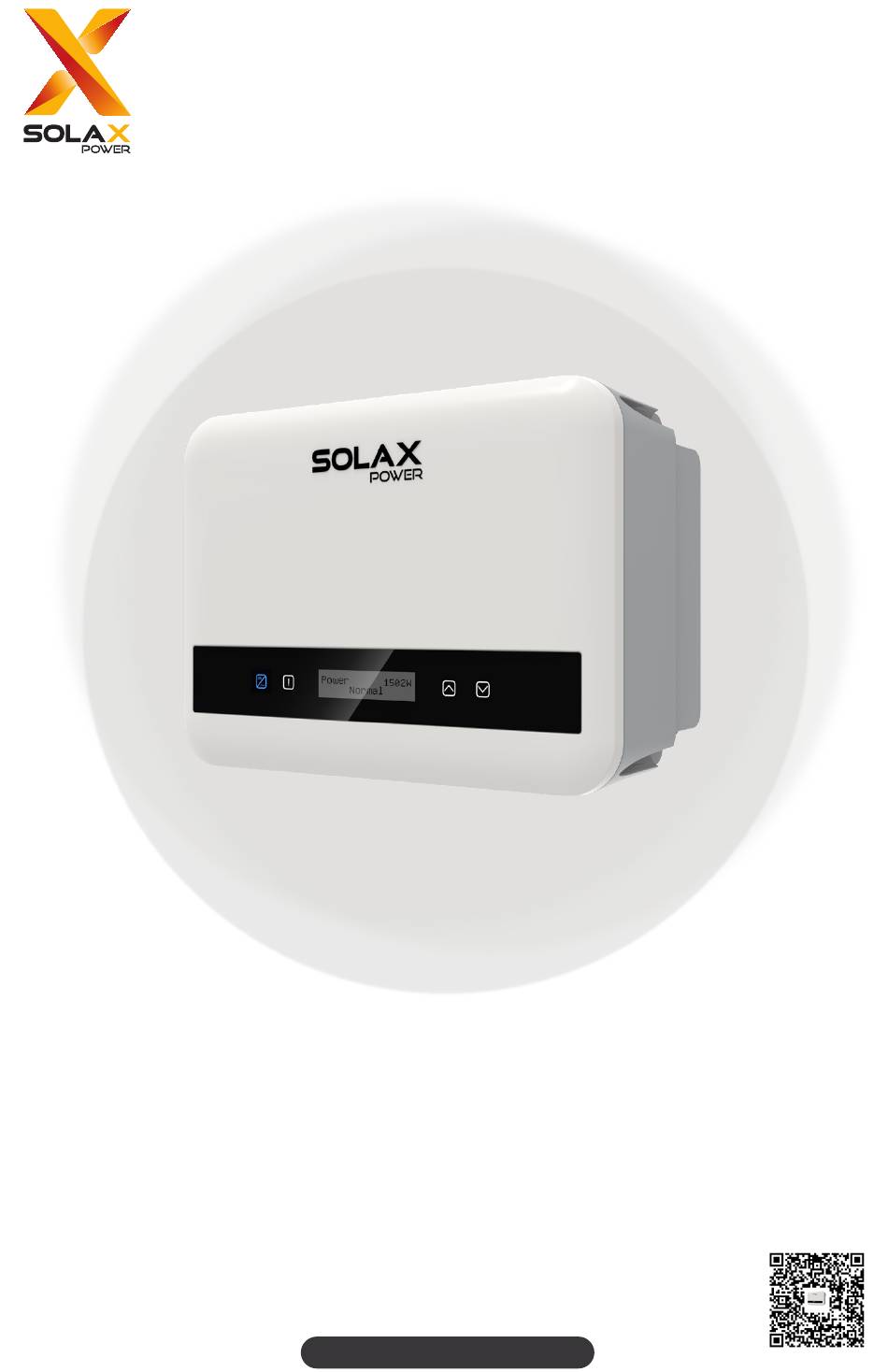

- Page 1 X1-MINI G4 0.6 kW / 0.7 kW / 0.8 kW / 1.1 kW / 1.5 kW / 2.0 kW / 2.5 kW / 3.0 kW / 3.3 kW / 3.7 kW/ 4.0 kW Installation Manual Version 1.0 www.solaxpower.com eManual in the QR code or at...
- Page 3 Safety General Notice 1. Contents may be periodically updated or revised. SolaX reserves the right to make improvements or changes in the product(s) and the program(s) described in this manual without the prior notice. 2. The installation, maintenance and grid-related setting can only be performed by qualified personnel who: •...
- Page 4 DANGER! Lethal danger from electrical shock due to the inverter • Only operate the inverter when it is technically faultless. Otherwise, electric shock or fire may occur. • Do not open the enclosure in any case without authorization from SolaX. Unauthorized opening will void the warranty and cause lethal danger or serious injury due to electric shock.
- Page 5 Packing List Self-tapping screw Inverter Bracket Documents Expansion tube AC connector Earth terminal Removal tool for AC M5*L8 screw Positive PV connector Negative PV connector connector RJ45 terminal Positive PV pin contact Negative PV pin contact Allen key Dongle (optional ) *Refer to the actual delivery for the optional accessories.
- Page 6 Installation Site -25°C - +60°C IP66 0-100%RH Avoid direct sunlight Avoid rain exposure Avoid snow lay up Near combustibles Near antenna NOTICE • For outdoor-installation, precautions against direct sunlight, rain exposure and snow accumulation are recommended. • Exposure to direct sunlight raises the temperature inside the device. This temperaturerise poses no safety risks, but may impact the device-performance.
- Page 7 Installation Carrier Be suitable for the dimension and weight (refer to technical data) of the inverter Fire resistant Installation Angle ≤5° Installation Space ≥30 cm ≥35 cm ≥35 cm ≥35 cm ≥30 cm ≥30 cm ≥30 cm ≥30 cm Single inverter Multiple inverters...
- Page 8 Installation Tools Hammer drill Multimeter Measuring tape Rubber mallet Crimping tool Marker Cross screwdriver Wire stripper Crimping tool for PV terminal Torque wrench Heat gun Diagonal pliers Crimping tool Heat shrinking tubing for RJ45 (Ø6 mm) Spirit level Safety goggles Anti-dust mask Safety gloves Safety boots...
- Page 9 Additionally Required Materials Required Material Type Size AC circuit breaker Dedicated PV wire PV cable Cross sectional area: 4~6 mm² withstand voltage 600 V Cross sectional area: 2.5~6 mm² AC cable Three-core copper wire (0.6 K-3.3 K); 3~6 mm² (3.7 K-4.0 K) Communication cable Network cable CAT5 External diameter : Ø2-6 mm...
- Page 10 PE Connection 6 mm 28~29 mm PE line: 2.5~6 mm² (0.6 K-3.3 Heat-shrink tubing K); 3~6 mm² (3.7K-4.0 K) (Ø6 mm) 8~9 mm Crimping tool 2±0.1 N·m AC Side Connection Outer jacket Separate these Ø6-15 mm 52.5 mm two parts 6 mm 55 mm L/N/PE line: 2.5~6 mm²...
- Page 11 Click 3±0.3 N·m Click DC Side Connection Positive PV pin contact ﹣ Negative PV ﹣ pin contact PV line: 4-6 mm Crimping tool for PV terminal ﹣...
- Page 12 Click！ Positive PV connector Negative PV connector Click！ 0.6K-2.0K: <450 V 2.5K-4.0K:<550 V Click Communication Connection COM/CT port on the inverter...
- Page 13 RJ45 connector *Ensure that all cables are of the Screw cap same length *Wiring according to 568B standard 0.5±0.1 N·m Hand-tight • Pin definition. RS485/ RS485/ Function Meter Meter Pin Definition DRM0 485_A 485_B +3.3V *Note: DRM0 here is for AS4777.2 AU/NZ . For RS485.
- Page 14 • For meter. i. For meter with CT Inverter Electrical grid Load Single Phase meter bidirectional *The meter used should be provided by SolaX. ii. For meter without CT Inverter Load Electrical grid Single Phase meter bidirectional *The meter used should be provided by SolaX.
- Page 15 • For direct CT connection. Inverter RJ45 Coupler RJ45 Coulper Load Electrical grid Home Electric Meter Important: The arrows direction on the COM/CT port on the bottom of the CT must point to the public grid side. inverter L line Inverter Public grid electricity...
- Page 16 Power on the System Step 1: Turn on DC switch. i) Turn on the DC switch from OFF state to ON state. Turn on DC switch Step 2: Turn on AC breaker. Turn on AC breaker Inverter Electrical grid Load AC breaker Load Home...
- Page 17 LCD Panel Real-time output power Status or error information Power Normal Operating Error Up/ESC Down/Enter indicator indicator LCD screen button button light light • In normal status, the "Power"/"Pgrid"/"Today"/"Total" information will be displayed respectively. You can press the keys to switch information. •...
- Page 18 General Setting Date Time > 2000-01-01 Language > Date&Time 00 : 00 Language Status > English > Language Set the system time, date and language Settings > >Safety > Settings 2 0 1 4 Export Control Safety Country > VDE 4105 < Set the corresponding safety standards according to different countries Settings >...
- Page 19 Technical Data • DC input X1-MINI- X1-MINI- X1-MINI- X1-MINI- X1-MINI- Model 0.6K-G4 0.7K-G4 0.8K-G4 1.1K-G4 1.5K-G4 Max. PV array input power [Wp] 1200 1400 1600 2200 3000 Max. PV voltage [d.c.V] Startup voltage [d.c.V] Nominal input voltage [d.c.V] MPPT voltage range [d.c.V] 40-450 40-450 40-450...
- Page 20 X1-MINI- X1-MINI- X1-MINI- X1-MINI- X1-MINI- X1-MINI- Model 2.0K-G4 2.5K-G4 3.0K-G4 3.3K-G4 3.7K-G4 4.0K-G4 Displacement power factor 0.8leading-0.8lagging ITHDi (rated power) [%] <3 Current (inrush) [a.c.A] Maximum output fault current 58 (15 ms) [a.c.A] Maximum output overcurrent protection [a.c.A] • System Data, Protection and Standard X1-MINI- X1-MINI- X1-MINI-...
- Page 21 X1-MINI- X1-MINI- X1-MINI- X1-MINI- X1-MINI- X1-MINI- Model 2.0K-G4 2.5K-G4 3.0K-G4 3.3K-G4 3.7K-G4 4.0K-G4 Max. efficiency [%] Euro. efficiency [%] Standby consumption <1 [W] @Night Ingress protection IP66 Protective class Overvoltage category II (DC), III (AC) Operating ambient temperature -25-60 range [°C] Max.
- Page 22 • The device meets the basic requirements and other relevant provisions of 2014/53/ EU directive. • The device is allowed to be used in all EU member states. • Manufacturer: SolaX Power Network Technology (Zhejiang) Co., Ltd. Product type: Pocket WiFi [CE DECLARATION OF COMFORMITY]: https://www.solaxpower.com/uploads/file/ pocket-wifi-ce-declaration-of-conformity-en.pdf...
- Page 23 For Pocket WiFi V3.0 -P: Pocket WiFi V3.0 -P × 1 External antenna × 1 For Pocket WiFi V3.0 -E: Pocket WiFi V3.0 -E × 1 Extended antenna × 1 Installation Installation steps WARNING! • Ensure that all power has been turned off at least 5 minutes prior to installation. Step 1: For the -P/-E version of Pocket WiFi, screw the antenna to the end of the shell.
- Page 24 Installation requirements For Wi-Fi mode, the longest connection distance between the router and the equipment should be no more than 100 meters; if there is a wall between the router and the equipment, the longest connection distance is 20 meters. 24CM concrete wall (example) <100 m <20 m...
- Page 25 Indicator description Indicator status Description Inverter connected; Blinks quickly (on and off every second) Server disconnected Inverter disconnected; On for 3 s and off for 200 Server connected Inverter disconnected; On and off every 3 s Server disconnected Constant on Normal connection Technical Data Product Name...
- Page 27 Warranty Registration Form For Customer (Compulsory) Name Country Phone Number Email Address State Zip Code Product Serial Number Date of Commissioning Installation Company Name Installer Name Electrician License No. For Installer Module ( If Any ) Module Brand Module Size(W) Number of String Number of Panel Per String Battery ( If Any )
- Page 28 SolaX Power Network Technology (Zhejiang) Co., Ltd. ADD.: No. 278, Shizhu Road, Chengnan Sub-district, Tonglu County, Hangzhou, Zhejiang, China E-mail: info@solaxpower.com Copyright © SolaX Power Network Technology (Zhejiang) Co., Ltd. All rights reserved. 320102132401...
