Summary of Contents for AVM A30

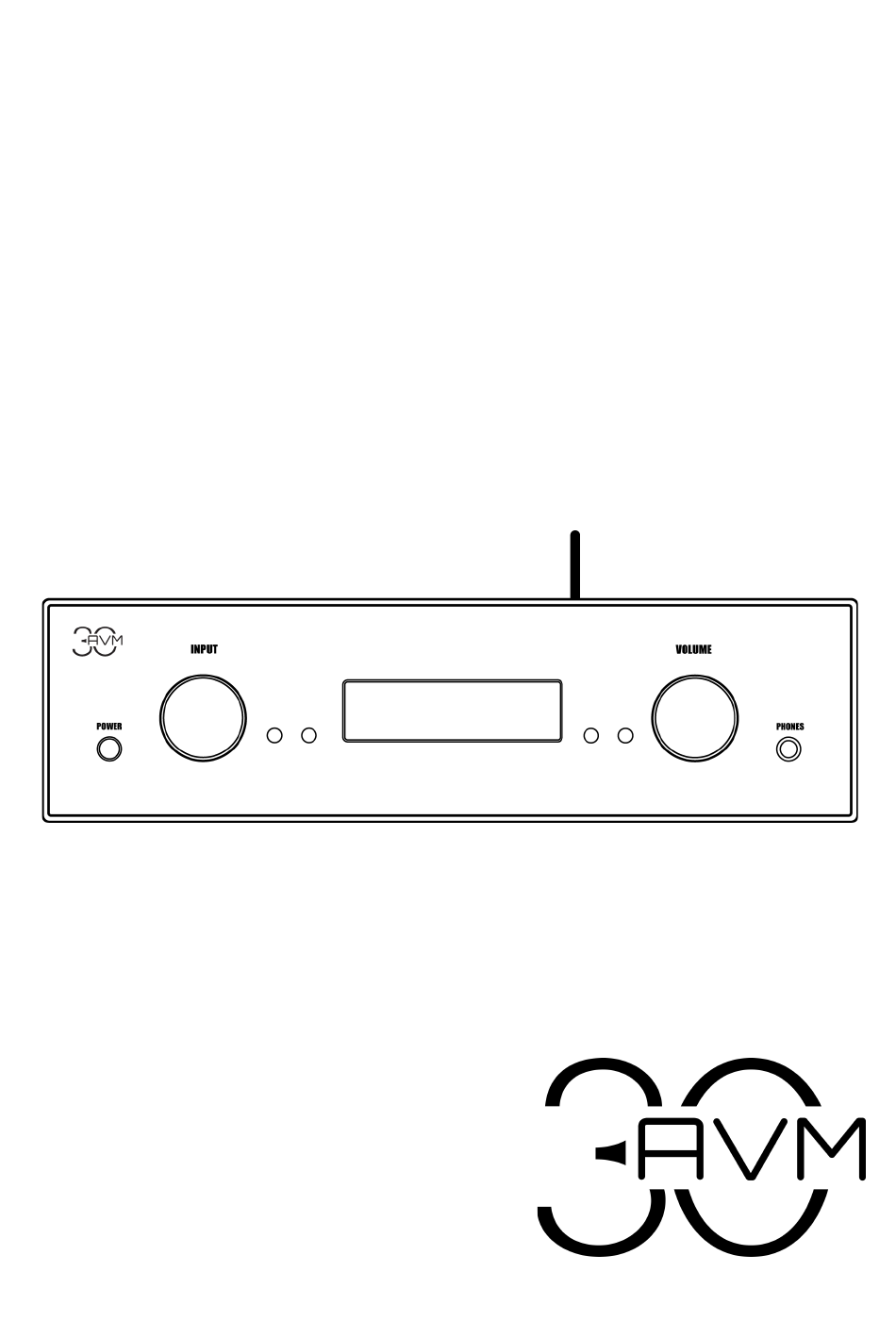

- Page 1 Owners Manual...
-
Page 3: Declaration Of Conformity
We confirm that the device to which these operating instructions belong, meets the EC guidelines for obtaining the mark at the time of printing. The necessary tests were carried out with a positive result. AVM Audio Video Manufaktur GmbH Daimlerstraße 8 D-76316 Malsch www.avm.audio... -
Page 4: Product Registration
In the following, we would like to explain the use of your A30 or V30 in a comprehensive manner and ask you to take a little time to study these instructions in detail. -
Page 5: Table Of Contents
Connecting a recording device ................... 8 1.10 Operation with subwoofer ................... 9 1.11 AV Throughput (A30) ....................9 1.12 Connecting the speakers (A30) ................. 10 1.13 Headphone jack ......................10 1.14 RC 3 Remote Control....................10 Operation ........................12 First switch-on / self-test ..................12 Switch device on / off .................... -
Page 6: Getting Started
1 Getting Started Content • A30 Integrated Amplifier • Bluetooth-Antenna • Power Cord • RC 3 Remote Control Note: Please check the device and accessories after unpacking for completeness and transport damage. If the original packaging is already open, please contact your dealer. Often, a retailer prepares your new device for use at your home before delivery, in which several settings are already preconfigured for you. -
Page 7: Installation And Cooling
The A30 power amplifier require cooling. Therefore, it is necessary that the air supply from below and the outflow of the heated air upwards is unhindered. Be sure to keep the A30 as free as possible on a firm surface. The ventilation slots on the top of the device must not be covered. -
Page 8: Connection Of Analog Sources
Connection of analog sources High level sources To connect analog sources, connect them to the XLR inputs (14) or to the rear of the unit using appropriate cables. For the RCA inputs (13), the left channel is connected to the top row (white), the right channel to the bottom row (red). -
Page 9: Operation With Subwoofer
In addition to the volume setting (see section 2.5), the options for adjusting the input sensitivity (see section 2.6), the balance (see section 2.7) and all the sound settings (see section 2.8) of your A30 or 30 are also deactivated. -
Page 10: Connecting The Speakers (A30)
As an alternative to the supplied RC 3 remote control, you can also use AVM models RC 8 or RC 9. These two remote controls allow you to control a wider range of functions and are available at an additional cost from your dealer. - Page 11 1.14.1 Replace batteries Bottom of the RC 3 remote control If the range of the remote control decreases significantly, new batteries must be used. Remove the six screws marked with arrows at the bottom of the remote control (ATTENTION: do not open the two middle screws without arrow mark!).
-
Page 12: Operation
2 Operation First switch-on / self-test When switching on the A30 and V30 for the first time, a so-called self-test will be carried out, provided that the device was previously completely disconnected from the power supply via the mains switch (25). The device checks the configuration and functionality of the built-in components and then goes into stand-by mode. -
Page 13: Volume Adjustment
Then select the A30 or V30 as the audio playback device and wait a moment for the connection to be established. The then appearing display PAIRED on the left upper edge of the display (6) signals a successful connection of both devices. As soon as you start playing music on your connected player, the UNLOCKED indicator on the top right of the display changes to LOCKED. -
Page 14: Reset (Default Setting)
/ off button (2). Wait until the RESET indicator in the display (6) goes out and the unit returns to normal operating condition. Your A30 Integrated Amplifier or V30 Preamp is now reset to its factory settings. -
Page 15: Cleaning And Maintenance
Often, supposed defects can be attributed to operating errors, sometimes other components connected to the A30 or V30 are also responsible for a malfunction. Before contacting your dealer or us for a defect, we ask you to check the following list to see whether you can remedy the malfunction yourself. -
Page 16: Warranty
Conditions for your warranty claim are: 1. The device must have been purchased from an authorized AVM dealer. Devices that come from other sources are not repaired, not even with costs. 2. Guarantee registration is done through our website: avm.audio 3.
