Page 1: Operating Instructions

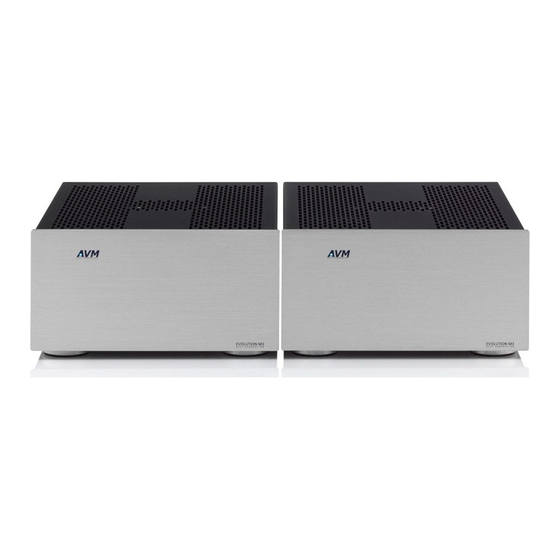

Mono poweramp EVOLUTION M3NG EVOLUTION M3 N E X T G E N E R A T I O N... -
Page 2: Table Of Contents
Dear customer, thank You for purchasing this AVM product. You own now a versatile, excellent sounding hifi component. Before enjoying music, please read this manual carefully. After that You will know how to use Your new AVM component in the optimal way. -
Page 3: Basic Information
1. Basic information 1.1 Technical highlights of the M3NG • extremely short signal paths for quick reaction. Rise- / fall times below 2 microseconds. • RCA-cinch inputs as well as balanced XLR inputs. Fully insulated gold plated speaker terminals. • two independent power supplies for driver and power stages make the circuits free of influences from load. drive capability down to below 2 Ohms load. -
Page 4: Details About The Circuitry
People who concern themselves with music know that the human ear reacts much more sensitively to signal falsifications than any measuring instrument. One of these falsifications occurs when an amplifier operates too slowly: An insufficient slew rate leads to erosion of the edges of the signals. The human ear orientates itself on the first wave front (in other words the first rising edge of an impulse) to locate the source of sound. - Page 5 An excellent thermal coupling between the FETs is assured by the absence of the otherwise usually incorporated mica insulators. All FETs are selected with a tolerance of +/- 5mV to provide optimal current distribution. The optimal circuit layout, allows very short signal paths between the circuit board and speaker terminals. This results in extreme damping factors which are necessary to control the loud speaker and architectural acoustics.
-
Page 6: Operation Of The M3Ng
2. Operation of the M3NG A first request: Please follow the instructions stated in this manual in their given sequence before you initially take this equipment into use. In this manner you will get to know all the capabilities of your amplifier and reduce faults through self-made operating mistakes. -
Page 7: Placement And Cooling
(7) to "perm" and activate the unit with the main supply switch. If your preamplifier is equipped with a trigger output (such as for example the AVM V3NG) you can connect this output to the M3NG's trigger input (8) (see also 2.1.4 connection trigger input) and set the M3NG's mode selector (7) to "trigger". -
Page 8: Connection To The Preamlifier
2.5 Connection to the pre amplifier Your M3NG is equipped with both an RCA-cinch (5) and balanced XLR input socket (4) which can be used as desired. Merely connect the pre amplifier with the relevant cable. The input resistance of the M3NG is 4,7 kOhms and its sensitivity is 625 mV. -
Page 9: Cleaning
3. Cleaning The surface and printed text on the casing is largely scratch resistant. The casing may be cleaned with a mild soap solution or spirit based glass cleaner (use economically) and a soft lint free cloth. NOTE Care should be taken during cleaning to ensure that no liquids can ingress into the casing. It is advised for safety reasons to remove the power cable from the electrical supply before cleaning the casing with a damp cloth. -
Page 10: Conditions Of Warranty (Ec Only)
If you have purchased your unit from a dealer outside Germany please refer to him or the relevant importing firm to process the warranty. 6. technical data EVOLUTION M3NG sensitivity RCA cinch and XLR 625 mV / 4.7 kOhms (25 Watts / 4Ohms)
