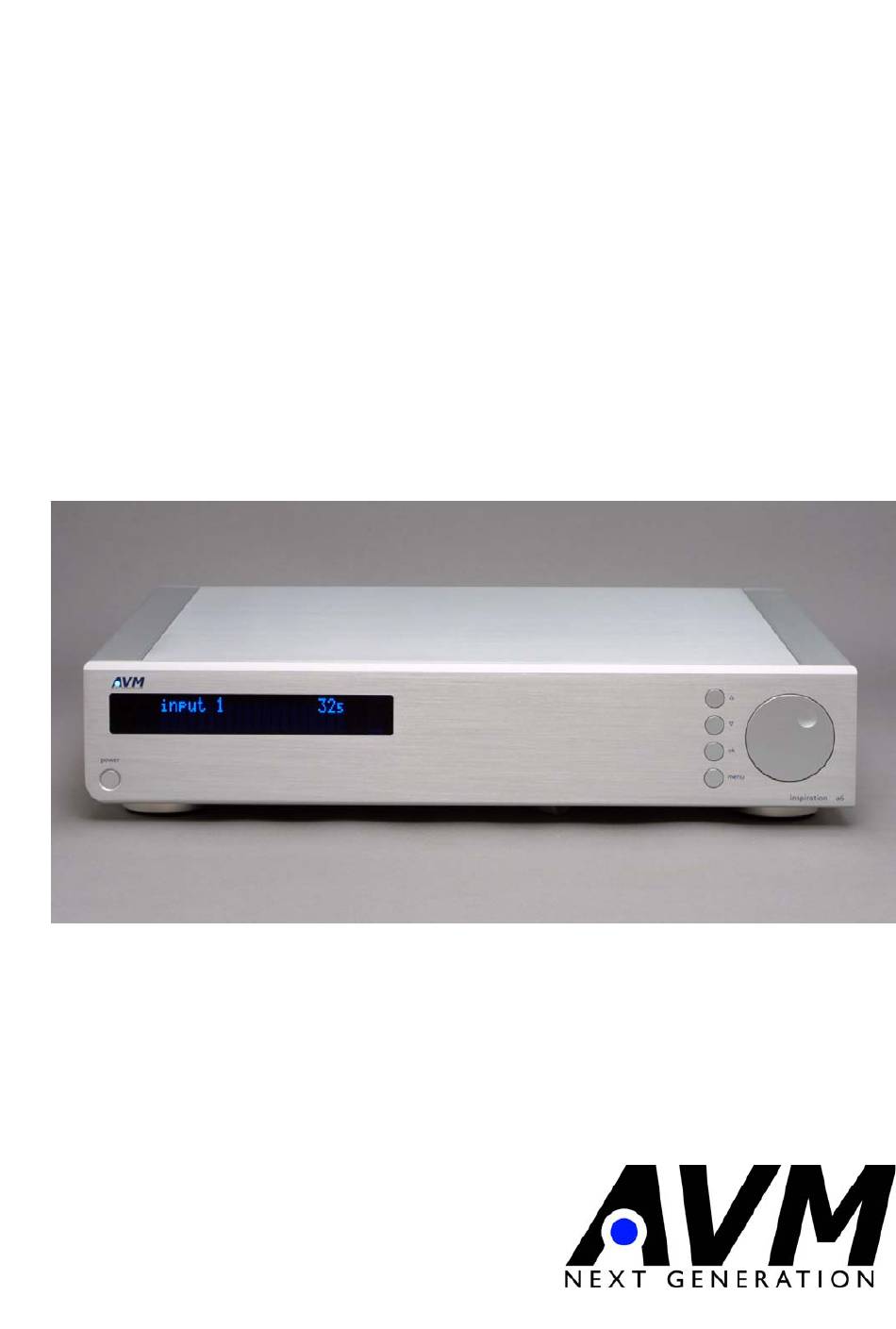

- Page 1 v6...
-
Page 2: Dear Customer
Dear customer, thank You for purchasing this AVM product. You own now a versatile, excellent sounding hifi component. Before enjoying music, please read this manual carefully. After that You will know how to use Your new AVM component in the optimal way. -
Page 3: Table Of Contents
Table of contents Basic informations Mechanical construction Power supply Preamplifier section Power amplifier inspiration a6 v6 overview Installation and cooling Connection to mains Connecting the signal sources Connecting a tape recorder Connecting processors / equalizers Connecting the loudspeakers (a6 only) -
Page 4: Basic Informations
1. Basic informations about inspiration amplifiers The inspiration a6 and v6 need only a few elements to be operated. For basic operation You can select the source and set the volume very easily. The other settings (which are not often needed) can be accessed by the menu system (for example sound setting, level adjustment etc). -
Page 5: Inspiration A6 V6 Overview
2. inspiration a6 v6 overview The numbers in the drawings below mark the control elements. They refer to the numbers in the text, where the operation of the inspiration a6 v6 is described. Front panel Button power (on / standby) -
Page 6: Installation And Cooling
2.1 Installation and cooling The inspiration a6 can become hot depending on demanded output power and environmental temperature. Therefore it is important, that the cooling air can flow unhinderedly into the air inlet in the a6‘s bottom (right under the display) and flow out through the holes in the rear panel. -
Page 7: Remote Outputs
2.8 Remote outputs The three remote outputs (34) of the a6 / v6 are connected in parallel. The output voltage is 5 Volts, the impedance is 15 kOhm. To make the connection use telephone connectors 4P4C. The contacts of the remote outputs are connected as follows: a = Ground b = + 5 V if a6 is on, 0V while stand by. -
Page 8: Basic Operation
3. Basic operation In case the a6 v6 was not connected to mains a self test will be performed when it is switched on by mains switch (37) for the first time. The unit checks it’s configuration and if all installed components work properly. The procedure is shown in the display. -
Page 9: Menu System (Overview)
9.1 service ID (press OK for display) 9.2 hardware scan (start by pressing OK) 9.3 remote control 9.3.1 avm system rc1/avm system rc2/philips standard rc5 9.4 factory setting (activate by pressing OK) slot a (configuring unit in slot b, only if installed) -
Page 10: Details About The Several Menu Points
4.3 Details about the several menu points When the menu button (7) is pressed for the first time. The display (3) shows setup system in the upper line. The line below shows main menu..By pressing the buttons + or , (4/5) You can acess other menus: slot a, slot b (only if a pcb is installed). - Page 11 2. set balance Press ok (6) to enter and set channel balance by using the rotary encoder (8). The range is 9 dB. 3. output control Press ok (6) to enter and select using the buttons + or , (4/5) between: 3.1 set cinch out on/off 3.2 set XLR out on/off 3.3 set speaker out on/off (a6 only)
- Page 12 6.2 input level... The level of signal sources (CD, Tuner and so on) differs often by several dBs. So You recognize a step in volume, when switching between two inputs. It is also possible, that a source which is too loud overdrives the input an causes distortion.
- Page 13 Using the rotary encoder (8) You can select: philips standard rc5:Nearly all PHILIPS standard remote controls using RC5 code. avm system rc2: AVM touch screen remote control (ask Your dealer). avm system rc1: AVM standard remote control (ask Your dealer).
-
Page 14: Remote Control
5. Remote control (option) As acessories we offer two different infrared remote control transmitters. Ask Your dealer. 6. Installation of modules On the rear panel are two slots for installation of additional modules. (for example phono input, multichannel in/out, additional XLR input). To install a module You have to unscrew the cover of one of the slots. -
Page 15: Technical Data
9. Technical data inspiration a6 / v6 pre out speaker out (a6 only) Input sensitivity Hihg level in 0,075 – 1,2 V (variable) 0,075 – 1,2 V (variable) (180W into 4 Ohms, 1 V at pre out) Input impedance High level in...
