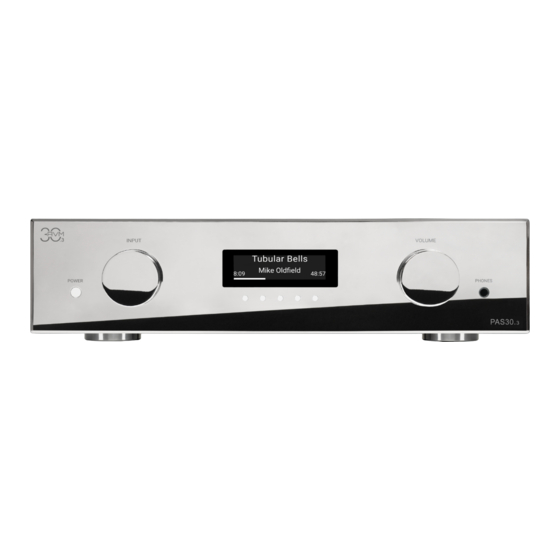

AVM AVM30.3 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AVM30.3
AS / CS / PAS 30.3
Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for AVM AVM30.3

Summary of Contents for AVM AVM30.3

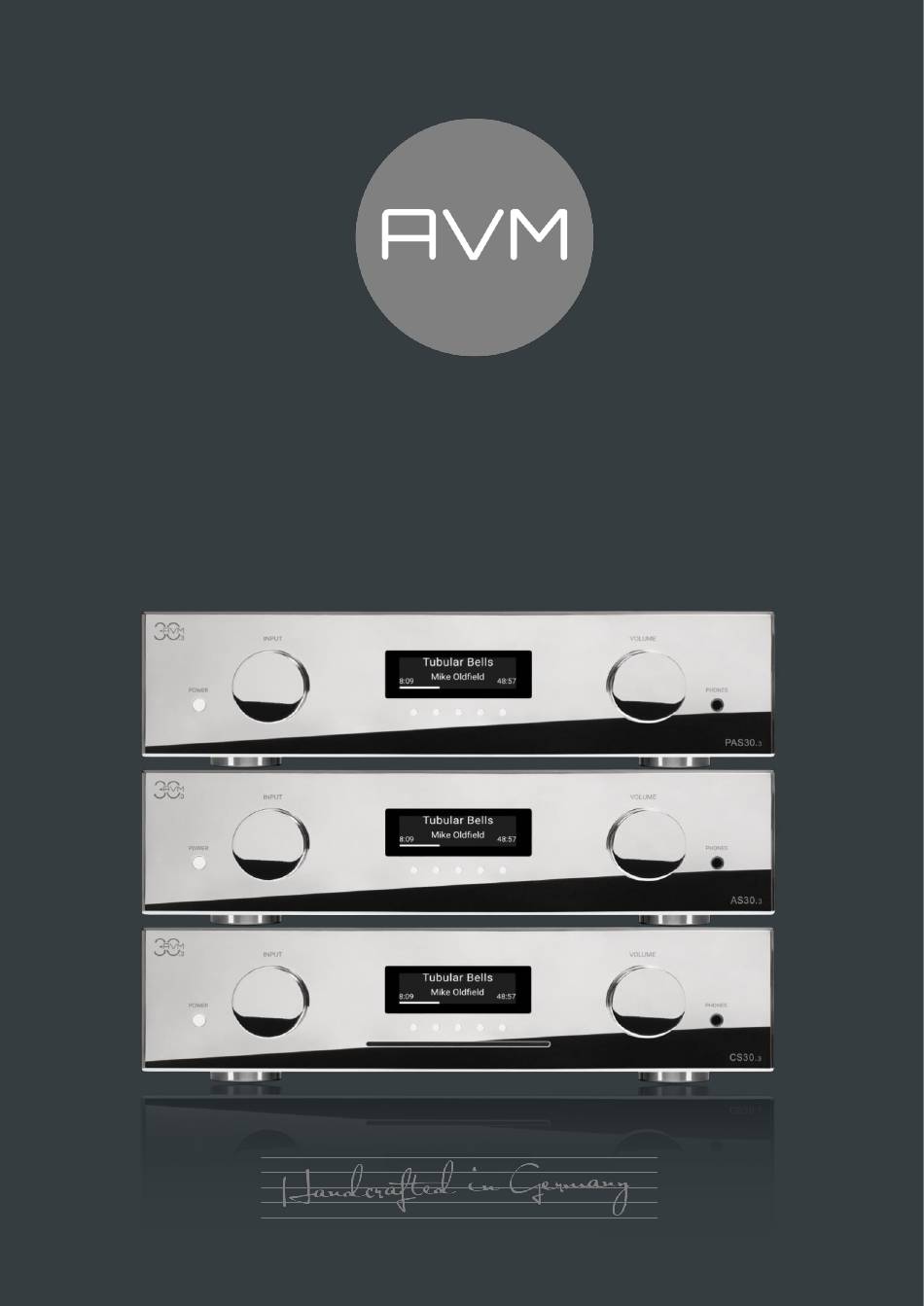

  • Page 1 AVM30.3 AS / CS / PAS 30.3 Instruction Manual...
  • Page 2 And finally, the most important thing: We at AVM and our dealers are always happy to help you. If you have any questions, requests or suggestions, please contact us at any time. And if you are satisfied with us: Feel free to recommend us to others.
  • Page 3 In the event of an approaching thunderstorm, unplug from the power outlet. Switching it off with the power switch is not enough, because the overvoltages "jump" even over the contacts that are not closed. The right APP for your AVM device: RC-X AVM Audio Video Manufaktur GmbH MAKING OF AVM Daimlerstraße 8...

  • Page 4: Table Of Contents

    Instruction Manual AVM30 AS/CS/PAS 30.3 Table of content START-UP PROCESS ..............................5 1.1..................................5 COPE OF DELIVERY 1.2..................................... 5 VERVIEW 1.3................................6 NSTALLATION AND COOLING 1.4..................................6 AINS CONNECTION 1.5..............................7 ONNECTION OF ANALOGUE SOURCES 1.6.

  • Page 5: Start-Up Process

    Instruction Manual AVM30 AS/CS/PAS 30.3 1. Start-Up Process 1.1. Scope of delivery • AVM30 AS 30.3 / CS 30.3 / PAS 30.3 • 2 WLAN/Bluetooth antenna(s) • Power cord • 3x2 RCA connector for PHONO termination • Gloves • RC 3 Radio Remote Control NOTE: Please check the device and accessories for completeness and transport damage after unpacking.

  • Page 6: Installation And Cooling

    Instruction Manual AVM30 AS/CS/PAS 30.3 Speaker Output Right (just CS/AS) Optical Output Speaker Output Left (just CS/AS) Networkconnection (LAN) Power switch Coaxial Digital Input Primary fuse Optical Digital Input Electrical appliance connection HDMI ARC Input 2x Antenna connection Bluetooth/ WLAN PRE-Amp - OUT Reset-Button with LED LINE-OUT...

  • Page 7: Connection Of Analogue Sources

    Instruction Manual AVM30 AS/CS/PAS 30.3 1.5. Connection of analogue sources Analogue signal sources can be connected to the analogue inputs via suitable cables (29). The left channel is connected to the top row, the right channel to the bottom row. 1.5.1.

  • Page 8: Connection Of Analogue Recording Devices

    1.12. RC 9 Remote Control (ATTENTION: No longer available) The optionally available RC 9 remote control allows you to control your AVM device comfortably and comprehensively. Before both components can be used together, they must first be coupled with each other.

  • Page 9: Rc X App For Ios And Android

    It is also possible to assign one of four hotkeys to the device (details on how to use the hotkeys can be found in a separate RC 9 user manual on the AVM website at www.avm.audio).
  • Page 10 All AVM devices with an integrated AVM X-STREAM engine® are hot-pluggable. This means that there is no need to restart or turn the AVM device off and on again to set up a wired network connection, but a network cable (LAN cable) can be connected during operation and a network connection is established immediately.
  • Page 11 NOTE: If you don't see an available device, check that the network cable is installed correctly and that the AVM device is on the same network/Wi-Fi network as your smartphone or tablet. Next, drag the view down a bit in the RC X app to search for available devices again. Please also note that the RC X app is only compatible with AVM models with integrated AVM X-STREAM engine®.
  • Page 12 Fi router is equipped with WPS, please refer to the corresponding documentation of your router. Setting up a WPS connection is done from the Personal Setup menu of your AVM device. For details on the full functionality of the Personal Setup menu, see Section 3.8 Personal Setup.
  • Page 13 Once your AVM device has finished booting and is in a general state of operation, go to the Wi-Fi menu in your iPhone or iPad's settings. Make sure that the Wi-Fi feature is turned on and that your iPhone or iPad is connected to the desired Wi-Fi network.
  • Page 14 To check network status, download the RC X app for iOS from the Apple App Store and install it on your iPhone or iPad. Next, launch the RC X app and select the AVM device from the Start menu. In the settings, go to the Network Info menu item. In the Wireless section, you can view details of...
  • Page 15 First, perform the pairing process as described in Section 1.11.1 and then select the newly set up AVM device on the RC 9 via the Select Device menu item. This menu item can be accessed via the System Menu, which you can access by pressing the Settings button (tool icon) of the RC 9.

  • Page 16: Software & Firmware Updates

    For maximum ease of use and to get the most out of your device, it is necessary to keep both the firmware of the integrated AVM X-STREAM engine® and the RC X app up to date. The latest version of the RC X app is available for download from the Apple App Store or Google Play Store.
  • Page 17 Instruction Manual AVM30 AS/CS/PAS 30.3 c.The device will restart to install the update. Do not turn off the device under any circumstances and wait for the update to be fully installed. The update process may appear on the device's display. d.

  • Page 18: Operation Of The Basic Functions

    Instruction Manual AVM30 AS/CS/PAS 30.3 2. Operation of the basic functions 2.1. First switch-on and self-test When the device is switched on for the first time (power switch to ON), a so-called self-test is carried out if the device has previously been completely disconnected from the mains or switched off via the power switch (14).

  • Page 19: Airplay

    Instruction Manual AVM30 AS/CS/PAS 30.3 2.5. Airplay AirPlay is a technology from Apple that can be used to control home audio systems and speakers in any room - with a tap or simply by asking Siri - directly from the iPhone, iPad, HomePod or Apple TV. Here's how to use AirPlay on your AS/CS/PAS 30.3: •...

  • Page 20: Cd Player (Cs 30.3 Only)

    Instruction Manual AVM30 AS/CS/PAS 30.3 2.7. CD player (CS 30.3 only) When the built-in CD player is selected, you can operate its basic functions using the five menu buttons under the display. Advanced settings (Repeat Mode, Shuffle, etc.) are also possible via the extended CD player menu by briefly pressing the MENU menu button.
  • Page 21 Instruction Manual AVM30 AS/CS/PAS 30.3 2.7.4. Repeat Mode To select one of the available repeat functions, press the MENU button and select the REPEAT menu item using the menu buttons (5) and (6) with the SELECT menu button. Then use the menu keys (5) and (6) to select the desired repeat mode: REPEAT repeats only the currently selected tracks.

  • Page 22: Bluetooth

    The integrated Bluetooth function enables the wireless transmission of high-quality music signals from a Bluetooth player such as a smartphone, tablet or PC to your AVM device. In order to activate and use the Bluetooth function, a compatible Bluetooth player must first be paired with your AVM device (see section 2.6.1 below).

  • Page 23: Selection Of The Appropriate Termination For The Phono Input

    Instruction Manual AVM30 AS/CS/PAS 30.3 2.9. Selection of the appropriate termination for the phono input For optimal playback quality, each cartridge should be operated with a suitable termination impedance. For the AS/CS/PAS 30.3 we offer MC impedance matching using impedance connectors. We recommend that you take a look at the operating instructions of your cartridge system.

  • Page 24: Global Settings

    Instruction Manual AVM30 AS/CS/PAS 30.3 3.1. Global Settings The following settings are available for each input group, whether digital, analogue, stream, CD, ... 3.1.1. Balance The Balance function allows you to move the right-left balance to the left or right in the range of ±6 dB to compensate for unbalances.

  • Page 25: Analog Inputs

    Instruction Manual AVM30 AS/CS/PAS 30.3 3.2. Analog Inputs For the analog inputs, only the settings from the Global Settings are available. 3.3. Digital inputs (COAX, OPTO, ARC) After selecting a digital input, you will be shown further setting options in the menu. 3.4.

  • Page 26: Phono Input

    Instruction Manual AVM30 AS/CS/PAS 30.3 3.4.4. Metadata usage In this menu item you can choose whether metadata (if any) is displayed on the display (3). You can choose between On (default) and Off. 3.5. Phono input 3.5.1. Phono Pickup After selecting the phono input (30), you can set which sampling system your pickup uses (MM or MC) under the Phono Pickup item.
  • Page 27 Instruction Manual AVM30 AS/CS/PAS 30.3 3.7.1.4. Permanent Volume Display In this menu you can set whether you want to see the current volume all the time or only temporarily. 3.7.1.5. Scroll Text For example, sets whether the text "scrolls" to display the entire text for long track names, or whether you don't want your device to display it.
  • Page 28 Instruction Manual AVM30 AS/CS/PAS 30.3 Often, the signal sources present in a hi-fi system have different levels. When switching, this creates a volume jump, which can be prevented by individually adjusting the input sensitivity of the inputs. Use the source selector switch (2) to select a local digital or analog input (24, 25, 26, 29, 30) and use the volume control (10) to set the monitoring volume to a comfortable level.
  • Page 29 Desired Standby Mode To ensure that your AVM device can be switched on at any time via the RC X app for iOS and Android, the integrated AVM X-STREAM engine® remains in constant operational readiness in Network Standby mode, even in standby mode. Please note that this will increase the power consumption.
  • Page 30 RC X app for iOS and Android, elementary basic functions of the device can also be operated via the classic RC 3 and RC 8 remote controls from AVM, which are available as optional accessories. In order to receive the infrared signal from these remote controls, the function must be IR Control (ON).

  • Page 31: Settings Via The Rc Xapp

    Instruction Manual AVM30 AS/CS/PAS 30.3 3.8. Settings via the RC X app Most of the settings you make via the device menu can also be easily changed with the new RC X app for iOS and Android. For step-by-step instructions on how to connect to the network, see section 1.13. 3.8.1.
  • Page 32 Instruction Manual AVM30 AS/CS/PAS 30.3 3.8.8.3. Inputs Here, as in the Personal Setup, you can skip unused inputs. To do this, you can simply decide which ones are displayed or skipped by selecting or deselecting the required inputs. (See also section 3.8.3.1). 3.8.8.4.

  • Page 33: Factory Reset

    Instruction Manual AVM30 AS/CS/PAS 30.3 3.9. Factory Reset Hold down the menu button (5) to go to the SETUP menu. Find and select the point "Factory Reset". Select your desired RESET here. The device will now perform the factory reset and then reboot to the general operating state. Alternatively, a factory reset can be performed via the RC X app for iOS and Android, the Personal Setup menu or the RC 9 remote control.

  • Page 34: Appendix

    Instruction Manual AVM30 AS/CS/PAS 30.3 4. Appendix 4.1. Caring for the housing The surface and print of the case are largely scratch-resistant. This can be cleaned with mild soapy water or a glass cleaner and a soft duster. WARNING: Under no circumstances should liquid get into the inside of the case during cleaning. In addition, the power cord should be unplugged for safety reasons before wiping with a damp cloth.
  • Page 35 Instruction Manual AVM30 AS/CS/PAS 30.3 4.2.3. Lipsync out of sync on digital inputs If, despite supported low-latency technology, the lip-sync is not correct, your TV often offers its own setting option to compensate for this. Your AS/CS/PAS 30.3 does not currently have its own setting for this.

  • Page 36: Warranty

    4.3.1. Prerequisites for your warranty claim are: The device must have been purchased from an AVM-authorized reseller. Devices that come from other sources will not be repaired, not even for a fee. Warranty registration is done through our website: www.avm.audio.

  • Page 37: Specifications

    Instruction Manual AVM30 AS/CS/PAS 30.3 5. Specifications 5.1.1. Power amplifier Amplification factor ..........................30 THD ............................... < 0.005% Signal-to-noise ratio ........................> 95dB Input sensitivity ..........................275 mV Frequency response (at -3dB) ..................< 5Hz to > 80kHz Output Power (1% THD, 4 Ohms, 2 Channels)2 ................ x 125W 5.1.2.
  • Page 38 Instruction Manual AVM30 AS/CS/PAS 30.3 5.1.5. Phono Pre-Amp Equalization RIAA ........................... < 0.2dB Gain MM .............................. 40dB Signal-to-noise ratio MM ......................> 83dB(A) Gain MC ............................... 60dB Signal-to-noise ratio MC ......................>74dB(A) Input level MM (1% THD)......................... 30 mV Input level MC (1% THD) ........................3 mV 5.1.6.
  • Page 39 Instruction Manual AVM30 AS/CS/PAS 30.3 5.1.11. Digital Inputs (S/P-DIF/ Coaxial) Max. Sample- / Bitrate (OPTO) ..................96 kHz / 24 Bit Deemphasis (OPTO) ....................Yes, automatically Max. Sample- / Bitrate (COAX) ..................192 kHz / 24 Bit Min. signal level [Vpp] at 195kHz (COAX) ................> 150 mVpp Input Impedance (COAX) ........................

  • Page 40: Declaration Of Conformity

    NOTE on power consumption in standby mode: To ensure that your AVM device can be switched on at any time via the RC X app for iOS and Android, the integrated AVM X-STREAM engine® remains in constant operational readiness in stand-by mode.
  • Page 41 Instruction Manual AVM30 AS/CS/PAS 30.3 This product supports AirPlay and requires iOS 11.4 or later. Apple and AirPlay are trademarks of Apple Inc., registered in the U.S. and other countries. Using the "Works with Apple" logos means that an accessory has been designed specifically for the technology specified in the logo and has been certified by the developer to meet Apple's performance standards.
  • Page 42 Instruction Manual AVM30 AS/CS/PAS 30.3 We reserve the right to make changes and errors to technical data and equipment. Release: 29. January 2024...

This manual is also suitable for:

As30.3Cs30.3Pas30.3
