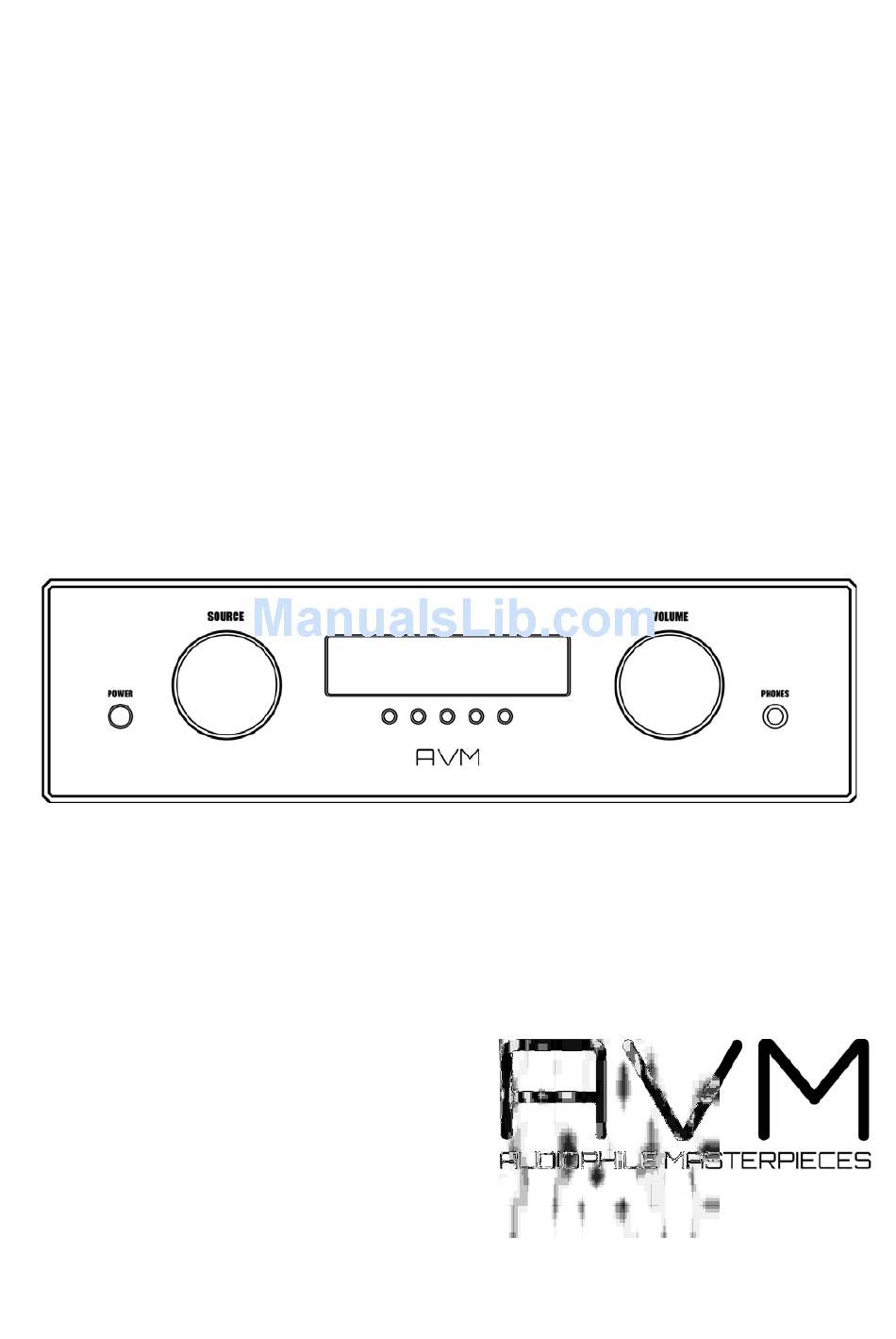

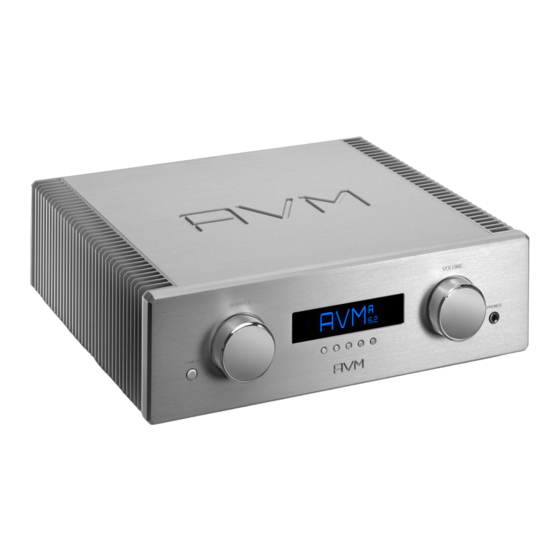

  • Page 1 Operating Instructions OVATION A 6.2...
  • Page 3 A 6.2 in the optimal way. Please note that the range of functions of your AVM hifi component can be easily expanded by means of a software update at any time. Hence, the present operating instructions will require continued updates going forward.

  • Page 4: Table Of Contents

    Table of contents Getting started ........................5 What's in the box? ......................5 Packaging instructions ....................5 Control and operating elements ..................5 First operation ....................... 6 Connection to mains ..................... 7 Connecting signal sources .................... 7 Connecting loudspeakers ..................... 7 Connecting trigger outputs / inputs ................

  • Page 5: Getting Started

    1.2 Packaging instructions The OVATION A 6.2 comes in a rugged and sturdy flight case. Please note that the bottom of the flight case is not symmetrical. If you need to put the unit into the flight case again, please ensure that the unit and the flight case is correctly positioned.

  • Page 6: First Operation

    1.3.2 Rear panel Connector for external IR sensor Analog inputs right (RCA/Cinch) Configuration port Analog output left (XLR) Link Analog output right (XLR) Analog output left (Cinch) Phase LED Analog output right (Cinch) Trigger outputs Speaker terminals right Mains connector Analog inputs left (XLR) Mains switch Analog inputs right (XLR)

  • Page 7: Connection To Mains

    1.8.2 Remote control of power amplifiers via audio cable If you happen to use a model of the AVM PA oder SD series as a pre-amplifier, your A 6.2 can be automatically switched on and off via a connected audio cable. There is no need for an additional trigger cable.

  • Page 8: Basic Operation

    2 Basic operation 2.1 Gerät ein- / ausschalten Using the power button (1) you can switch between on (operate) and stand by. When switched on, the display (5) lights up and the LED (3) is off. In stand by mode the display is off and the LED is on to indicate that the unit is still connected to mains.

  • Page 9: Advanced Settings

    3 Advanced Settings Your OVATION A 6.2 offers a wealth of custom specific settings in its advanced settings menu. To enter the menu just tap on the button MENU (4c). The button now changes to EXIT. A second tip on this button leads you to the normal operating mode. When the menu system is active you can select the desired function using the buttons <...

  • Page 10: Personal Setup

    This is because the human ear is not sensitive to bass and treble at low sound levels. To compensate this you can use the parametric loudness function of the OVATION A 6.2. This function will increase bass and treble levels when you decrease the volume. When the volume is increased the frequency response will be more and more flat and remain linear at high volume levels.

  • Page 11: Reset (Werkseinstellungen)

    (2). When you are ready, simply press BACK (4c) and the new input names are stored. 3.2.5 gain fix / variable If a surround system is connected to the OVATION A 6.2, specific settings such as channel balance, tone settings and bass management are controlled by a separate decoder. These settings may not be altered by other components in order to maintain the balance of all channels.

  • Page 12: Rc 3 Remote Control

    (ALL). CANCEL will bring the unit back to normal operating mode without resetting any item. 4 RC 3 remote control The RC 3 remote control comes as a standard with the OVATION A 6.2. All main functions can be controlled by the RC 3 : ON and OFF, volume control (<VOLUME>), source (<INPUT>).

  • Page 13: Troubleshooting

    5.2 Troubleshooting Some putative defects are often caused by mistakes in operation. Sometimes other units connected to the amplifier can cause problems. We therefore kindly ask you to read the following tips before consulting your dealer or us. 1. No playback a) Mute function is active, press button MUTE on your remote control or increase the volume using the rotary encoder (6).

  • Page 14: Technical Data

    In cases of doubt we reserve the right to request a copy of the bill of sale. • We also reserve the right to levy a handling charge for items returned without good or • valid reason, or if the unit proves to be not defective. NOTE: If you are returning the unit from a country other than Germany you should ensure that correct export documents are obtained.
