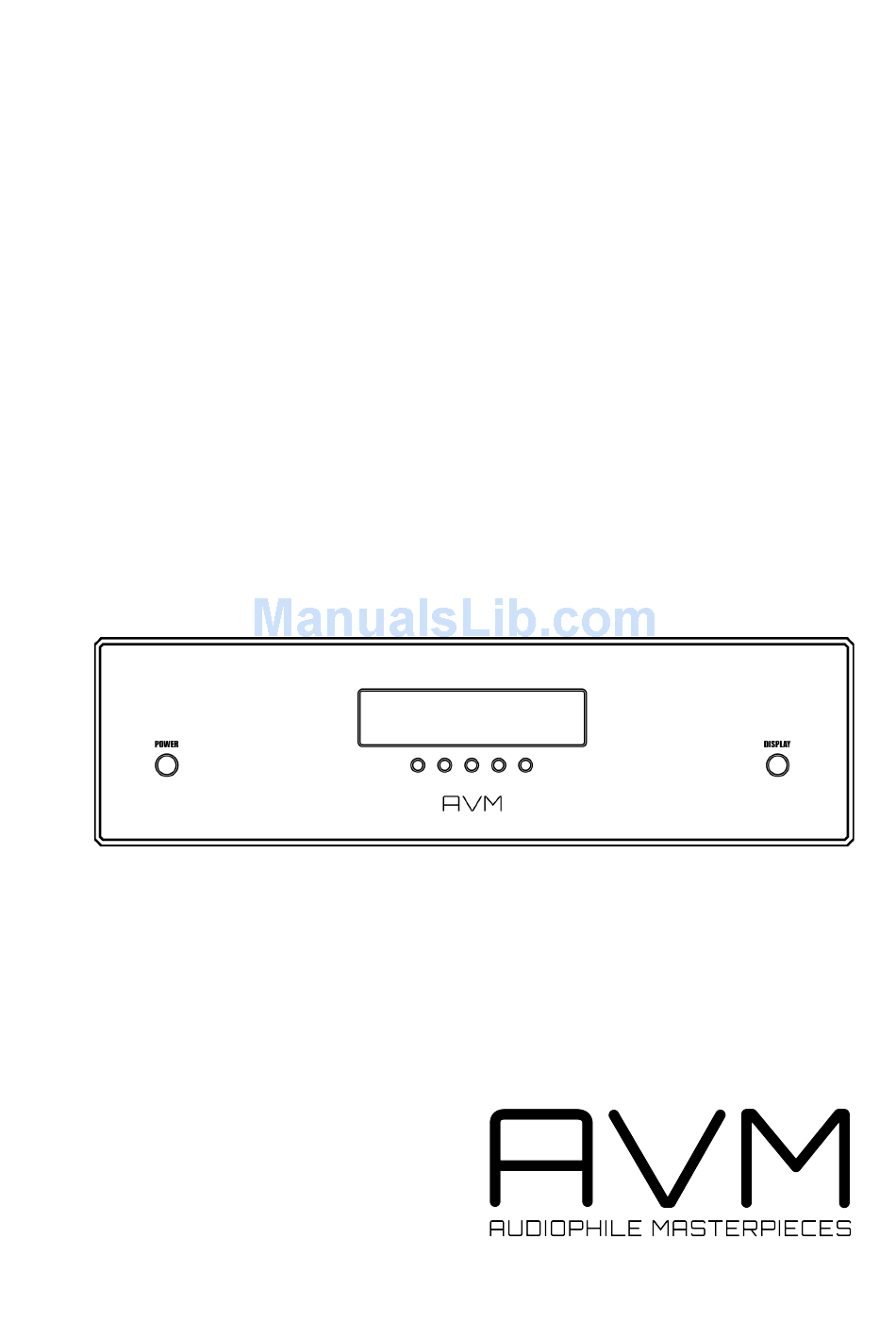

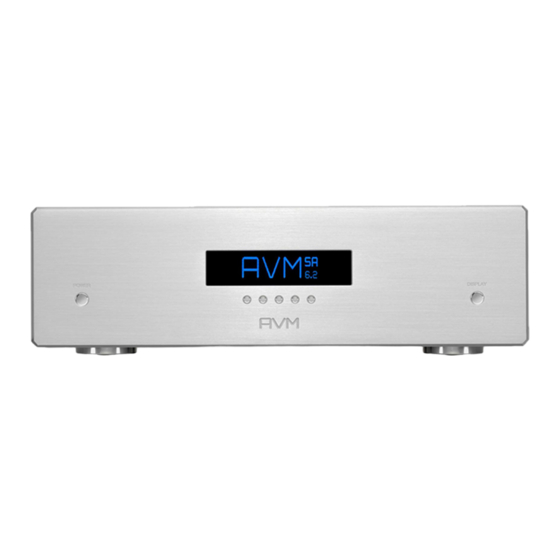

- Page 1 Operating Instructions OVATION MA 6.2 OVATION SA 6.2...
- Page 2 Dear customer Thank you for purchasing this AVM product. You now own a versatile, excellent sounding high end component. Before enjoying music, please read this manual carefully. After that you will know how to use your MA / SA 6.2 in the optimal way.
-
Page 3: Table Of Contents
Getting started What’s in the box? Control and operating elements 1.2.1 Front 1.2.2 Rear 1.2.3 Pin assignment XLR input und Trigger input Installation and cooling Connection to mains Connecting a pre-amplifier Connecting trigger inputs Connecting loudspeakers Packing advice Basic operation and advanced settings menu Operating mode / Standby mode Display button Advanced settings menu Set display brightness Set display mode Set operating mode Define load impedance Reset (Factory settings) Appendix Cleaning Troubleshooting Conditions of warranty (EC only) Technical Data Amplifier Other Amplifier Other... -
Page 4: Getting Started
If you happen to use an AVM model of the PA or SD series as a pre-amplifier, your MA / SA 6.2 can be automatically switched on and off via a connected audio cable – without the need for an additional trigger cable. -
Page 5: Rear
1.2.2 Rear MA 6.2 SA 6.2 Speaker terminal(s) 10 Trigger input (TRIGGER IN) Analog input balanced (XLR) 11 Phase-LED Analog input unbalanced (Cinch/RCA) 12 Mains outlet Configuration port 13 Mains switch 1.2.3 Pin assignment XLR input und Trigger input XLR-Eingang (7) 3,5 mm trigger input (10) -
Page 6: Installation And Cooling
Switch on the unit by pressing the power button (1). The unit performs a self-test while the AVM logo appears on the display (4). During this procedure, you will hear clicks in short succession from the switching relays of the driver stage and supply unit. When this initial check is passed, switch off the amp at the mains switch (1, push once). -
Page 7: Connecting A Pre-Amplifier
The pinning of the trigger outputs is described in section 1.2.3. If you happen to use an AVM model of the PA or SD series as a pre-amplifier, your MA / SA 6.2 can automatically be switched on and off via a connected audio cable – without the need for an additional trigger cable. -
Page 8: Basic Operation And Advanced Settings Menu
Selects the display brightness from 100%, 75%, 50%, to 25%. NOTE: The display brightness can also be remotely controlled, if an AVM model of the PA or SD series is used as a pre-amplifier and remote is set as operating mode (see section 2.6) 2.5 Set display mode... -
Page 9: Set Operating Mode
For details, see section 1.6. remote: If you happen to use an AVM model of the PA or SD series as a pre-amplifier, your MA / SA 6.2 can be automatically switched on and off via inaudible digital signals sent over a connected audio cable –... -
Page 10: Troubleshooting
The unit is operated in remote mode without using a suitable pre-amplifier (such as an AVM SD or PA model). Choose a different operating mode (see section 2.6). 3. After switching off the pre-amplifier the amp does not automatically switch to STANDBY (after approx. -
Page 11: Technical Data
The warranty covers the costs of material and working time, transport costs are to be borne by the owner. Provisions for this warranty are: • The unit must have been purchased from an authorised dealer. Equipment from other sources will not be repaired, not even at charge. •... -
Page 12: Amplifier
Power consumption max. 1000 W Standby < 0,5 W Dimensions (W x H x D) 430 x 130 x 390 mm Weight 18,5 kg SA 6.2 5.3 Amplifier Input impedance Cinch / XLR 6,8 kOhms Signal-to-noise-ratio (SNR) 101 dB(A) Frequeny response <...
