Summary of Contents for Grant-bio LMC-56

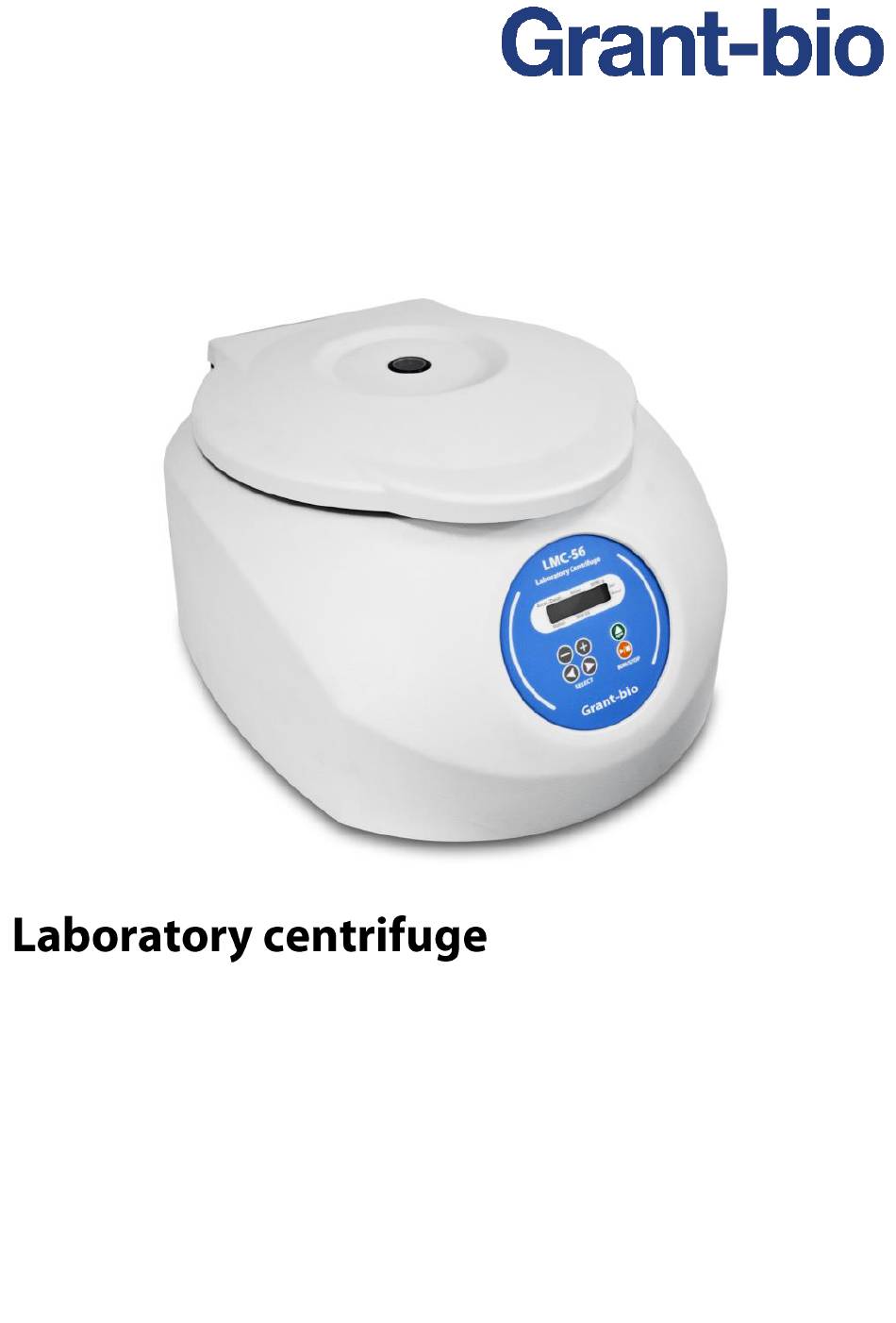

  • Page 1 LMC-56 Operating Manual...
  • Page 2: Table Of Contents

    1. About this edition of user instructions 1.1. The current edition of the user instructions applies to the following models and versions: Model and name Version LMC-56, laboratory centrifuge V.2GD, V.2GE 1.2. Edition 3.01 – November of 2024. Edition 3.01 – November of 2024...
  • Page 3: Safety Precautions

    • If liquid penetrates into the unit, disconnect it from the mains and have it checked by a repair and maintenance technician. • Do not operate the unit in premises where condensation can form. Operating conditions of the unit are defined in section Specifications. Edition 3.01 – November of 2024 LMC-56, laboratory centrifuge Operating manual Page 3...
  • Page 4 • The user is responsible to carry out appropriate decontamination if hazardous material spills on or penetrates into the equipment. Edition 3.01 – November of 2024 LMC-56, laboratory centrifuge Page 4 Operating manual...
  • Page 5: General Information

    3. General information LMC-56 is a modern benchtop, low-speed laboratory centrifuge designed for convenient sedi- mentation, centrifugation and collection of necessary samples. It provides operation with tubes, vacu- tainers, gel cards, microtest and ELISA plates. Our centrifuges are designed for safe work (metal pro- tective housing), easy maintenance and wide application range in medical, biochemical, chemical, in- dustrial and other type of laboratories.
  • Page 6 Caution! Since some plastic tubes and microtest plates can be damaged at higher speeds, maximum speed is limited for some rotors. LMC-56 detects the rotor automatically, see 5.13. If the unit will not be used, close the lid carefully and smoothly until a clicking sound is heard. Set the power switch on the side to position O (off).
  • Page 7: Operation

    RUN/STOP ►/■ key for more than 2 seconds if any unusual noise occurs during acceleration, which can be due to improper rotor fixation. Figure 3. LMC-56 control panel. 5.2. Check the power cable for any signs of damage. Connect the power cable to a properly grounded mains socket.
  • Page 8 4200 3260 Note. LMC-56 detects the rotor and adjusts the speed automatically. See 5.13 for addi- tional information. 5.5.4. Rotation parameters (fig. 3/5). Rotor speed can be set in RPM and in RCF, denoted after numeric value by r and g, accordingly. Values convert after changing units. RCF depends on the installed rotor, as shown in Table 1.
  • Page 9 5.13. Automatic rotor detection for LMC-56. The centrifuge LMC-56 has automatic rotor detection. It detects currently inserted rotor in the beginning of rotation initiation and will automatically limit the RPM of various rotors mentioned in 5.5.3.
  • Page 10: Specifications

    Maximum of 80% RH at 31 °C, decreasing linearly to 50% RH at 40 °C. Humidity requirements Non-condensing atmosphere. Operating height Maximum 2000 m ASL Overvoltage category Pollution degree Edition 3.01 – November of 2024 LMC-56, laboratory centrifuge Page 10 Operating manual...
  • Page 11: Ordering Information

    7.1. Models and versions available: Model Version Description V.3GD 230 V, 50–60 Hz LMC-56, laboratory centrifuge V.3GE 120 V, 50–60 Hz 7.2. To inquire about or order the optional accessories or the replacement parts, contact Grant or your local Grant representative. 7.2.1. Optional accessories.
  • Page 12 Adapter material: Plastic POM-C Ri-24/10 Capacity per rotor: 16 tubes Maximum speed: 4200 RPM Maximum RCF: 3160 g Angle: 90°, swing out Adapter material: Plastic POM-C BR-4U + BA-4/RT Edition 3.01 – November of 2024 LMC-56, laboratory centrifuge Page 12 Operating manual...
  • Page 13 Ri-24/10 + BN-13/100-24 Capacity per rotor: 16 tubes Maximum speed: 4200 RPM Maximum RCF: 3160 g Angle: 90°, swing out Adapter material: Plastic POM-C BR-4U + BA-4/VT + BN-13/100-16 Edition 3.01 – November of 2024 LMC-56, laboratory centrifuge Operating manual Page 13...
  • Page 14 Maximum RCF: 560 g 384-well plates, micro- Angle: 90°, swing out plates, unskirted Adapter material: Plastic Ertacetal C L: 128 mm W: 85.6 mm Ri-2 + AP-384 : 45 mm Edition 3.01 – November of 2024 LMC-56, laboratory centrifuge Page 14 Operating manual...
  • Page 15 Adapters for 12 of 10-15 ml centrifuge tubes (ØxH: 16x90 mm) BN-16/90T Ri-12/10 3160g Adapters for 24 of 10-15 ml centrifuge tubes (ØxH: 16x90 mm) BN-16/90T-24 Ri-24/10 2860g Edition 3.01 – November of 2024 LMC-56, laboratory centrifuge Operating manual Page 15...
  • Page 16: Guarantee And Service

    15 autoclaving cycles! Caution! Never exceed the maximum permissible values for autoclaving temperature and time! Caution! Check the rotors and adapters for integrity and lack of deformations! Edition 3.01 – November of 2024 LMC-56, laboratory centrifuge Page 16 Operating manual...
  • Page 17: Storage And Transportation

    Open the fuse holder, located near the socket (fig. 4). Check and replace with a correct fuse, if necessary, see table below: Model & version Fuse LMC-56 V.3GD, 230 V~, 50–60 Hz M 2 A LMC-56 V.3GE, 120 V~, 50–60 Hz M 4 A Figure 4.
  • Page 18: Eu Declaration Of Conformity

    This product does not contain any Substances of Very High Concern (SVHCs) at greater than 0.1% that have to be identified in accordance with Regulation (EC) No 1907/2006 and therefore does not have an entry in the SCIP database. Edition 3.01 – November of 2024 LMC-56, laboratory centrifuge Page 18 Operating manual...
  • Page 19 This page intentionally left blank. Edition 3.01 – November of 2024 LMC-56, laboratory centrifuge Operating manual Page 19...
  • Page 20 Evolution House, Unit 2, Durham Way Grant Instruments Europe B.V Royston Gateway Strawinskylaan 411 Royston WTC, Tower A, 4th Floor SG8 5GX 1077 XX Amsterdam The Netherlands Tel: +44 (0) 1763 260811 Email: grant@eu.grantinstruments.com Email: salesdesk@grantinstruments.com www.grantinstruments.com Laboratory centrifuge / LMC-56 / 3.01...
