Densitometer
Suspension turbidity detector
DEN-1 & DEN-1B
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEN-1 and is the answer not in the manual?

Questions and answers

Kaushik
March 10, 2025

if we are taking reading of NSS without culture it give 0.25 mcfarland. Shall we adjust the suspension to 0.75 to get 0.5 mcfarland value

1 comments:
Mr. Anderson
March 10, 2025

Yes, the suspension should be adjusted to 0.75 McFarland. Since the reading without culture is 0.25 McFarland, to reach a 0.5 McFarland value, the suspension must be increased by 0.25 McFarland. Adding this to the initial 0.5 McFarland requirement results in a total of 0.75 McFarland.

This answer is automatically generated

Summary of Contents for Grant-bio DEN-1

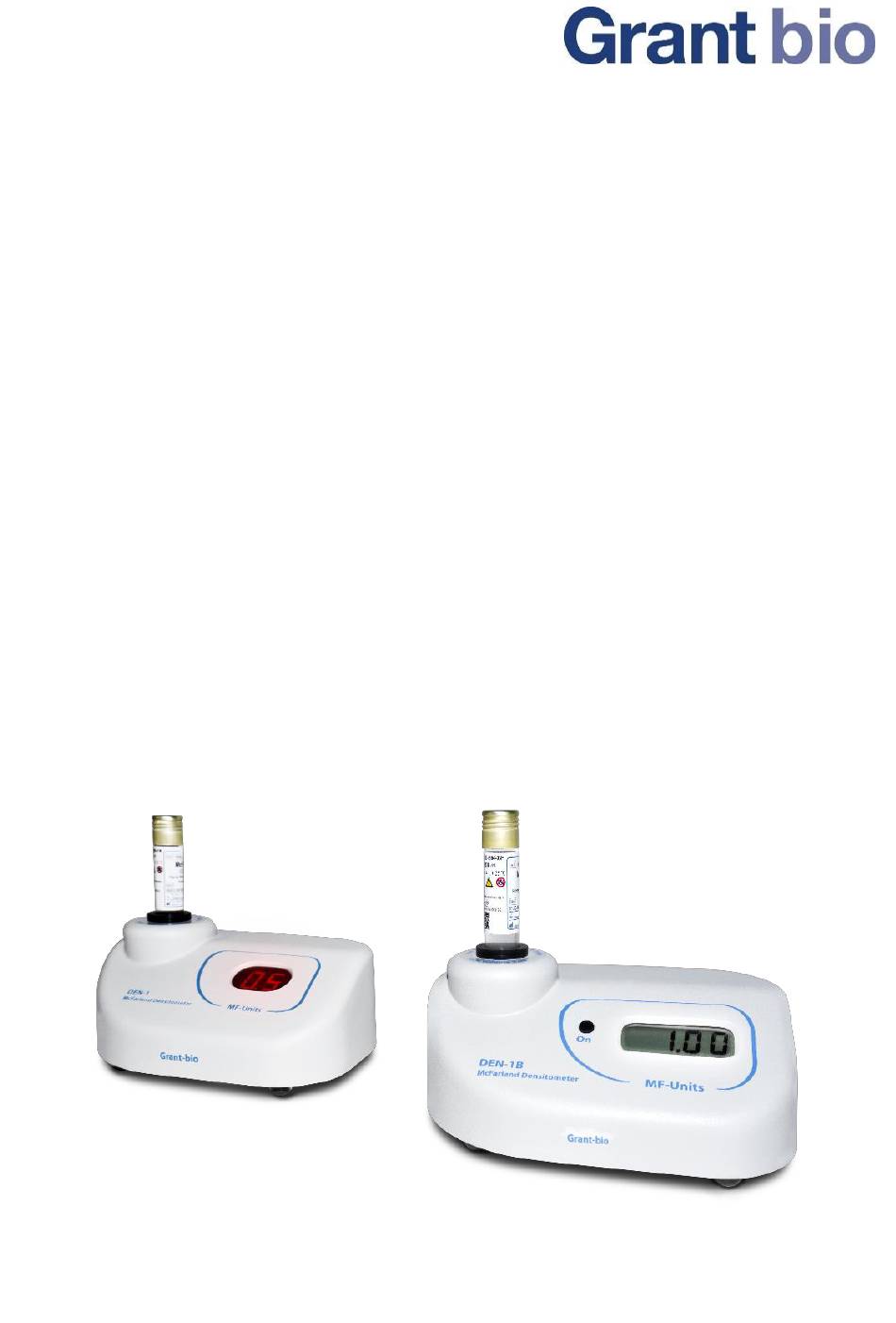

  • Page 1 Densitometer Suspension turbidity detector DEN-1 & DEN-1B Operating instructions...
  • Page 2: Table Of Contents

    The current edition of the operating instructions applies to the following models and versions of densitometers, suspension turbidity detectors:  DEN-1 version V.2GW  DEN-1B version V.2GW Edition 2.03 – March 2018 Densitometers, suspension turbidity detectors DEN-1 & DEN-1B Page 2 Operating instructions...
  • Page 3: Safety Precautions

     Remove batteries from the unit if it will not be used for several months to avoid battery leakage. Edition 2.03 – March 2018 Densitometers, suspension turbidity detectors DEN-1 & DEN-1B Operating instructions Page 3...
  • Page 4 BIOLOGICAL SAFETY  It is the user’s responsibility to carry out appropriate decontamination if hazardous material is spilt on or penetrates into the equipment. Edition 2.03 – March 2018 Densitometers, suspension turbidity detectors DEN-1 & DEN-1B Page 4 Operating instructions...
  • Page 5: General Information

    15.0 McFarland units, however, it is necessary to remember that in this case the measurement error values increase. DEN-1 & DEN-1B densitometers are used as a sample preparation devices for 1) determining concentration of cells in the fermentation process, 2) detection of susceptibility of microorganisms...
  • Page 6: Getting Started

    4.2. Complete set. Package contents: 4.2.1. Standard set DEN-1 / DEN-1B Densitometer, suspension turbidity detector ........1 pce. A-16 adapter for Ø16 mm tubes ..................1 pce. AA batteries (for DEN-1B only) ..................3 pcs. External power supply ....................1 pce.
  • Page 7: Operation

    The following indication may be shown on the display (fig. 3/2):  0.0 (DEN-1) or 0.00 (DEN-1B) - the unit is calibrated and ready for operation.  LO BAT (DEN-1B) - low batteries, replace the batteries as described in 4.3 or connect the external power supply.
  • Page 8: Calibration

    Perform calibration from lower to higher calibration value. Use at least 2 points for calibration. Different calibration points are available:  For DEN-1, calibration points are 0.5, 1.0, 2.0, 3.0, 4.0 and 5.0.  For DEN-1B, calibration points are 0.00, 0.50, 1.00, 2.00, 3.00, 4.00, 5.00 and 6.00.
  • Page 9: Specifications

    Set of 0.0, 0.5, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0 McF turbidity standards Tubes 78 glass sample tubes, 16x100x0.8 mm. Factory standard Accurate within ±10% For DEN-1, calibration is possible only up to 5.0 McF Edition 2.03 – March 2018 Densitometers, suspension turbidity detectors DEN-1 & DEN-1B Operating instructions...
  • Page 10: Guarantee And Service

    Cleaning. Standard ethanol (75%) or other cleaning agents recommended for cleaning of laboratory equipment can be used for cleaning and decontamination of the unit. Edition 2.03 – March 2018 Densitometers, suspension turbidity detectors DEN-1 & DEN-1B Page 10 Operating instructions...
  • Page 11: Eu Declaration Of Conformity

    We declare that this product conforms to the requirements of the above Directives ____________________ ____________________ Signature Signature Svetlana Bankovska Aleksandr Shevchik Managing director Engineer of R&D ____________________ ____________________ Date Date Edition 2.03 – March 2018 Densitometers, suspension turbidity detectors DEN-1 & DEN-1B Operating instructions Page 11...
  • Page 12 Grant Instruments (Cambridge) Ltd Shepreth Cambridgeshire SG8 6GB Tel: +44 (0) 1763 260811 Fax: +44 (0) 1763 262410 Email: salesdesk@grantinstruments.com www.grantinstruments.com Densitometers, Suspension turbidity detectors / DEN-1 & DEN-1B / 2.03...
