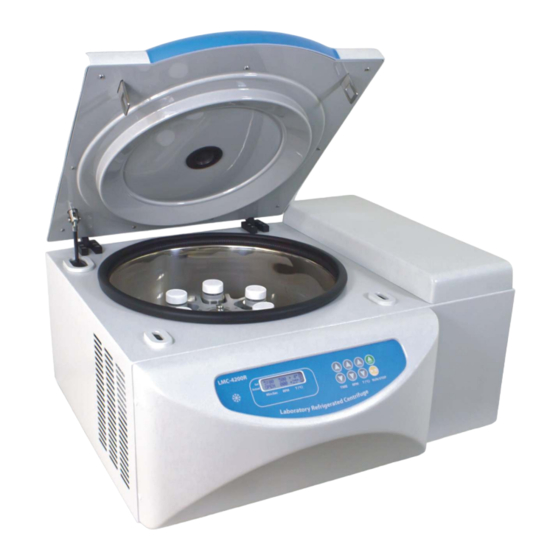

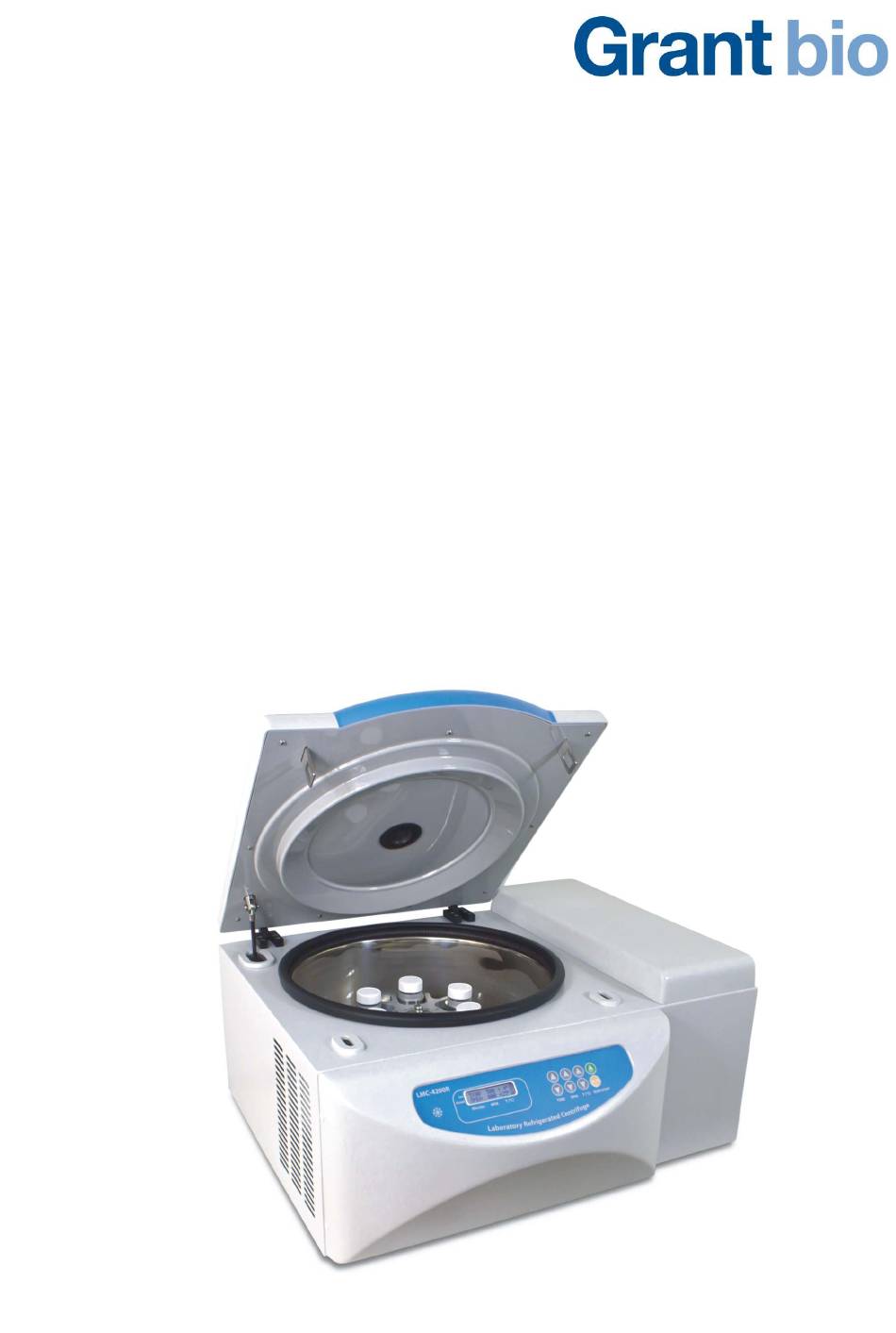

- Page 1 Refrigerated Laboratory Centrifuge LMC-4200R Operating instructions For version V.2GD...
-
Page 2: Table Of Contents
Contents Safety .................4 General Information ............6 Getting started..............7 Operation of Centrifuge ............9 Specifications ..............12 Guarantee and service............13 Declaration of Conformity ..........15 Version 2.01 - October 2012 Refrigerated Laboratory Centrifuge LMC-4200R Page 2 Operating Instructions... -
Page 3: Safety
It is the user's responsibility to carry out appropriate decontamination if hazardous material is spilt on or inside the equipment. If liquid is split inside the unit, disconnect it from the mains and have it checked by a competent person. Refrigerated Laboratory Centrifuge LMC-4200R Version 2.01 - October 2012 Page 3... - Page 4 It is the user's responsibility to carry out appropriate decontamination if hazardous material is spilt on or inside the equipment. Version 2.01 - October 2012 Refrigerated Laboratory Centrifuge LMC-4200R Page 4 Operating Instructions...
-
Page 5: General Information
(metabolites, enzymes, hormonal factors, cytokines, etc.). Lack of temperature control at this stage can cause unpredictable results. LMC-4200R is a modern centrifuge designed for operation with microtest plates and tubes from 10 to 50 ml. -
Page 6: Getting Started
Remove packaging carefully, and retain for future shipment or storage of the unit. 3.2. The Laboratory The set includes: Standard set Refrigerated Laboratory Centrifuge LMC-4200R ..........1 pce. · A spare fuse (inside the fuse holder) ..............1 pce. · Power cord ......................1 pce. - Page 7 Hold the rotor as shown on Fig. 2 (Correct). Replace the rotor and secure the new rotor carefully and turning the fixation nut tightly. · Wrong Correct Fig.2 Rotor fixation Refrigerated Laboratory Centrifuge LMC-4200R Version 2.01 - October 2012 Page 7 Operating Instructions...
-
Page 8: Operation Of Centrifuge
4.2. The centrifuge turns on and the display shows the following readouts: previously set time, temperature and speed in the upper line (Set p.); Version 2.01 - October 2012 Refrigerated Laboratory Centrifuge LMC-4200R Page 8 Operating Instructions... - Page 9 ) and open the lid lifting it upwards with a hand (it is possible to open the lid only when the rotor is stopped). Emergency opening tool Fig.4 Frontal and right side of the centrifuge Refrigerated Laboratory Centrifuge LMC-4200R Version 2.01 - October 2012 Page 9 Operating Instructions...
- Page 10 Press the small wrench till the click sounds and release the lid lock. Note! With emergency stop (power interruption) it is necessary to wait for 3 min before connecting to power again. Version 2.01 - October 2012 Refrigerated Laboratory Centrifuge LMC-4200R Page 10 Operating Instructions...
-
Page 11: Specifications
• Display ........................LCD • Nominal operating voltage/ power consumption ..230 V, 50/60 Hz / 990 W (4.3 A) • Dimensions (WxDxH) ..............635x580x335 mm • Weight, not more ....................62 kg Refrigerated Laboratory Centrifuge LMC-4200R Version 2.01 - October 2012 Page 11 Operating Instructions... - Page 12 13 x 100 mm BN-13-100 R-12-10 For vacutainers 8-9 ml 16 x 100 mm BN-16-100 Grant is committed to a continuous programme of improvement, specifications may be changed without notice. Version 2.01 - October 2012 Refrigerated Laboratory Centrifuge LMC-4200R Page 12 Operating Instructions...
-
Page 13: Guarantee And Service
Condenser cleaning. Disconnect the unit from the mains. Unscrew four screws and remove a grate panel situated on the rear panel of the unit. Remove the dust with vacuum cleaner. Re-assambe the unit. Refrigerated Laboratory Centrifuge LMC-4200R Version 2.01 - October 2012 Page 13... -
Page 14: Declaration Of Conformity
(fig.5/ ). Remove the fuse from the holder. Check and replace with the correct fuse if necessary (for 230V - 6.3A). Fig.5 Fuse holder Version 2.01 - October 2012 Refrigerated Laboratory Centrifuge LMC-4200R Page 14 Operating Instructions... - Page 15 Refrigerated Laboratory Centrifuge LMC-4200R Version 2.01 - October 2012 Page 15 Operating Instructions...
- Page 16 Grant Instruments (Cambridge) Ltd Shepreth Cambridgeshire SG8 6GB Tel: +44 (0) 1763 260811 Fax: +44 (0) 1763 262410 Email: scientificsales@grantinstruments.com www.grantinstruments.com Refrigerated Laboratory Centrifuge/ LMC-4200R 2.01...
