Summary of Contents for Grant-bio PTR-35

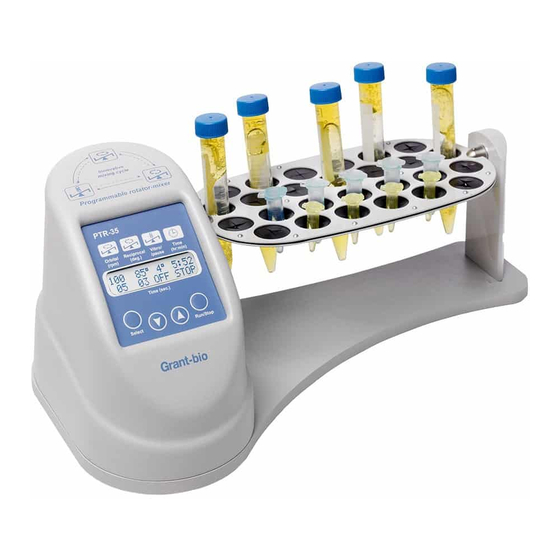

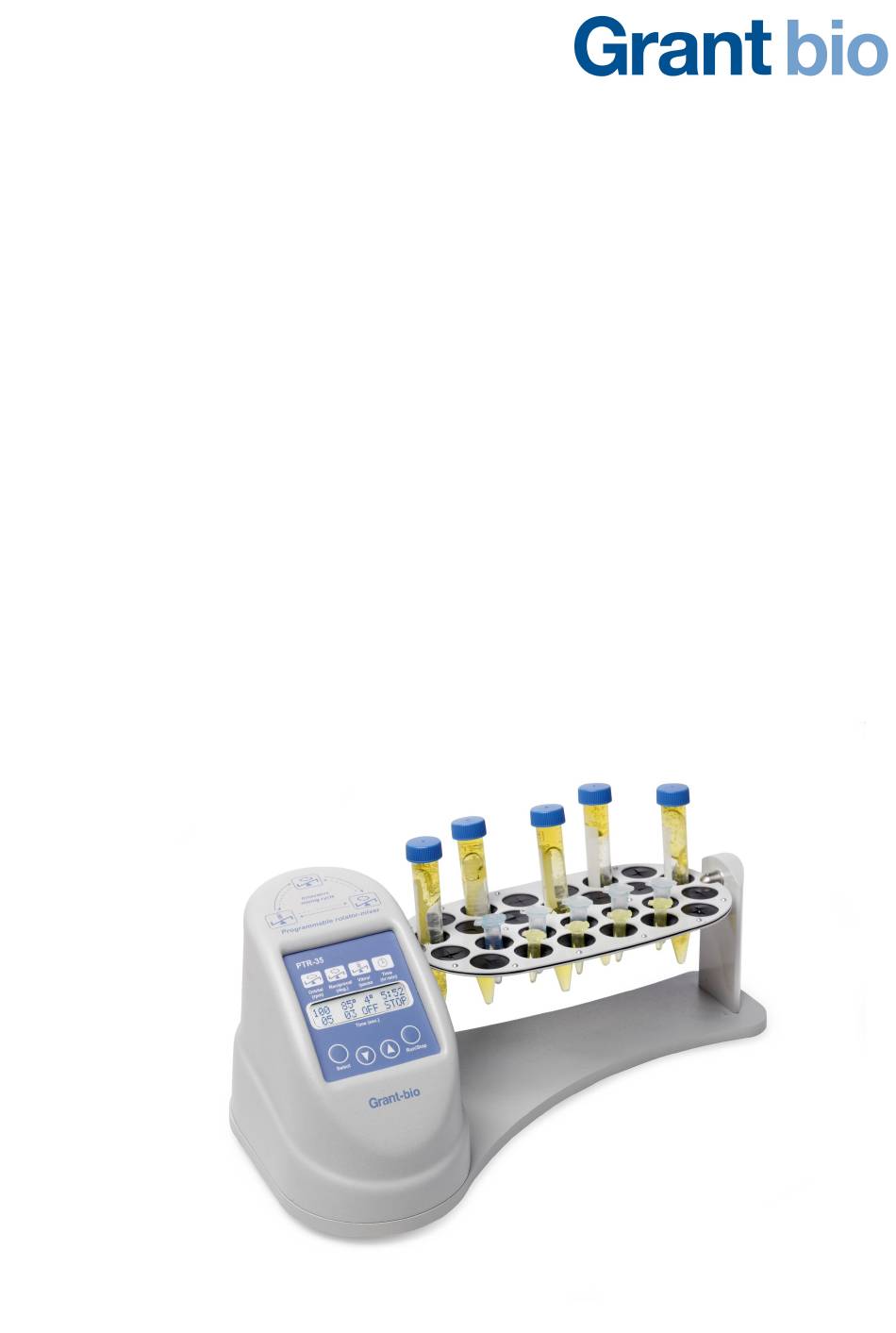

- Page 1 Rotator PTR-35 Operating instructions For version: V.3GW...
- Page 2 Version 3.03 - July 2013 Rotator PTR-35 Page 2 Operating instructions...
-
Page 3: Table Of Contents
Contents Safety ...................4 General Information..............5 Getting Started ................6 Operation of PTR-35 ..............8 Program setting ................10 Specifications................12 Guarantee and service .............14 Rotator PTR-35 Version 3.03 - July 2013 Operating instructions Page 3... -
Page 4: Safety
Do not place a load exceeding the maximum load value mentioned in the specifications section of these operating instructions. BIOLOGICAL SAFETY It is the user's responsibility to carry out appropriate decontamination if hazardous material is spilt on or penetrates into the equipment. Version 3.03 - July 2013 Rotator PTR-35 Page 4 Operating instructions... -
Page 5: General Information
• Working period from 1 min to 24 hours, or non-stop. Applications • Rotator PTR-35 is designed for mixing biological solutions, cell suspensions, magnetic particles conjugated with specific antibodies as well as incubation and cultivation of biological liquids according to the operator set program. -
Page 6: Getting Started
Remove packaging carefully, and retain for future shipment or storage of the unit. Examine the unit carefully for any damage incurred during transit. The warranty does not cover in-transit damage. Rotator PTR-35 set includes: • Rotator PTR-35 ................1 piece • PRS-26 platform u ................1 piece • External power supply unit...............1 piece •... - Page 7 Principle operation Principle operation The principle of operation of the PTR-35 is based on the creation of rotational movement of The principle of operation of the PTR-35 is based on the creation of rotational movement of The principle of operation of the PTR-35 is based on the creation of rotational movement of...
-
Page 8: Operation Of Ptr-35
4. Operation of PTR-35 Multi-Rotator Orbital Reciprocal Vibro/ Time (rpm) (deg.) /pause (hr:min) 1- 0 1 0 1-90 0-24 1-250 1-250 Time (sec.) Select Stop Fig. 1 Control panel Recommendation during operation Arrange the tubes symetrically to the rotation axis when loading. - Page 9 4.10. Disconnect the external power supply unit from electric circuit to turn off the unit. Rotator PTR-35 Version 3.03 - July 2013 Operating instructions Page 9...
-
Page 10: Program Setting
1–250 sec) for Reciprocal motion. Set the turning angle (y 0–5º) and time (z 1–5 sec) for Vibro motion. Set the general timer ({ 0:00 time set cause continuous operating). Version 3.03 - July 2013 Rotator PTR-35 Page 10 Operating instructions... - Page 11 When working with the unit in vibro motion mode for long period nonstop and using the platform with rubber clamps, choose the tubes not longer than 7 cm from cap till bottom. Rotator PTR-35 Version 3.03 - July 2013 Operating instructions...
-
Page 12: Specifications
• External power supply unit ..... input AC 100–240 V 50/60 Hz, output DC 12 V • Weight*......................1.7 kg * Accurate within ±10%. Grant is committed to a continuous programme of improvement, specifications may be changed without notice. Version 3.03 - July 2013 Rotator PTR-35 Page 12 Operating instructions... - Page 13 200 g. for 2–50 ml Falcon tubes platform with metal clamps Vibro motion Microtube type tubes only Up to 100 g. Table 1. Recommended load depending on motion types Rotator PTR-35 Version 3.03 - July 2013 Operating instructions Page 13...
-
Page 14: Guarantee And Service
Cleaning & disinfection Standard ethanol (75%) or other cleaning agents recommended for cleaning of laboratory equipment can be used for cleaning and disinfection of the unit. Version 3.03 - July 2013 Rotator PTR-35 Page 14 Operating instructions... - Page 15 Rotator PTR-35 Version 3.03 - July 2013 Operating instructions Page 15...
- Page 16 Grant Instruments (Cambridge) Ltd Shepreth Cambridgeshire SG8 6GB Tel: +44 (0) 1763 260811 Fax: +44 (0) 1763 262410 Email: scientificsales@grantinstruments.com www.grantinstruments.com Rotator/PTR-35/29974/3.03...
