MS-6728 ATX Mainboard

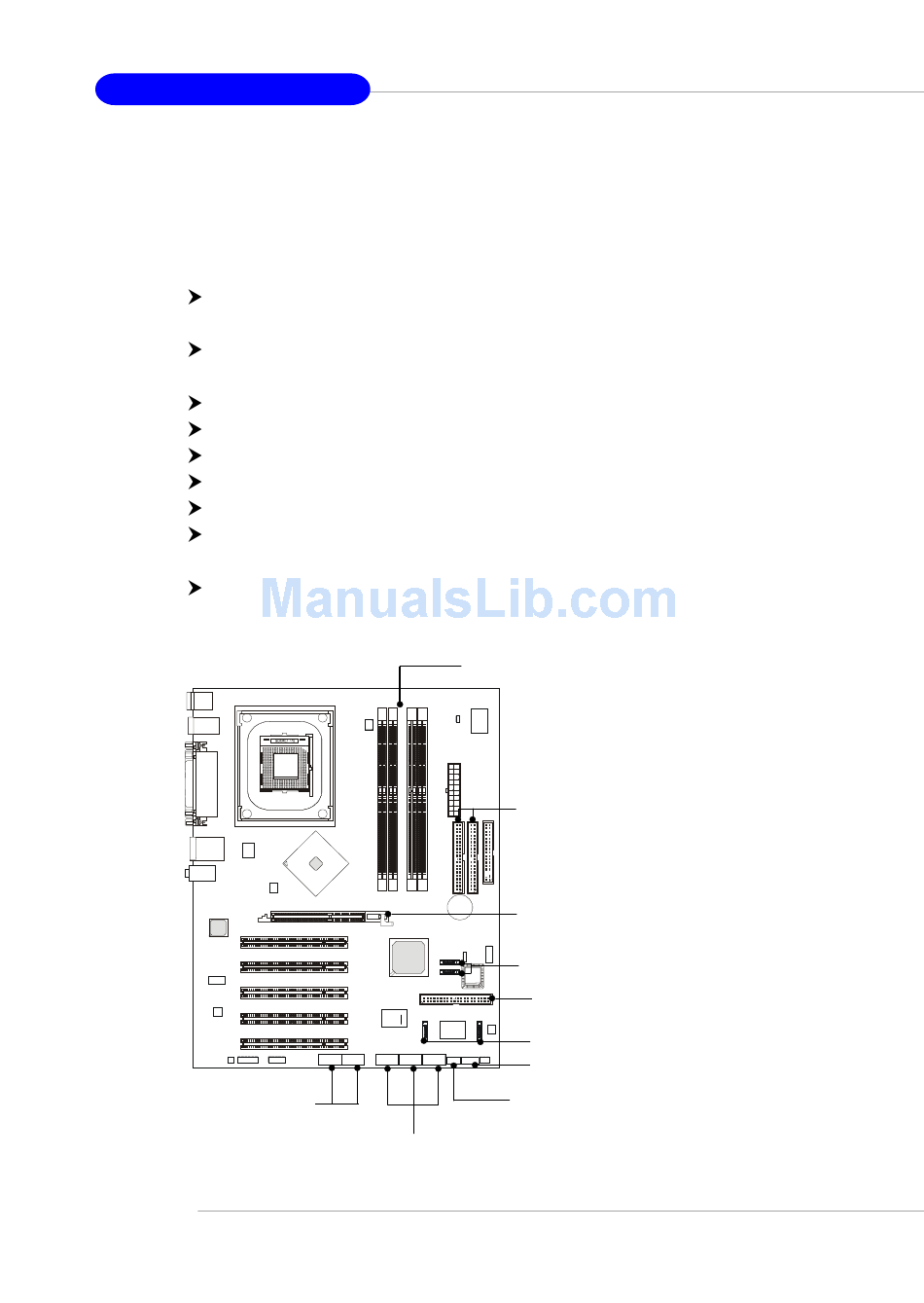

Color Management

MSI has an unified color management rule for some connectors on the
mainboards, which helps you to install the memory modules, expansion cards
and other peripherals devices more easily and conveniently.
Dual Memory DDR DIMMs: Channel A in light green, Channel B
purple
Intel spec IDE ATA66/100 connector: 1st IDE in blue, 2nd IDE in
white
IDE ATA133 connector: yellow
Serial ATA150 connector: orange
AGP 8X slot: red
1394 conncetor: dark green
USB 2.0 connector: yellow
Front panel connector JFP1 : HDD LED in red, Reset Switch in blue,
Power Switch in black, Power LED in light green.
Front panel connector JFP2: Power LED in light green.
USB 2.0 connector
1-14
Memory DDR DIMMs
BATT
+
Front Panel connector JFP2
1394 connectors
Intel spec IDE ATA66/100 connectors:
1st IDE: blue/2nd IDE: white
AGP 8X Slot
Serial ATA150 connectors
IDE ATA133 connector
Serial ATA150 connectors
Front Panel connector JFP1
