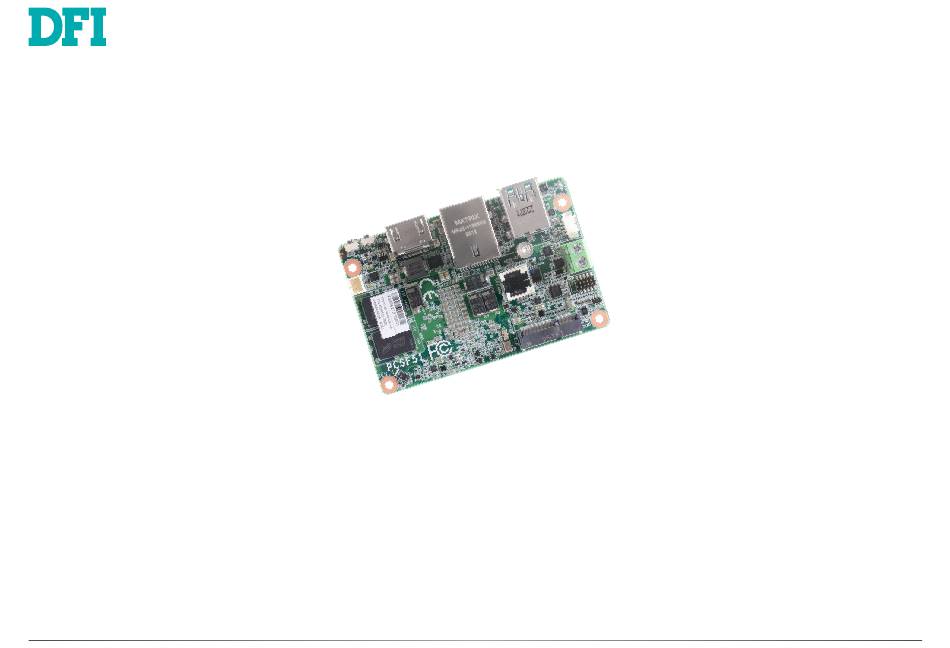

- Page 1 PCSF51 Embedded 1.8" SBC User’s Manual © March 15, 2023 DFI Inc.
- Page 2 1. The changes or modifications not expressly approved by the party responsible for com- are the properties of the respective owners. pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | PCSF51...
-
Page 3: Table Of Contents
USB Power Control ......................21 Security ..........................22 Secure Boot ........................22 ► Key Management ................23 Secure Boot Boot ............................24 Save & Exit ..........................24 Updating the BIOS ........................25 Notice: BIOS SPI ROM......................25 Appendix A- Mating Connectors ....................26 The Mating Connectors List ....................26 User's Manual | PCSF51... - Page 4 It must be returned to the purchase point, factory or authorized service agency for all such work. 4. We will not be liable for any indirect, special, incidental or consequential damages to the product that has been modified or altered. User's Manual | PCSF51...
- Page 5 Make sure the system is placed or mounted correctly and stably to prevent the chance of dropping or falling may cause damage. • The openings on the system shall not be blocked and shall be kept in distance from User's Manual | PCSF51...
-
Page 6: Chapter 1 - Introduction
TIMER Interval SECURITY fTPM 2.0 POWER Type Single 12V +/-5% DC Connector 2-pin Terminal Block Consumption RTC Battery CR2032 Coin Cell OS SUPPORT Microsoft Windows 10 IoT Enterprise 64-bit Linux Linux (Kernel 5.4) Ubuntu 20.04 LTS User's Manual | PCSF51... - Page 7 Dimensions 1.8" SBC Form Factor 84mm (3.31") x 55mm (2.17") MECHANISM Height PCB: 1.60mm Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH ENVIRONMENT Storage: 5 to 90% RH MTBF User's Manual | PCSF51...
-
Page 8: Dimensions
Chapter 1 INTRODUCTION X Dimensions X Block Diagram User's Manual | PCSF51... -
Page 9: Chapter 2 - Hardware Installations
If a wrist strap is unavailable, establish and main- tain contact with the system chassis throughout any procedures requiring ESD protection. User's Manual | PCSF51... -
Page 10: Standby Power Led
If a wrist strap is unavailable, establish and main- tain contact with the system chassis throughout any procedures requiring ESD protection. User's Manual | PCSF51... -
Page 11: Pin Assignment
X Pin Assignment DC Power Connector (CN6) System Fan (J3000) SC110 SC110 U312 U312 J3000 J3000 LAN1 M2CN1-G3 LAN1 M2CN1-G3 U333 U333 U334 U334 LC804 LC804 M.2 E Key M.2 E Key Assignment Assignment DC-IN 12VSB User's Manual | PCSF51... -
Page 12: Uart Debug (J12)
UART Debug (J12) SC110 SC110 U312 U312 J3000 J3000 LAN1 M2CN1-G3 LAN1 M2CN1-G3 U333 U333 U334 U334 LC804 LC804 M.2 E Key M.2 E Key Assignment Assignment 5VSB DIO0 UART_TX DIO1 DIO2 DIO3 DIO4 DIO5 DIO6 DIO7 User's Manual | PCSF51... -
Page 13: Expansion Slots
M.2 Module M.2 Socket a stand-off screw until the gap between the card and the stand- off closes up. The card should be Stand-off lying parallel to the board when it’s Notch correctly mounted. User's Manual | PCSF51... -
Page 14: Assembly
I n t e Heat spreader side to chassis Module side to chassis S i d e C P U s i s h a s User's Manual | PCSF51 T o C... -
Page 15: Chapter 3 - Bios Settings
When “X” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>. User's Manual | PCSF51... -
Page 16: Main
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | PCSF51... -
Page 17: Acpi Configuration
AMD CHIPSET Setting ACPI Configuration AC Loss Control Wake On PCIE Select AC Loss Control Method. Enable/Disable integrated LAN to wake the system. GFX Configuration Wake On RTC GFX Configuration. Resume by RTC Alarm after S5 shutdown. User's Manual | PCSF51... -
Page 18: Cpu Configuration
To clear the existing TPM encryption, select "TPM Clear" and restart the system. This field is not available when "Security Device Support" is disabled. NX Mode Enable/Disable No-execute page protection Function. SVM Mode Enable/Disable CPU Virtualization. User's Manual | PCSF51... -
Page 19: Watchdog Configuration
Chapter 3 BIOS SETTINGS Advanced Advanced PC Health Status WatchDog Configuration Monitor hardware status WatchDog1 function Enable/disable WatchDog Timer. User's Manual | PCSF51... -
Page 20: Usb Configuration
Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | PCSF51... -
Page 21: Usb Power Control
Chapter 3 BIOS SETTINGS Advanced USB Power Control Server CA Configuration 5_Dual: Support system wake up from S3/S4 by USB KB&MS 5V: No support system wake up from S3/54 by USB KB&MS User's Manual | PCSF51... -
Page 22: Security
Secure Boot. Press Enter and a prompt will show up for you to confirm. Reset To Setup Mode Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. User's Manual | PCSF51... -
Page 23: Secure Boot ► Key Management
Copy NVRAM content of Secure Boot variables to files in a root folder on a file system device. Enroll Efi Image Allow the image to run in Secure Boot mode. Enroll SHA256 Hash certificate of a PE image into Authorized Signature Database (db). Restore DB defaults Restore DB variable to factory defaults. User's Manual | PCSF51... -
Page 24: Boot
To restore and load the optimized default values, select this field and then press <Enter>. A Boot Option Priorities dia-log box will appear. Select Yes to restore the default values of all the setup options. Rearrange the system boot order of available boot devices. User's Manual | PCSF51... -
Page 25: Updating The Bios
When the BIOS IC needs to be replaced, you have to populate it properly onto the system board after the EEPROM programmer has been burned and follow the technical person's instructions to confirm that the MAC address should be burned or not. User's Manual | PCSF51... -
Page 26: Appendix A- Mating Connectors
Please refer to the following list of the mating connectors. Function Connector Connector information Rate output System Fan J3000 E-CALL, WAFER, 0110-3221030: 1*3,1.25mm , wafer +12VSB/0.5A Uart Debug PINREX 220-96-02GB01: 1*2,2.0mm, PIN PLUG Debug use V-STAR SHY-JCL180810P: 2*5, 1.27mm, PIN PLUG +5V/1A User's Manual | PCSF51...
