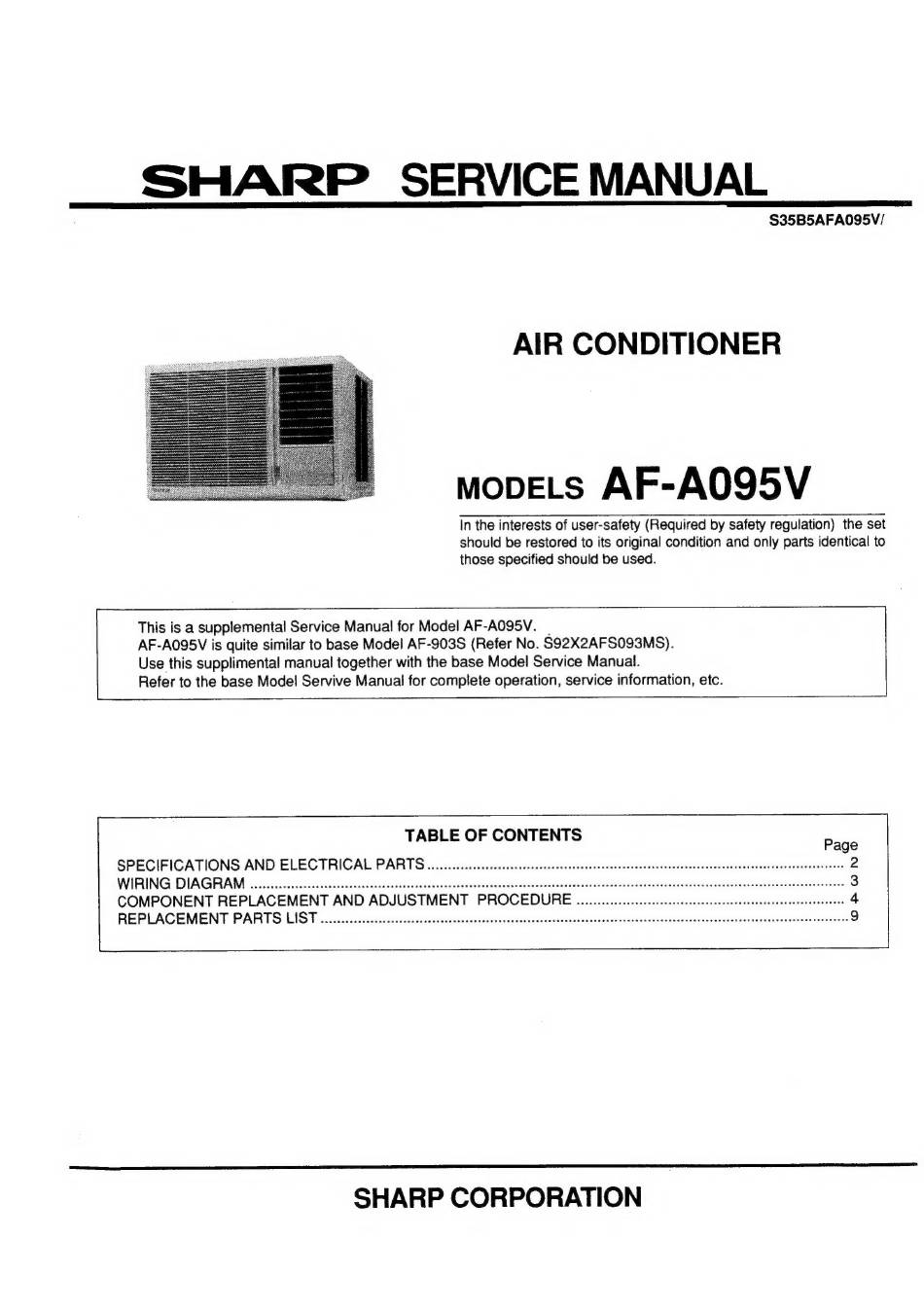

Sharp AF-A095V Service Manual

SHARP SERVICE MANUAL
S35B5AFA095V/
AIR CONDITIONER
MopELs AF-A095V
In the interests of user-safety (Required by safety regulation) the set
should be restored to its original condition and only parts identical to
those specified should be used.
This is a supplemental Service Manual for Model AF-AQ95V. _ _
AF-AO95V is quite similar to base Model AF-903S (Refer No. S92X2AFS093MS).
Use this supplimental manual together with the base Model Service Manual.
Refer to the base Model Servive Manual for complete operation, service information, etc.
TABLE OF CONTENTS Page
SPECIFICATIONS AND ELECTRICAL PARTS ...0.... cc ccecscsccseesscteeseesessseesecaesneessesneevaceeenescseenseneesaeraenresseseneasengiats 2
WIRING: DIAGRAM. ciccisccccsseccesesassessesssssnctesne
conse sxe cnsuene cccemebestavenndewprecsd gaaslectnctemn nresu nesta aatnestnalamesteancastnedeeiy Gert ventas 3
COMPONENT REPLACEMENT AND ADJUSTMENT
PROCEDURE .........cccseccseceececseceesaecseecneneesnaeeseeeeeaseeas 4
REPLACEMENT PARTS LISD svsiccscossziesipacscavuceencperanessuentacnsnsieuxpatvevedveuadesiescdtveesteaahdctbbessavaneecsdbeasidadendectarsmeetasentans 9
SHARP CORPORATION
