audium Comp 3.2 Active User Manual page 9

Controls and Connectors of Comp 8
3
2
2
6
4
8

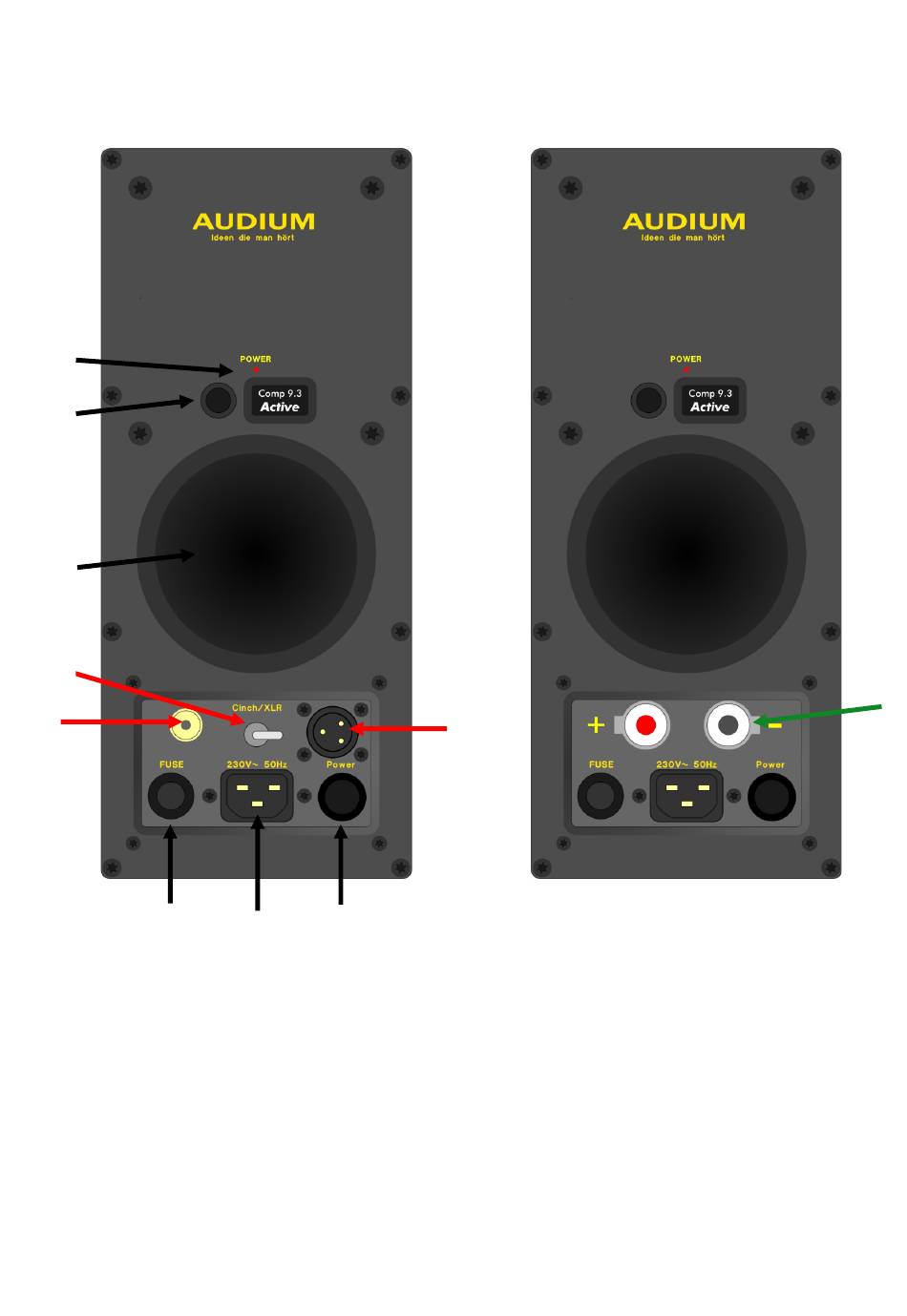

1. Display: OLED graphic display shows the current speaker status.
2. Rotary Knob / push-button for navigation in the menu
and setting of the speaker parameters.
Power LED: lights red when speaker is active, dimmed red when in standby
3.
4. Line - Input:
5. XLR - Input:
6. Select Switch:
7. Speaker Input:
Note: Note the polarity + (red) and - (white).
8. Fuse – always replace with a fuse of the same value
9. Power switch: push to turn on the speaker
10. Power socket: Insert here the end of the power supply cable
11. Bass-Reflex tube: Emmits deep frequencies. Do not remove the foam plug!
