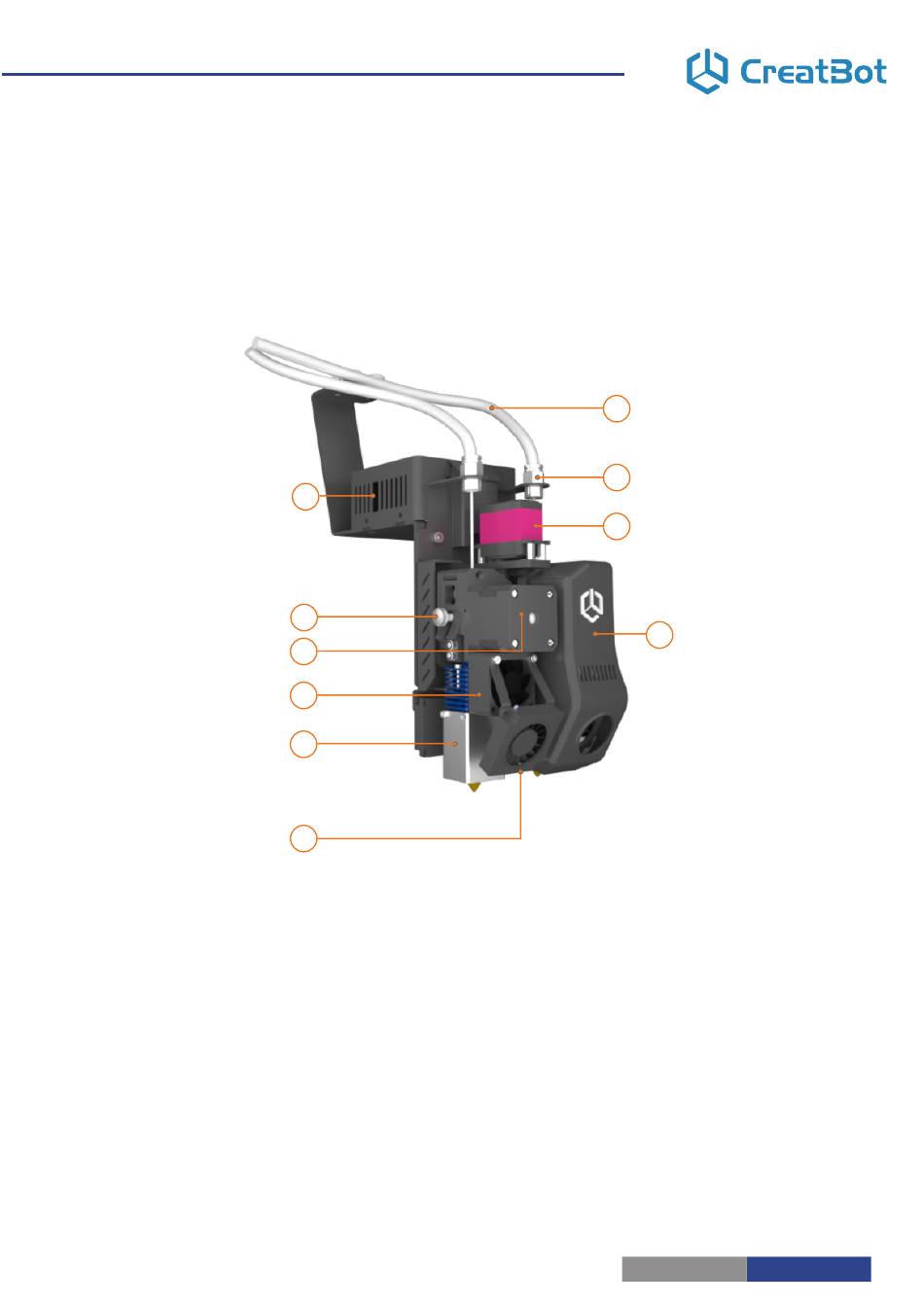

Machine Diagram
PCB box
Filament spring nut
Extruder motor
Sink fan
Quickly remove hotend
Cooling fan front
Print Head
1
2
3
4
5
6
- 5 -
7
Feeding tube
8
Feeding tube connector
9
Servo for lifting nozzle
10
Extruder cover
