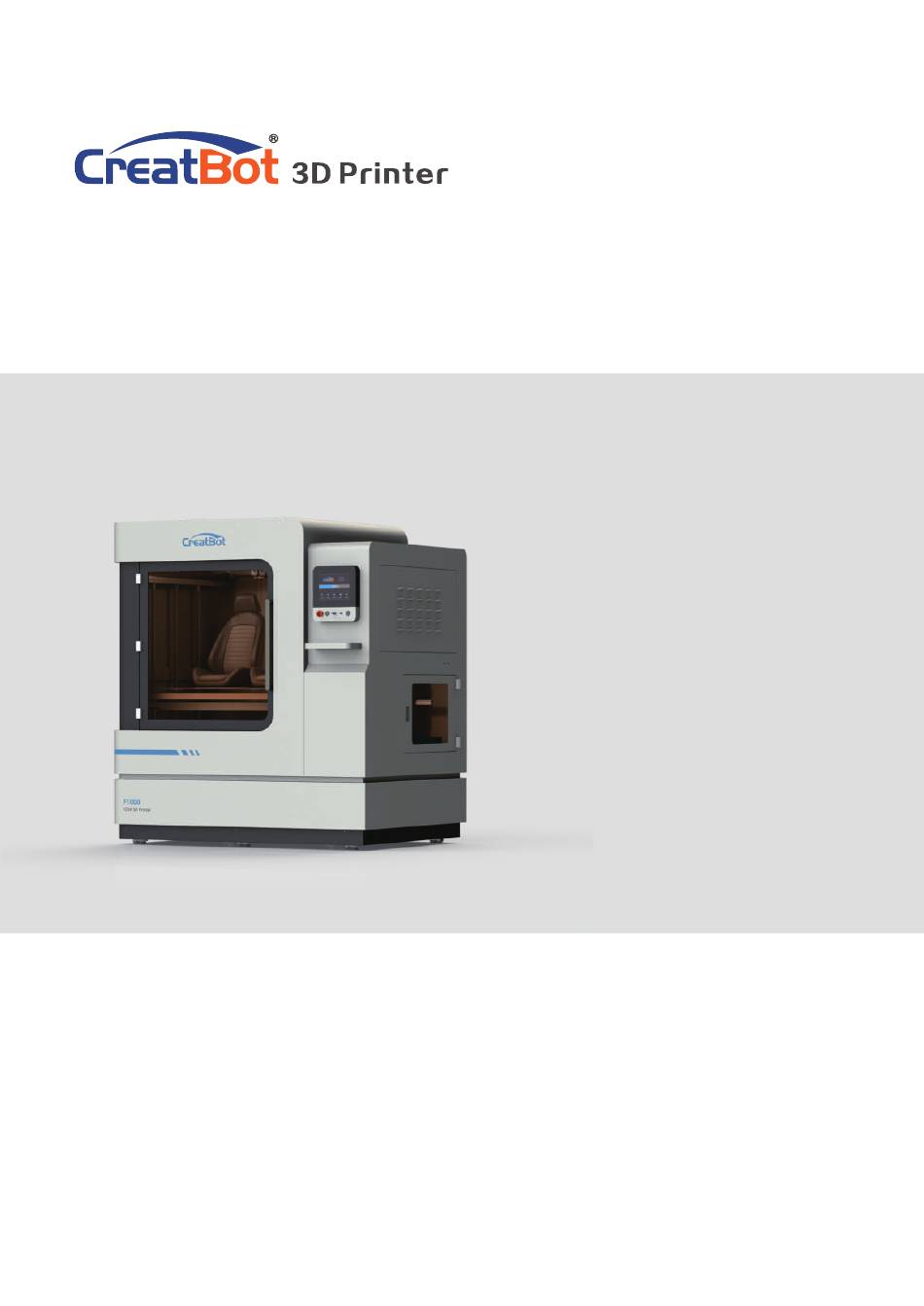

- Page 1 CreatBot 3D Printer User manual English V7.3 Henan Suwei Electronics Technology Co., Ltd. - 1 -...
-
Page 2: Table Of Contents
CONTENTS Notice ················································ 3 Model Mirror ·························· 22 Machine Diagram View Mode ······························ 23 Front ············································ 4 Right Click on Model ··········· 24 New Printer Head ··················· 5 Toolpath Structure ················ 24 Printer Operation Basic Setting ··························· 25 Leveling Platform ··················· 6 Advanced Setting ·················... -
Page 3: Notice
Please use the filament provided by CreatBot, or high quality filament by third manufacturers. Due to the use of third party inferior material caused by the failure of the printer, the loss will be borne by the user. -
Page 4: Machine Diagram
Machine Diagram Front Touch screen Power switch U disk input Indicator light USB input Stop button Switch lock Universal Wheel - 4 -... -
Page 5: New Printer Head

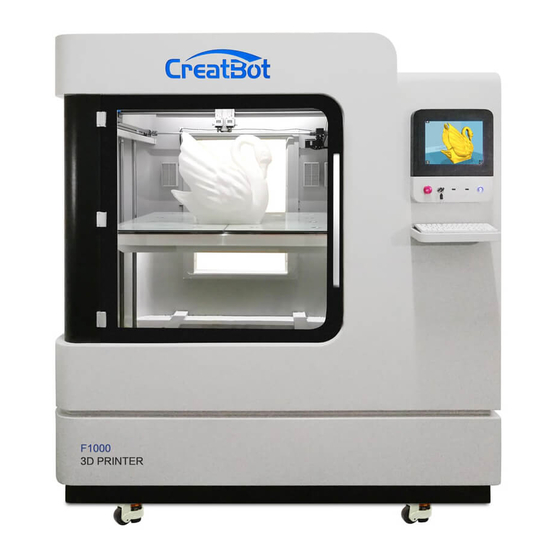

Machine Diagram New Printer Head 1. PCB box 6. Heat sink 12.Heating tube 2. Extruder box 7. Heatbreak 13.Cooling fan 3. Extruder motor 8. Heat block 14. Cooling fan 4. Filament press 9. Nozzle 15.Connector button 10.Bltouch 16.Feeding tube 5. X limited switch 11.Thermistor - 5 -... - Page 6 Machine Diagram F1000 Has three new features Auto leveling system Auto-leveling working plate make leveling easily Hot Chamber system can make inside Filament dry room have 2 temperature temperature up to 60 degree. options to set. (45 degree /65 degree.) Note: The PLA,PVA,HIP filaments are disable the drying function of the consumables bin.
-
Page 7: Printer Operation
Printer Operation Leveling Platform 0 ° C 0 ° C 0 ° C 0 ° C 23 ° C 23 ° C 23 ° C 23 ° C - 7 -... - Page 8 How to levelling the bed for the first time? The entire platform consists of beams, brackets and four glass platforms. Ⅰ Leveling platform manually 1. Turn on the printer. 2. On touch screen, press “Move axis” -> “All home” to return the axis XYZ to zero. 3.
-
Page 9: Load Filament
Printer Operation Load Filament 0 ° C 0 ° C 0 ° C 0 ° C 23 ° C 23 ° C 23 ° C 23 ° C Preheat head Straightened filament Load filament Tighten the nut 1.Preheat the hotend before loading filament. 2.Straightened filament and check the filament do not self-winding. -
Page 10: Unload Filament
Printer Operation Unload/Change Filament 0 ° C 0 ° C 0 ° C 0 ° C 23 ° C 23 ° C 23 ° C 23 ° C Unload filament menu Preheat head Extrude Unloading filament... Head 1 Retract Unload Pull out filament... -
Page 11: Main Menu
Printer Operation Touchscreen Main Menu 0 ° C 0 ° C 0 ° C 0 ° C 23 ° C 23 ° C 23 ° C 23 ° C Preheat PLA Cool down Move axis Filament menu Resume Setting Open U-disk USB unavailable... -
Page 12: Status Page
Printer Operation Status Page Touch and set up the temp of the nozzle. Touch and set up the temp of the nozzle. 210℃ 210℃ 210℃ Preset nozzle temperature 200.0℃ 200.0℃ 210℃ Current nozzle temperature Touch and set up the temp of the nozzle. Touch and set up the temp of the 45℃... -
Page 13: Detail Page
Printer Operation Detail page Current printing progress 60.00% 00:00 Z : 0.00 Change Pause Stop - 13 -... - Page 14 Printer Operation Filament menu #1 extruder Click and Head 1 enter a value #2 extruder (unavailable) Head 2 Adjust value when extrude/retract filament Retract filament Unload Extrude Retract Back filament filament - 14 -...
-
Page 15: Printing Page
Printer Operation Printing page Current printing progress 60.00% 00:00 Z : 0 . 00 Pause and Change Cancel print filament. Pause print - 15 -... -
Page 16: Sd Card/U-Disk
Printer Operation SD Card/U-disk file1.gcode file2.gcode file1.gcode Click and choose a file to print file2.gcode Next page Last page Superior menu Back - 16 -... - Page 17 Printer Operation Axis operation X Home Minimum units Move X to home Y Home ±X/Y Move X/Y axis Move Y to home Z Home Z up Move Z to home All Home Z down All axis to home 00.00 X,Y,Z current position of 00.00 Back...
-
Page 18: Setting Menu
Printer Operation Setting menu 106.6667 106.6667 1600.0000 128.0000 step: step: 106.6667 106.6667 X/Y/Z and exturder motor setting (range:5-9999) step: E step: 1600.0000 128.0000 Save Back - 18 -... - Page 19 Printer Operation Info. page V5.0.0 0000:00:00 V6.0.XXXXXX Time used Print time used V5.0.0 Screen version 0000:00:00 Firmware Firmware version Back V6.0.XXXXXX - 19 -...
-
Page 20: Software Operation
Software Operation CreatWare Setup Download CreatWare installation package from the CD-ROM or www.CreatBot.com, follow the prompts to install the software, tr y using the default installation path as well. Please associated common 3D file format. Installation path can not contain non-Latinn characters. -
Page 21: Quick Print Ui
Software Operation Quick Print UI Save toolpath Load model Normal Overhang Transparent X-Ray Layers When insert U-disk, the toolpath will saved to the U-disk. The file name can not contain non-Latinn characters. Print Your First Model Insert U-disk to the card reader, open the CreatWare, load 3D model file , choose correct filament and option , finally click... - Page 22 Software Operation Mouse Operation Left click Right click Select model, hold and Hold and move to rotate move to change the viewpoint around position, double-click to the 3D model. load 3D models. Left + Right Scrollwheel Hold and move the Use the scroll wheel to mouse to zoom.
-
Page 23: Full Setting Ui
Software Operation Full Setting UI Load model Save toolpath Manual slicing View mode Setting area View area Rotate Zoom Mirror As you can see from the complete UI, the left side of the software is setting area, the right side is view area. The setting area contain "Basic", "Advanced", "Plugins", "Start/End GCode"... -
Page 24: Model Mirror
Software Operation Model Mirror Click the mirror button you can pop up the mirror menu. Button is a mirror along the X axis. Button is a mirror along the Y axis. Button is a mirror along the Z axis. Note that the mirror transformation is different from the rotation, such as the mirror transformation will lead to a... - Page 25 Software Operation Model Rotate Click on the left corner of the rotate button , you can see three ring line around the model, respectively along the X, Y, Z direction. The default rotation angle is 5 degrees, press the Shift key can restrict the rotation angle to 1 degree.
-
Page 26: Right Click On Model
Software Operation Right Click on Model Right-click on the model pop-up shortcut menu, here are more features: "Centered" make the model back to the center position of the platform. "Delete" to remove the currently selected model. "Multiply" to copy the currently selected model and automatically position, which is useful for printing more than one model at a time. -
Page 27: Basic Setting
Software Operation Basic Setting Layer height: This is the most important setting to determent the quality of your print, maximum value not exceed 80% of the nozzle diameter. Shell thickness: Refers to the total thickness of the inner and outer walls, the outer wall is only one, the inner wall can be more, set this value to an integer multiple of the diameter of the nozzle. -
Page 28: Advanced Setting
Software Operation Advanced Setting Solid fill top: Refers to whether to print the top surface of the model, uncheck will print it with infill method. Solid fill bottom: Same as above, and so on. Spiralis print: Refers to the method of spiral printing the outer wall of the model (single layer), and this feature is very suitable for print glass vase model. - Page 29 Software Operation Export Setting Nozzle size: Set the nozzle size. Diameter: Accurate measurement of your filament gives better quality prints. Minimum travel: The minimum distance which can trigger filament retract. Minimum extrusion: The minimal amount of extrusion that needs to be done before retracting.
-
Page 30: Skirt/Brim/Raft
Software Operation Skirt · Brim · Raft Adhesion type： None Adhesion type： Brim Raft Adhesion type： Plugins Plugin enable you to easily include your own features, without having to modify the source code or Gcode. In the screen shot above, these can be enabled by clicking on the arrow down button, then you can configure the plugin. -
Page 31: Start/End Gcode
Software Operation Start / End GCode The start and end gcode are the startup and end procedure of the print, editing this requires knowledge of GCode. If you want to set the automatic heating station after printing, you can remove the ";" in the code ";M190 S50". -
Page 32: Align Dual Head Vertical
Tip: You can rising right nozzle as long time not use. Add Multi Type Printer You can add more than one type of CreatBot to the software, and easily switch between them without F160(160*160*200 mm) F430(400*300*300 mm) - Page 33 Software Operation Align Dual Head Horizontal There are alignment problem while printing dual color model, this is because the small difference in multi-nozzle assembly, CreatWare built fine-tuning features. Click menu "Machine">"Machine settings", default X offset is: 20.0, default Y offset is: 0.0, adjustment method as shown below: Extruder 2 Extruder 2 Offset X：...
- Page 34 Can open 230~260 ℃ 100 ℃ Brim Enclosed PEEK 380~430 ℃ Raft Enclosed Bed 120 ℃ /Air 70 ℃ * The data is only for reference, different environmental data will be different.F160 and F430 can print PEEK. - 34 -...
- Page 35 Frequently Asked Questions Hardware Troubleshoot 1. Display "MINTEMP" ? The environment is too low, or temperature sensor is damaged, please keep the room temperature above 0 ℃ . 2. Display "MAXTEMP" ? Temperature of nozzle or bed too high, or temperature sensor is damaged, please keep their temperature in a suitable range.
- Page 36 Printing Troubleshoot not over 120℃, and you can close the bed above 100mm except printing ABS or other high-temperature required filaments. 3. The model not stick on the platform ? Please paste masking paper or Kapton tape on the platform, or the nozzle is too far away from the platform, or the bottom of the model is not flat.
-
Page 37: Software
Specifications Specifications Model F160 F430 D600 Build volume 160*160*200 400*300*300 600*600*600 Nozzles Single Single/Dual Diameter 0.4mm(0.3/0.6/0.8/1.0mm can be customized) Temperature 260(Max 420) ℃ 260 ℃ +420 ℃ Nozzles Type Direct Hot bed 140 ℃ 100 ℃ Bed 120 ℃ /Air 70 ℃... - Page 38 Specifications Specifications - 38 -...
- Page 39 Specifications PEEK-300 F1000 Model 300*300*400mm 1000*1000*1000mm Build volume Nozzles Double 1.0 mm（0.4~1.5 mm） Diameter 0.4mm(0.3/0.6/0.8/1.0mm optional) Max 500℃ Max 420℃ Temperature Max 200 ℃ Max 100℃ Hot bed 0.05mm Min. Layer 0.05mm Accuracy X.Y0.011mm;Z 0.025 X.Y0.011mm;Z 0.025 10-150 mm/s 10-120 mm/s Print Speed Materials ABS,PLA,Carbon Fiber,PETG,Nylon,PC,etc.
- Page 40 Quality · Experience · Ser vice Henan Suwei Electronics Technology Co., Ltd. Telephone: +86 4000-558-930 Website: www.CreatBot.com Email: sales@creatbot.com Address: 6#, Chaoya Industr y Park , Hanghai Road, No.13 Ave., Eco-Tech Development Zone, Zhengzhou City, Henan Province, China - 40 -...
