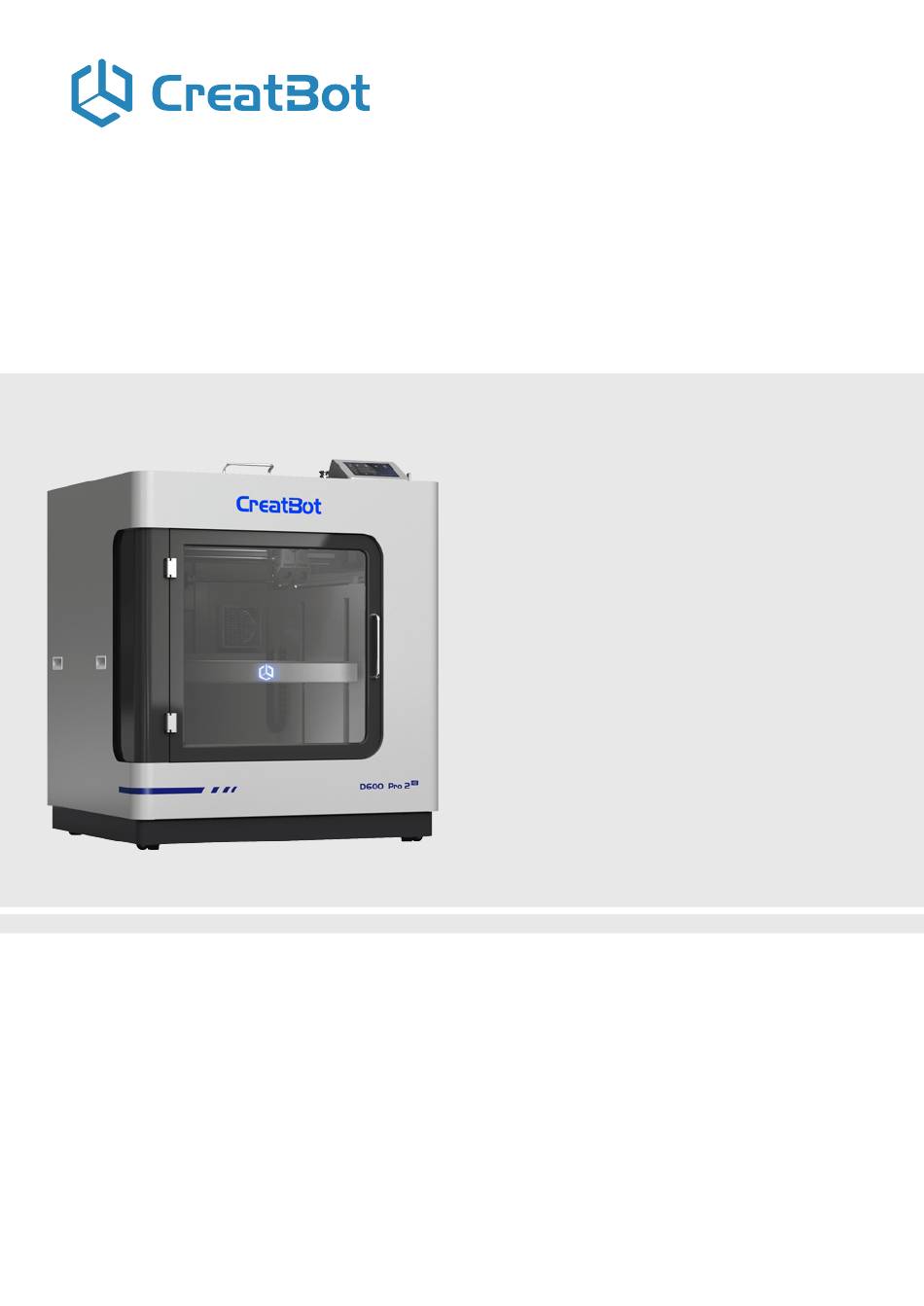

- Page 1 CreatBot D600 Pro2 HS User manual English V1.0 Henan Creatbot Technology Limited - 1 -...
-
Page 2: Table Of Contents
CONTENTS Notice ..........................3 Machine Diagram Front..........................4 Print Head ........................5 Print Head ........................6 Screen operation Temperature ......................... 7 Calibrate PID ........................ 8 Move ..........................8 Home ..........................9 Filament .........................10 Pressure Advance .......................11 Settings ..........................11 Mesh........................12 Probe Calibrate......................12 Nozzle Offset .......................13... -
Page 3: Notice
Please use the filament provided by CreatBot, or high quality filament by third manufacturers. Due to the use of third party inferior material caused by the failure of the printer, the loss will be borne by the user. -
Page 4: Machine Diagram Front
Machine Diagram Front Emergency stop switch Touch screen U disk input Power switch Universal Wheel - 4 -... -
Page 5: Print Head
Machine Diagram Print Head Feeding tube Feeding tube connector PCB box Servo for lifting nozzle Filament spring nut Extruder cover Extruder motor Sink fan Quickly remove hotend Cooling fan front - 5 -... -
Page 6: Print Head
Machine Diagram Print Head Z leveling sensor and arm Servo for leveling Cooling fan back - 6 -... -
Page 7: Screen Operation
Screen operation Main Menu Temperature 0 ° C Touch and set up the temp of left nozzle. Preset nozzle temperature 0 ° C Current nozzle temperature 23.0 ° C 23.0 ° C 0 ° C Touch and set up the temp of right nozzle. Preset nozzle temperature 0 °... -
Page 8: Calibrate Pid
Screen operation Calibrate PID When the heater cannot maintain a stable target temperature, you can set the target temperature and click this button to perform PID calibration. Move - 8 -... -
Page 9: Home
Unlock the motors. After unlocking, you can move Disable Motors the X and Y axes by hand. The current position of the X/Y/Z axis. "?" means that the current position cannot be obtained and the X/Y/Z axis cannot be moved. You need to run Home first. -
Page 10: Filament
Screen operation Filament Main Menu Click to activate the extruder. Blue means it is activated. Select the filament to quickly set the extrusion temperature Automatic loading/unloading filament Extrude and retract filament according to set length/speed 10mm 15mm 25mm 1mm/s 2mm/s 5mm/s 25mm/s Set the length and speed of extruding/retracting filament Inserted... -
Page 11: Pressure Advance
Pressure Advance Pressure advance: ensure that the line extruded at different speeds is uniform. It is related to the filament, nozzle size, hot end temperature, and extruder. Settings - 11 -... -
Page 12: Bed Mesh
Screen operation Bed Mesh Click Calibrate to run automatic leveling. Click the configuration name to view the current detection data. Probe Calibrate - 12 -... -
Page 13: Nozzle Offset
Used to calibrate the height difference between nozzle 1 and the Z sensor. See Leveling Video to set this value. If the model does not stick well to the platform during printing,the nozzle is too close or too far from the platform and this value needs to be recalibrated. Nozzle Offset The offset value of nozzle 2 relative to nozzle 1. -
Page 14: Limits
Screen operation Limits Macros When the machine X/Y/Z cannot move (because ENABLE_MOTOR there is no coordinate value),and Home cannot be run,this setting can be used. It will set false coordinatevalues to facilitate moving the X/Y/Z axis. - 14 -... -
Page 15: Update
Update Includes updates for the screen, firmware, and plug-ins. You need to connect the printer to the network first, click Refresh to see if there is anything that can be updated, then click Update to complete the update. When you receive new printer, you can connect to the network to see if there is anything that can be updated. -
Page 16: More
Screen operation The machine has been calibrated before leaving the factory. Click Auto Calibrate to recalibrate the resonance compensation values of the X and Y axes. More - 16 -... -
Page 17: Advanced
Advanced - 17 -... -
Page 18: Network
Screen operation Network Printing can be controlled on the web page. Enter the printer IP in the browser to access the web page. System - 18 -... - Page 19 Quality · Experience · Ser vice Henan Creatbot Technology Limited Telephone: T: (+86) 371 5569-1230 M: (+86) 185 3800 4700 Website: www.creatbot.com Email: sales@creatbot.com support@creatbot.com Address: No.150 Lamei Road,Zhongyuan District, Zhengzhou City, Henan Province, China - 19 -...
