Leviton W5633 Installation Instructions

WARNINGS:
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR
FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes and
regulations.
• If you are not sure about any part of these instructions, consult an electrician.
• This device CANNOT be used for separate feed applications. If the outlet you are
replacing has the top and bottom outlets controlled by separate circuit breakers, you
cannot use this device.
• Device must be installed in appropriate electrical enclosure with a weatherproof cover
rated for use in the location where installed.
FEATURES
• The Weather Resistant USB Charger/Tamper Resistant Outlet provides:
- One Type A and one Type C 5VDC powered USB ports with a combined
Total of 5.1A charging current.
- Two 15A-125VAC or 20A-125VAC outlets.
• The USB ports are used to charge portable electronic devices ONLY
(NO data transfer capability).
INSTALLATION
1. WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER
AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF
BEFORE WIRING!
2. This device is to be installed in an outdoor electrical box and wired in
accordance with NEC article 314 and CEC section 12 box fill requirements.
Deep outdoor electrical box recommended.
3. Connect wires per Wiring Diagram as follows:
To wire, make sure that the ends of the wires from the wall box are straight
(cut if necessary).
• Remove 5/8 in. (1.6 cm) of insulation from each wire in the wall box.
• GREEN or bare copper wall box wire to GREEN lead.
• WHITE (Neutral) wall box wire to WHITE lead.
• BLACK (Hot) wall box wire to a BLACK lead.
4. Twist strands of each lead tightly and, with circuit conductors, push firmly
into appropriate wire connector. Screw connectors on clockwise, making
sure that no bare wire shows below the wire connectors (Figure 1). Secure
each wire connector with electrical tape (Figure 2).
5. Mount device in outdoor electrical box with screws provided and with an
appropriate outdoor weatherproof cover rated for use in location where
installed.
6. Restore power at circuit breaker or fuse. Installation is complete.
15A
Type C
Type C
Tipo C
FCC AND INDUSTRY CANADA COMPLIANCE STATEMENT
This device complies with Part 15 of the FCC Rules and ISED License-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This
device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment. To comply with FCC/ISED RF exposure limits for general population
/ uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any
other antenna or transmitter.
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and
proper use for one year from the purchase date. Leviton's only obligation is to correct such defects by repair or replacement, at its option. For details visit www.leviton.com or call 1-800-824-3005. This warranty
excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused,
opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including
merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for
a particular purpose, is limited to one year. Leviton is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment,
lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
Weather Resistant USB Charger/Tamper Resistant Outlet
Cat. No. W5633 (15A-125VAC/CA)
Cat. No. W5833 (20A-125VAC/CA)
INSTALLATION INSTRUCTIONS
20A
or / ou / o
Type A
Type A
Tipo A
LIMITED 1 YEAR WARRANTY AND EXCLUSIONS
For Technical Assistance Call: 1-800-824-3005 (USA Only) or 1-800-405-5320 (Canada Only) www.leviton.com
USB Rated: 5.1A
CAUTIONS:
• To be used with Class 2 connectors with interconnecting cables.
• The Class 2 USB ports are not intended for use with appliances and
supporting products.
• All connected Class 2 output cables must be routed away from the
receptacle slots or any plug/cord inserted into the receptacle.
• Use this device with copper or copper clad wire only.
• Use this device with wires rated for at least 75°C.
• To avoid damage to the product, DO NOT use disinfecting products,
including foggers, sprays or other types of atomized cleaning agents.
• DO NOT spray liquid onto the product.
• To clean use a damp cloth with mild soap.
Weather Resistant USB Charger/Tamper Resistant Outlet
Prise intempérisée à deux sorties inviolables/deux chargeurs USB
Cargador USB Resistente a la Intemperie / Contacto a Prueba de Manipulaciones
Charges most Type A and Type C USB powered devices
Recharge la plupart des dispositifs alimentés via USB de types A et C
Carga la mayoría de los dispositivos alimentados por USB de Tipo A y Tipo C
À utiliser avec un couvercle intempérisé conçu pour l'extérieur
Utilice con cubierta a prueba de intemperie para exteriores
Compatible with most USB powered devices including: tablets (Apple iPad, Samsung Galaxy, Amazon Kindle);
smartphones (Apple iPhone, Samsung Edge and Note, Google Pixel, Motorola Moto Z); laptops (Apple Macbook,
Google Chromebook, and Asus); and many more.
Compatibilité avec la plupart des appareils à alimentation USB : tablettes (iPad d'Apple,Galaxy de Samsung, Kindle
d'Amazon), téléphones intelligents (iPhone d'Apple,Edge et Note de Samsung, Pixel de Google, Moto Z de Motorola),
portables (MacBook d'Apple, Chromebook de Google et Asus) et plus encore.
Compatible con la mayoría de los dispositivos alimentados por USB, incluyendo: tabletas (Apple iPad, Samsung Galaxy,
Amazon Kindle); teléfonos inteligentes (iPhone de Apple, Samsung Edge y Note, Google Pixel, Motorola Moto Z);
computadoras portátiles (Apple Macbook, Google Chromebook y Asus); y muchos más.
Figure 1 Figure 2
Figure 1 Figure 2
Figura 1 Figura 2
Strip Gage
Gabarit de dénudage
Medida de pelado
3/4 in.
(1.9 cm)
Patents covering this product, if any, can be found on Leviton.com/patents.
Third party company names, product names and/or trademarks are the property of their respective
owners. Use herein does not imply any affiliation or endorsement.
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact Leviton in writing
at Leviton Manufacturing of Canada ULC to the attention of the Quality Assurance Department,
165 Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone at 1 800 405-5320.
Outdoor cover
Couvercle pour l'extérieur
Cubierta para exteriores
USB Charger
Chargeur USB
Cargador USB
Tamper Resistant
Outlet
Prise inviolable
Contacto con Seguro
Use with outdoor weatherproof cover

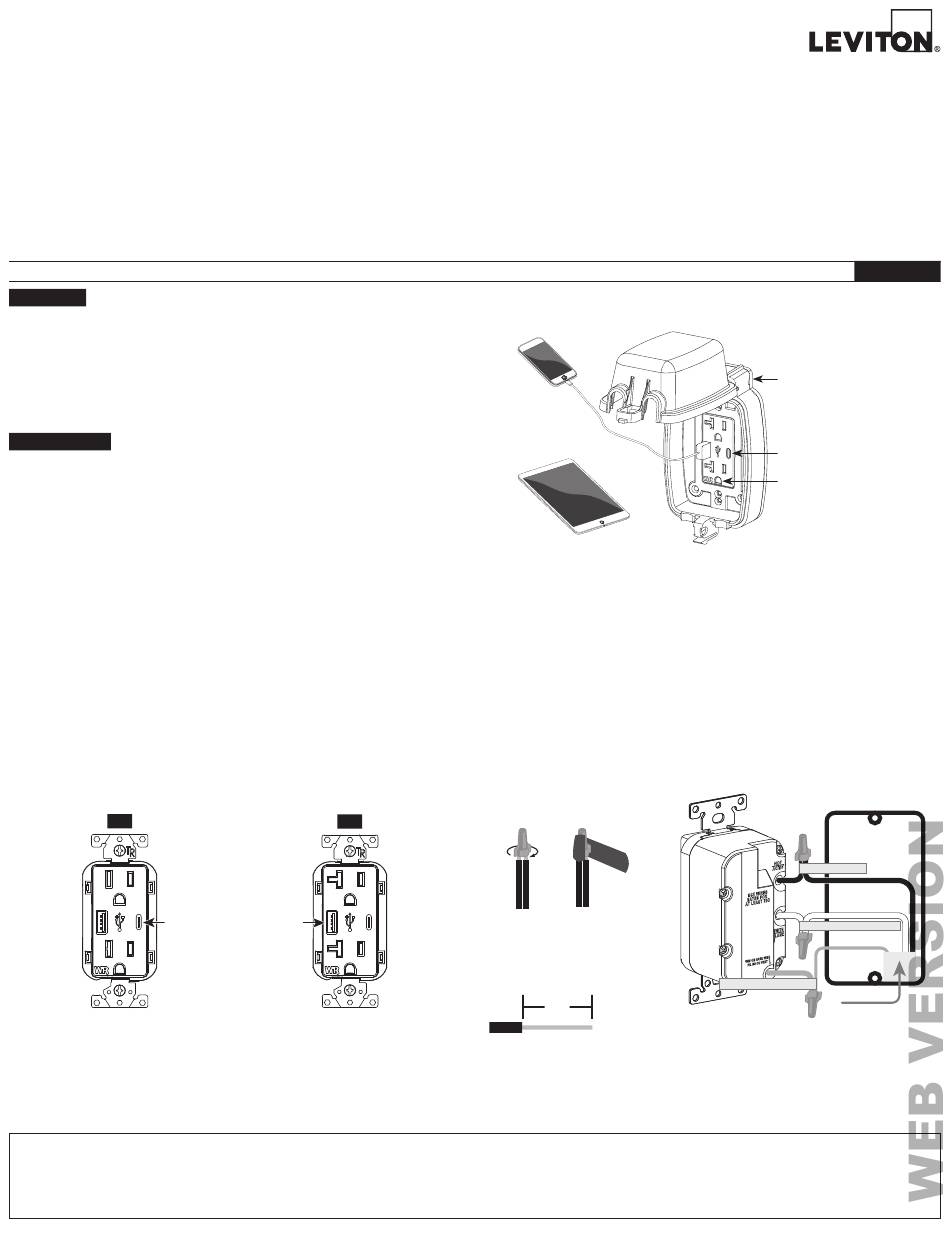

Wiring Diagram
Schéma de câblage
Diagrama de Alambrado
GROUND / TERRE / TIERRA
PK-A3423-10-02-2A
ENGLISH
LINE / LIGNE / LÍNEA
NEUTRAL / NEUTRE / NEUTRO
From Branch Circuit
De la dérivation
Desde el Circuito Derivado
