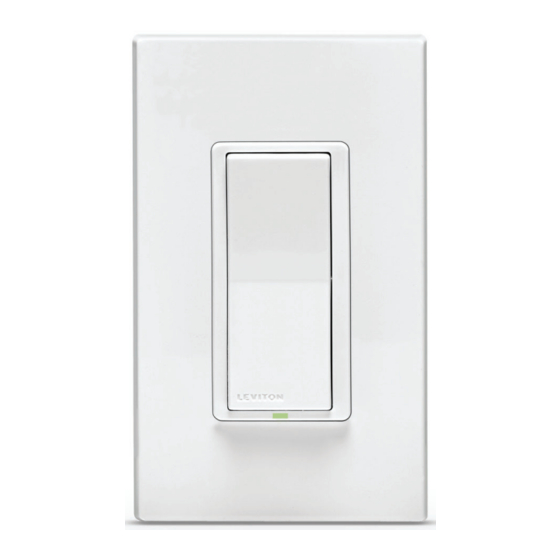

- Page 1 Getting Started Guide SWITCH Cat. No. DG15S...
- Page 3 Welcome to the Decora Smart™ family of Zigbee enabled devices ® See the complete line of Zigbee enabled dimmers, switches and plug-ins leviton.com/decorasmart...
- Page 4 Add your switch to a Zigbee hub to control it with your smartphone or a voice interface. We are here to help CALL CHAT 1-800-824-3005 (USA) leviton.com 1-800-405-5320 (Canada) EMAIL dssupport@leviton.com ONLINE leviton.com/decorasmart...
- Page 5 Your switch should not be used with aluminum wire. To ensure proper communication do not use metal wallplates. If you have further questions, please contact technical services at dssupport@leviton.com for more information. RATINGS LED / CFL 5A, 600W - 120VAC, 60Hz Resistive...
- Page 6 Features Rocker Manually turn light on. The bottom of the paddle turns the light off. Status light Illuminates when load is off.
-
Page 7: Before You Install
Before you install Installation requires electrical knowledge. If you are unsure of any steps, consult an electrician. Things to consider: • If light(s) are controlled from more than one location, you will need a DD0SR-1 remote. See the DD0SR-1 installation instructions for wiring instructions. •... - Page 8 Identify your wires Check your wall box: WARNING: TO AVOID FIRE, SHOCK OR DEATH, turn off power at the circuit breaker. Remove wallplate and disconnect switch. Ensure disconnected wires are not touching. Restore power. Carefully test wires with voltage tester to find the hot wire.
- Page 9 Wire your switch Work on only one connection at a time. Connect wires as shown. Secure wire connections with an electrical connector. Y L / R D If your wall box looks different, consult an electrician.
- Page 10 Test and install Restore power. Status light should flash green indicating your switch is ready to be enrolled. Turn off power at circuit breaker before completing the switch installation. Gently push wires into wall box. Screw switch to box. Snap on Decora ®...
- Page 11 Add your switch to a hub To control your switch with your phone, add it to a compatible To control your switch with your phone, add it to a compatible Zigbee hub. Use the hub's app and follow the instructions for Zigbee hub.
-
Page 12: Factory Default
Quick Tips If your switch is not performing as expected, visit leviton.com/decorasmart or contact technical services. • Status light is on but light is off and does not respond: - Check wiring to confirm hot, neutral and load. -
Page 13: Safety First
Safety First WARNING: TO AVOID FIRE, PERSONAL INJURY OR DEATH DO NOT USE the switch for the control of high power heating appliances such as portable heaters. There can be unexpected consequences if not used with care. For example, an empty coffee pot can be remotely turned on. If that should happen, your coffee pot could be damaged from overheating. -
Page 14: Limited 5 Year Warranty
Copyright and Trademark Information The Leviton logo and Decora Smart are trademarks of Leviton Manufacturing Co., Inc. Zigbee is a U.S. registered trademark of Zigbee Alliance. Use herein of other third party trademarks, service marks, trade names, brand names and/or product names are for informational purposes only, are/may be the trademarks of their respective owners;... - Page 16 EMAIL dssupport@leviton.com Leviton Manufacturing Co., Inc. 201 North Service Road, Melville, NY 11747 Telephone: 1-800-824-3005 Visit Leviton’s website at www.leviton.com © 2020 Leviton Manufacturing Co., Inc. All rights reserved. Specifications subject to change at any time without notice. DI-000-DG15S-02A...
