- Page 1 Getting Started Guide TAMPER RESISTANT OUTLET Cat. No. ZW15R...
- Page 2 Welcome to the Decora Smart™ family of Z-Wave® enabled devices See the complete line of Z-Wave enabled dimmers, switches Outlet, fan speed controllers, and plug-ins leviton.com/decorasmart...
- Page 3 An integrated vanishing status light provides simple indications of your outlet’s status as well as assistance joining the network and setting up your outlet. We are here to help CALL CHAT 1-800-824-3005 (USA) www.leviton.com 1-800-405-5320 (Canada) EMAIL ONLINE dssupport@leviton.com leviton.com/decorasmart...
- Page 4 What you need to make it work To install and use your Z-Wave enabled outlet: 1. A Z-Wave compatible hub. 2. A Z-Wave mesh network to join within 30 feet of installation location. 3. An available interior wallbox with a hot, neutral and ground wire.

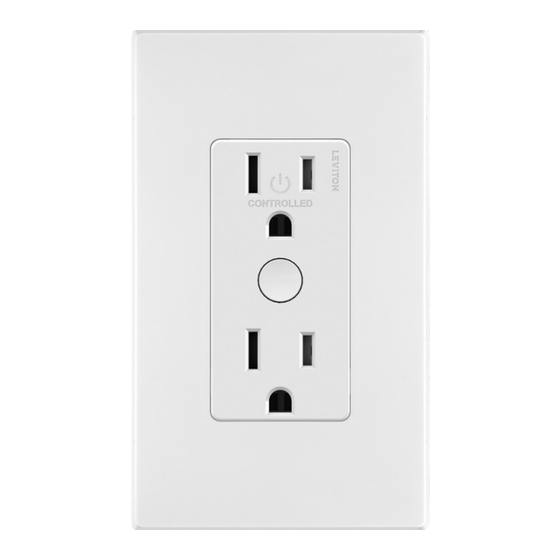

- Page 5 Features Controlled Outlet Press the button or use an app command to turn the outlet on/off. Tamper Resistant Built-in shutters help prevent the insertion of unintended foreign objects. Integrated Button Provides manual control as well as setup and configuration. Status Light Illuminates when the outlet is off.
-
Page 6: Installation
Installation For additional support contact technical services (page 3). NOTE: Z-Wave is a mesh network. Ensure your device is installed within 30 feet of the hub or another Z-Wave enabled device. Communication through exterior surfaces will likely reduce transmission distances. WARNING: TO AVOID FIRE, SHOCK OR DEATH, turn off power at the circuit breaker. - Page 7 Test and install 1. Tighten terminal screws to 14 in-lbs (1.6 N-m). 2. Gently push wires into wall box. Do not overtighten wallbox screws. 3. Install wallplate base and snap on Decora® wallplate. Congratulations! Your Z-Wave enabled outlet 4. Restore power. is ready to control your fixture.
- Page 8 SmartStart Your Decora Smart Outlet is compatible with SmartStart SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code found on the top of the outlet or the back of the box with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on and in the network vicinity.
- Page 9 Adding Your Outlet To A Hub Leviton Decora Smart Z-Wave® devices support two methods of inclusion. When using a Z-Wave Plus certified controller choose Network Wide Inclusion or SmartStart. If network wide Inclusion does not discover your device, please try classic inclusion.
-
Page 10: Factory Default
Exclusion From A Z-Wave Network When removing an outlet from a Z-Wave network, best practice is to use the exclusion command found in the Z-Wave controller. 1. To enter programming mode, hold the button for 7 seconds. The status light will turn amber, release and the status light will blink. 2. - Page 11 Customization Status LED Setup Leviton Decora Smart Z-Wave outlets have a status light. The functionality of this light can be changed. Status Mode: Light On when the load is On The status light shows the current state of the load: 1.
-
Page 12: Advanced Options
Advanced Options Leviton Decora Smart Devices are configurable over the Z-Wave network. Compatible Z-Wave® controllers can add support for additional advanced options. Consult your Z-Wave® controller manufacturer for compatibility with advanced feature support. Status LED Configuration • Parameter No: 7, Length: 1 Byte •... - Page 13 Additional Supported Z-Wave Classes In addition to the standard Z-Wave Commands, your Outlet supports: Z-WAVE PLUS INFO ASSOCIATION ASSOCIATION GRP INFO S2 SECURITY S0 SECURITY VERSION MANUFACTURER SPECIFIC CONFIGURATION DEVICE RESET LOCALLY POWERLEVEL SWITCH BINARY BASIC SCENE ACTUATOR CONF SCENE ACTIVATION TRANSPORT SERVICE FIRMWARE UPDATE MD SUPERVISION...
-
Page 14: Safety First
Safety First WARNING: TO AVOID FIRE, PERSONAL INJURY OR DEATH DO NOT USE for the control of high power heating appliances such as portable heaters. There can be unexpected consequences if not used with care. For example, an empty coffee pot can be remotely turned on. If that should happen, your coffee pot could be damaged from overheating. - Page 15 Android, App Store, Apple iOS, Google Assistant, are the trademarks of their respective owners and any use of such marks by Leviton is under license. Z-Wave is a registered trademark and Z-Wave Plus is a trademark of Silicon Labs. Use herein of other third party trademarks, service marks, trade names, brand names and/or product names are for informational purposes only, are/may be the trademarks of their respective owners;...
- Page 16 EMAIL dssupport@leviton.com Leviton Manufacturing Co., Inc. 201 North Service Road, Melville, NY 11747 Telephone: 1-800-824-3005 Visit Leviton’s website at http://www.leviton.com © 2020 Leviton Manufacturing Co., Inc. All rights reserved. Specifications and price subject to change at any time without notice.
