Leviton 35249 Installation Instructions

Floor Boxes - Double-Gang
Cat. No. 35249
Rated: 15A - 125V
Cat. No. 35349
Rated: 20A - 125V
Installation Instructions
WARNINGS AND CAUTIONS
!
WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING!
WARNING: TO AVOID FIRE, SHOCK OR DEATH: USE A DIVIDER IN A FLOOR BOX
WITH HIGH VOLTAGE AND LOW VOLTAGE WIRING AND ENSURE DIVIDER IS IN
PLACE BEFORE INSTALLATION.
• To be installed and/or used in accordance with appropriate electrical codes and
regulations.
• If you are unsure about any part of these instructions, contact an electrician.
• Use this device with copper or copper clad wire only.
• Electrical box is not suitable for masonry applications.
• Suitable for wood finished floors, tile, vinyl and industrial carpet 3/8" (1.0 cm)
thickness only. Clean floor surfaces before mounting. Use all purpose sealing
compound (not provided) as shown.
• Use only electrical mounting box provided.
NEMA
Configurations
15A - 125V
G
W
Cat. No. 35249
20A - 125V
G
W
Bare Floor Installation
Cat. No. 35349
The duplex receptacles included in this assembly are covered by U.S. Patent Nos.
7,355,117; 7,820,909; 7,868,719; 8,242,362 and corresponding foreign patents.
LI ITED 10 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that
this product at the time of its sale by Leviton is free of defects in materials and workmanship under
normal and proper use for ten years from the purchase date. Leviton's only obligation is to correct
such defects by repair or replacement, at its option. For details visit www.leviton.com or call
1-800-824-3005. This warranty excludes and there is disclaimed liability for labor for removal
of this product or reinstallation. This warranty is void if this product is installed improperly
or in an improper environment, overloaded, misused, opened, abused, or altered in any
manner, or is not used under normal operating conditions or not in accordance with any
labels or instructions. There are no other or implied warranties of any kind, including
merchantability and fitness for a particular purpose, but if any implied warranty is
required by the applicable jurisdiction, the duration of any such implied warranty, including
merchantability and fitness for a particular purpose, is limited to ten years. Leviton is not
liable for incidental, indirect, special, or consequential damages, including without
limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay
or failure to perform this warranty obligation. The remedies provided herein are the
exclusive remedies under this warranty, whether based on contract, tort or otherwise.
For Technical Assistance Call: 1-800-824-3005 (U.S.A Only) www.leviton.com
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact Leviton
in writing at Leviton Manufacturing of Canada Ltd to the attention of the Quality Assurance
Department, 165 Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone
at 1 800 405-5320.
© 2016 Leviton Mfg. Co., Inc.

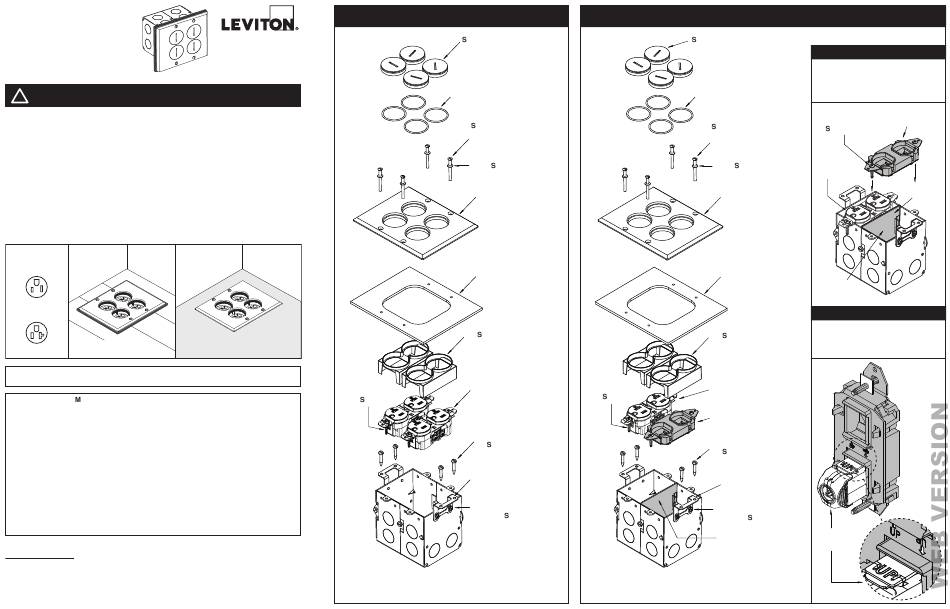

Floor Boxes with 2 Duplex Receptacles
PK-A3125-10-00-0B
Carpet Installation
Mounting
crew
(Cat. Nos. 35249-TFx, 35349-TFx)
crew Cap
(Brass or Nickel Plate)
Rubber O-Ring
(pre-assembled on screw caps)
(4) crew #6-32
(Brass or Nickel Plate)
(4) O- eal Washer
Brass Plate
or Nickel Plate
Gasket
(2) hell
(molded plastic)
(2) Duplex
Receptacle
(Cat. No. 35349-TF
depicted)
(4) #6 x 1"
crew
(2) Mounting
Bracket
(4) Phillips Pan
Head crew

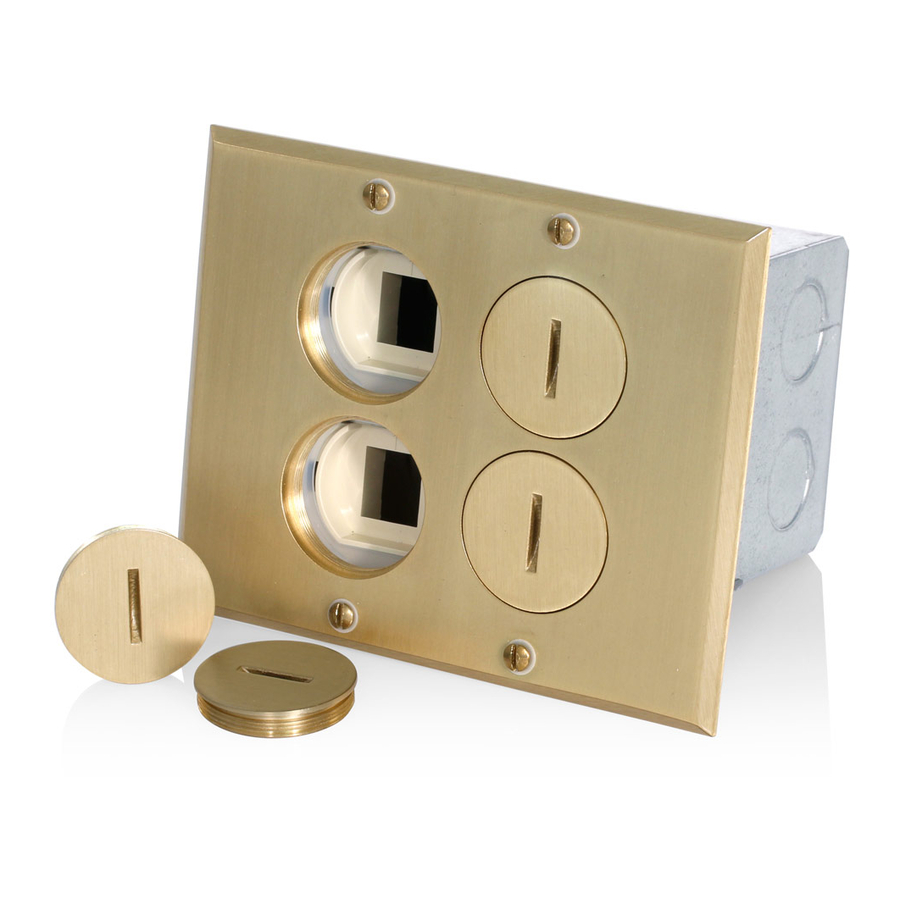

Floor Boxes with 1 Duplex Receptacle and 1 Duplex QuickPort
(Cat. Nos. 35249-TLx, 35349-TLx)
crew Cap
(Brass or Nickel Plate)
Rubber O-Ring
(pre-assembled on screw caps)
(4) crew #6-32
(Brass or Nickel Plate)
(4) O- eal Washer
Brass Plate
or Nickel Plate
Gasket
(2) hell
(molded plastic)
Duplex
Receptacle
(Cat. No. 35349-TL
Mounting
depicted)
crew
Duplex
®
QuickPort Insert
(4) #6 x 1"
crew
(2) Mounting
Bracket
(4) Phillips Pan
Head crew
Divider
NOTE: For low voltage installations, follow the instructions that
come with your Leviton QuickPort ® modules (sold separately).
® Insert
WARNING
Failure to use a divider in a floor
box with high voltage and low
voltage wiring can cause fire, shock
or death. Ensure divider is in place
before installation.
Duplex
Mounting QuickPort ® Insert
crew
Line
Voltage
Installation
Divider
Low
Voltage
Installation
NOTE
Insert QuickPort ® snap-in modules
as shown: "UP" on connector must
face "UP" on duplex QuickPort ® insert.
®
QuickPort
snap-in
module
