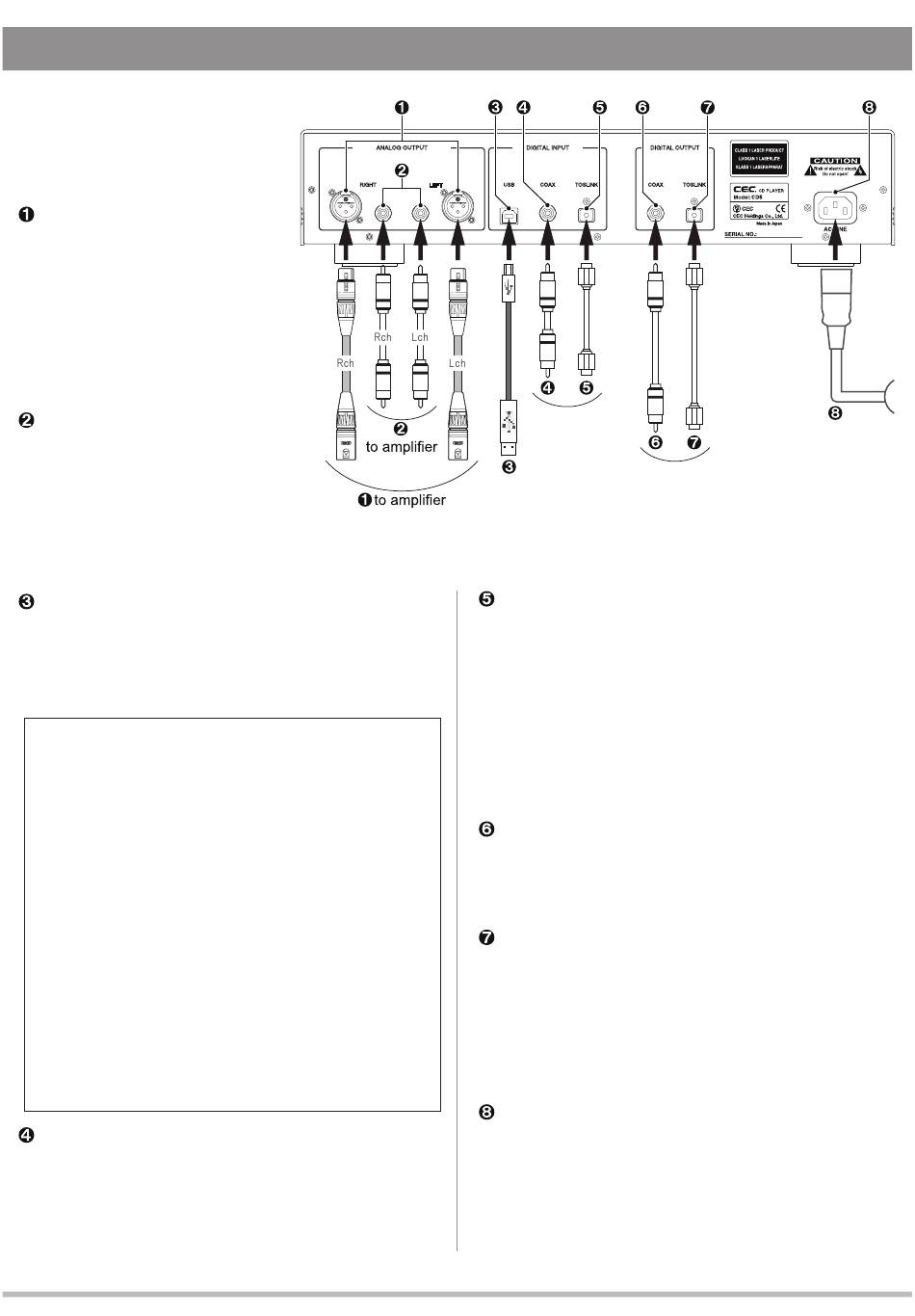

Rear Panel Functions and Connections
ANALOG OUTPUT
connect with a pre-amplifier or
an amplifier with volume control
function
XLR(Balanced)
Balanced Analogue output
using standard XLR terminals
(1=GND, 2=Hot, 3=Cold).
This should be the preferred
connection since CD5 has
been designed at fully balanced
circuit.
RCA(Unbalanced)
Standard RCA analogue
signal output terminals.
DIGITAL INPUT
to connect
with a personal computer or digital
music player
USB
USB input to connect with a PC using a USB cable
with a B-type plug. This input supports sampling
frequencies up to PCM 32bit/384kHz and from DSD64
2.8224MHz to DSD128 5.6448MHz in DoP method.
Windows10 (Ver1709 and newer), Windows11 and
Mac PC (X10.6.8 and newer) are already equipped
with a standard driver for USB 2.0 audio device,
and that may be capable of playing up to PCM 32
bits/384kHz. Compatible PC-Music player should be
prepared yourself.
Installing CEC specific ASIO driver, BRAVO-
HD for Windows PC (7 to 11), a freeware PC-Music
player, foobar2000 with additional ASIO and DSD
components can support DoP playback method for up
to DSD128.
Those drivers and install manual are appeared at
each download site in CEC home page. Visit at www.
cec-web.co.jp/ser vice/download/driver/index _ex.
html for the drivers and www.cec-web.co.jp/service/
download/document/index_ex.html for the manual.
COAXIAL
Standard (SPDIF) digital signal input jack with a
RCA type connector. Connect with a digital audio
player using a RCA (75Ω) cable. This input supports
up to 24bit/192kHz.
to
RIGHT
ANALOG OUTPUT DIGITAL INPUT
LEFT USB COAX
from
digital player
from PC
TOS LINK (Optical)
Optical (SPDIF) digital signal input jack with a
square TOS LINK connector. Connect with a digital
audio player using an optical cable with a square TOS
LINK plug. This input supports up to 24bit/192kHz.
DIGITAL OUTPUT
device like D/A converter / the output signal comes from
CD5-CD only.
COAXIAL
Standard (SPDIF) digital signal output jack with
a RCA type connector. Connect with a digital audio
device using a RCA (75Ω) cable.
TOS LINK (Optical)
Optical (SPDIF) digital signal output jack with a
square TOS LINK connector. Connect with a digital
audio player using an optical cable with a square TOS
LINK plug.
AC POWER
AC LINE
Connect the supplied 3-pin AC power cord to the AC
LINE inlet and the wall outlet.
