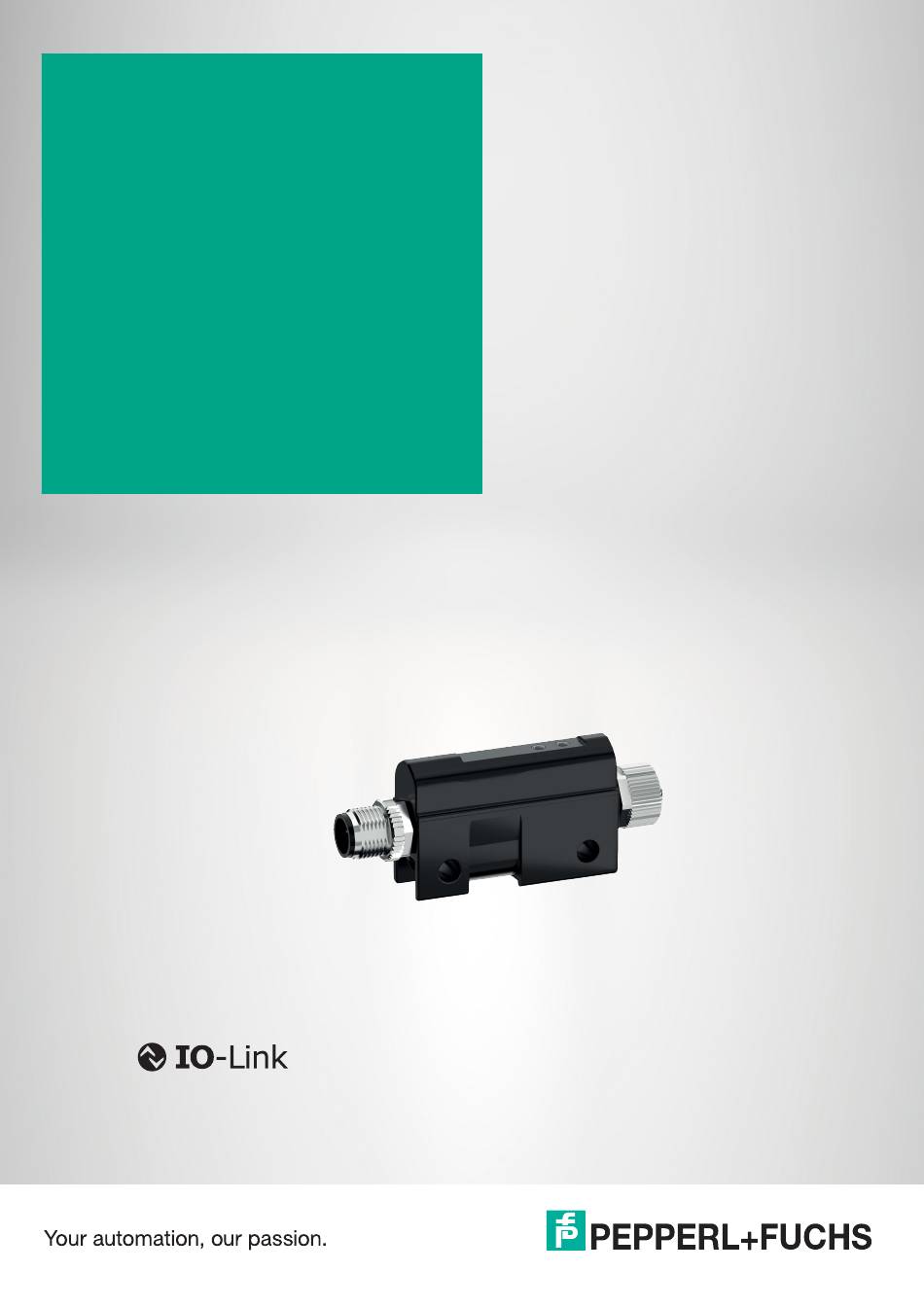

- Page 1 ICA-A*-IO-V1 IO-Link analog converter Manual...
- Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...
-
Page 3: Table Of Contents
ICA-A*-IO-V1 Contents Introduction........................ 4 Content of this Document ................4 Target Group, Personnel ................4 Symbols Used ....................5 General Safety Notice..................6 Product Description ....................7 Intended Use ....................7 Versions ......................7 Dimensions..................... 7 LED Indicators ....................8 2.4.1 LED 1.......................... -
Page 4: Introduction
ICA-A*-IO-V1 Introduction Introduction Content of this Document This document contains information required to use the product in the relevant phases of the product life cycle. This may include information on the following: • Product identification • Delivery, transport, and storage •... -
Page 5: Symbols Used
ICA-A*-IO-V1 Introduction Symbols Used This document contains symbols for the identification of warning messages and of informative messages. Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid prop- erty damage. -
Page 6: General Safety Notice
ICA-A*-IO-V1 Introduction General Safety Notice Danger! Death or serious injury due to electric shock. High electrical voltage in the machine/plant. When working on the device, observe the five safety rules of electrical engineering. According to DIN VDE 0105-100—Operation of electrical installations—Part 100: General requirements Protect people and devices from high electrical voltage: •... -
Page 7: Product Description
ICA-A*-IO-V1 Product Description Product Description Intended Use The device described in the manual is used for communication and process control. Use the device for general control and automation tasks. The device is designed for industrial use up to the IP67/IP69K degree of protection. The intended use also includes EMC-compliant electrical installation. -
Page 8: Led Indicators
ICA-A*-IO-V1 Product Description LED Indicators The device has 2 LEDs for the status indicator. LED 2 LED 1 Figure 2.2 LED 1: Device status / diagnostics LED 2: IO-Link status 2.4.1 LED 1 LED 1 displays device and function status information. Green indicates the general device sta- tus. -
Page 9: Led 2
ICA-A*-IO-V1 Product Description 2.4.2 LED 2 IO-Link status LED 2 indicates the status of the IO-Link communication connection. Status Description Green No IO-Link process data communication, pre-operate mode Green asymmetrical flashing IO-Link communication, operate mode (1 Hz: 250 ms on/750 ms off) No IO-Link communication Table 2.3 Interfaces and Connections... -
Page 10: Analog Inputs
ICA-A*-IO-V1 Product Description ICA-AI-RTD-IO-V1 Connection for Connectors Plug type / assignment IO-Link M12, 4-pin, plug, A-coded 1: +24 V (L+) 2: n.c. 3: GND (L-) 4: C/Q Input RTD resistor M12, 5-pin, socket, A-coded temperature sensors 1: RD 1 2: RD 2 3: WH 1 4: WH 2 5: n.c. -
Page 11: Analog Outputs
ICA-A*-IO-V1 Product Description Analog outputs Actuators with analog input can be used depending on the adapter type. Actuators with current input (0/4 mA ... 20 mA) Figure 2.5 ICA-AO-I/U-IO-V1 +24 V (L+) n.c. GND (L-) AO (current) Actuators with voltage input (-10/0 V ... +10 V) Figure 2.6 ICA-AO-I/U-IO-V1 +24 V (L+) - Page 12 ICA-A*-IO-V1 Product Description Temperature input for RTD resistor temperature sensors RTD sensors can be connected as 2-, 3-, or 4-core versions. 2-wire version Figure 2.7 ICA-AI-RTD-IO-V1 RD 1 WH 1 3-wire version Figure 2.8 ICA-AI-RTD-IO-V1 RD 1 RD 2 WH 1 4-wire version Figure 2.9 ICA-AI-RTD-IO-V1...
-
Page 13: Io-Link Interface
ICA-A*-IO-V1 Product Description Measuring ranges PT100, PT200, PT500, PT1000 Nominal measuring range -200 °C … +850 °C Overrange -220 °C … +1000 °C Resolution 0.1 °C Measurement accuracy 4-conductor measurement <0.1 % (full-scale) 3-conductor measurement <0.2 % (full-scale) <0.2 % (full-scale) 2-conductor measurement 1. -
Page 14: Accessories
ICA-A*-IO-V1 Product Description Accessories System Components Model code Description MH Y+T-SPLITTER HOLDER Modular universal holder for M12 T-splitter cordsets and M12 Y-splitter cordsets Tools Model code Description MH V1-SCREWDRIVER Torque screwdriver (0.6 Nm) MH V1-BIT M12 Plug-in attachment for M12... -
Page 15: Installation
ICA-A*-IO-V1 Installation Installation Preparing for Mounting Danger! Death or serious injury due to electric shock. High electrical voltage in the machine/plant. • When working on the device, observe the five safety rules of electrical engineering. • Only connect supplies that provide protection against electric shock according to SELV or PELV. -
Page 16: Connection
ICA-A*-IO-V1 Installation Connection Caution! Property damage due to unsuitable fastening screws! The use of unsuitable fastening screws can cause property damage. • Use fastening screws that are appropriate for the type of mounting surface. Figure 3.2 IO-Link Connection LED 1: Device status / diagnostics LED 2: IO-Link status Analog input/output Connection lines... -
Page 17: Operation
ICA-A*-IO-V1 Operation Operation IO-Link parameters Note All details of the IO-Link parameters can be found in the IO device description (IODD) and the parameter datasheet for the device on our website www.pepperl-fuchs.com. Parameter datasheet and IODD Open our website at www.pepperl-fuchs.com Enter the order designation or part number of your product in the search field. - Page 18 ICA-A*-IO-V1 Operation Figure 4.2 You can find the parameter datasheet under "Quick reference guides, Safety information" (2). Click the Software tab (1) to list the software for the product.
-
Page 19: Diagnosis
ICA-A*-IO-V1 Operation Figure 4.3 You can find the IODD under "IO Device Description (IODD)" (2). Diagnosis 4.2.1 IO-Link Events Certain IO-Link events are available for the device to send depending or the set channel func- tion. General events Device status (ISDU Event Event... - Page 20 ICA-A*-IO-V1 Operation Device status (ISDU Event Event code Description 0x24) type Qualifiers Notes 0x6320 Parameter error – check Error appearing If an invalid value has datasheet and/or values disappearing been written to a param- eter 0x7700 Lead breakage at con- Error appearing Corresponds to bit 10 in...
- Page 21 ICA-A*-IO-V1 Operation Event Device Event code Description status type Qualifiers Notes 0x180B Analog output error – Error appearing Corresponds to bit 6 in overload at output disappearing ISDU index 0x40 Only AO types 0 – 10 V -10 – 10 V Table 4.2 Validity Matrix for IO-Link Events Not all versions of analog IO-Link converters have the same diagnostic events.
-
Page 22: Process Data
ICA-A*-IO-V1 Operation Channel function analog outputs ISDU index 0x40 AO U 0 – 10 V AO U -10 – 10 V AO I 0 – 20 mA AO I 4 – 20 mA Overrange PDOUT- Overrange PDOUT- Overrange PDOUT- Overrange PDOUT- DATA >27648d DATA >27648d DATA >27648d... - Page 23 ICA-A*-IO-V1 Operation Values Data Range 27648 6C00 20.0000 mA Nominal range 0001 723.4 nA 0000 0 A FFFF -723.4 nA Under- range -4864 ED00 -3.5185 mA -32768 8000 < -3.5185 mA Below threshold Table 4.5 Analog input I = 4 – 20 mA Values Data Range...
- Page 24 ICA-A*-IO-V1 Operation Values Data Range 27648 6C00 10.0000 V Nominal range 0001 361.7 V 0000 0 V FFFF -361.7 V -27648 9400 -10.0000 V -27649 93FF -10.0004 V Under- range -32512 8100 -11.7593 V -32768 8000 < -11.7593 V Below threshold Table 4.8 Analog output I = 0 –...
-
Page 25: Filter Description
ICA-A*-IO-V1 Operation Analog output U = -10 – 10 V Values Data Range > 32511 > 7EFF 11.7589 V Max. output value 32511 7EFF 11.7589 V Over- range 27649 6C01 10.0004 V 27648 6C00 10.0000 V Nominal range 0001 361.7 V 0000 0 V FFFF... -
Page 26: Maintenance
ICA-A*-IO-V1 Maintenance Maintenance Servicing The device bus nodes and modules are maintenance-free. No inspection and maintenance intervals are required for ongoing operation. Replace defective bus nodes and/or defective modules. -
Page 27: Glossary And List Of Abbreviations
ICA-A*-IO-V1 Glossary and List of Abbreviations Glossary and List of Abbreviations Abbreviation/designa- tion Meaning Analog input Analog output Binary digit Byte 1 byte equals 8 bits Diagnostic coverage / degree of detection of errors Deutsches Institut für Normung (German Institute for Standardiza- tion) Electromagnetic compatibility European standard... - Page 28 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications / DOCT-6995F...
