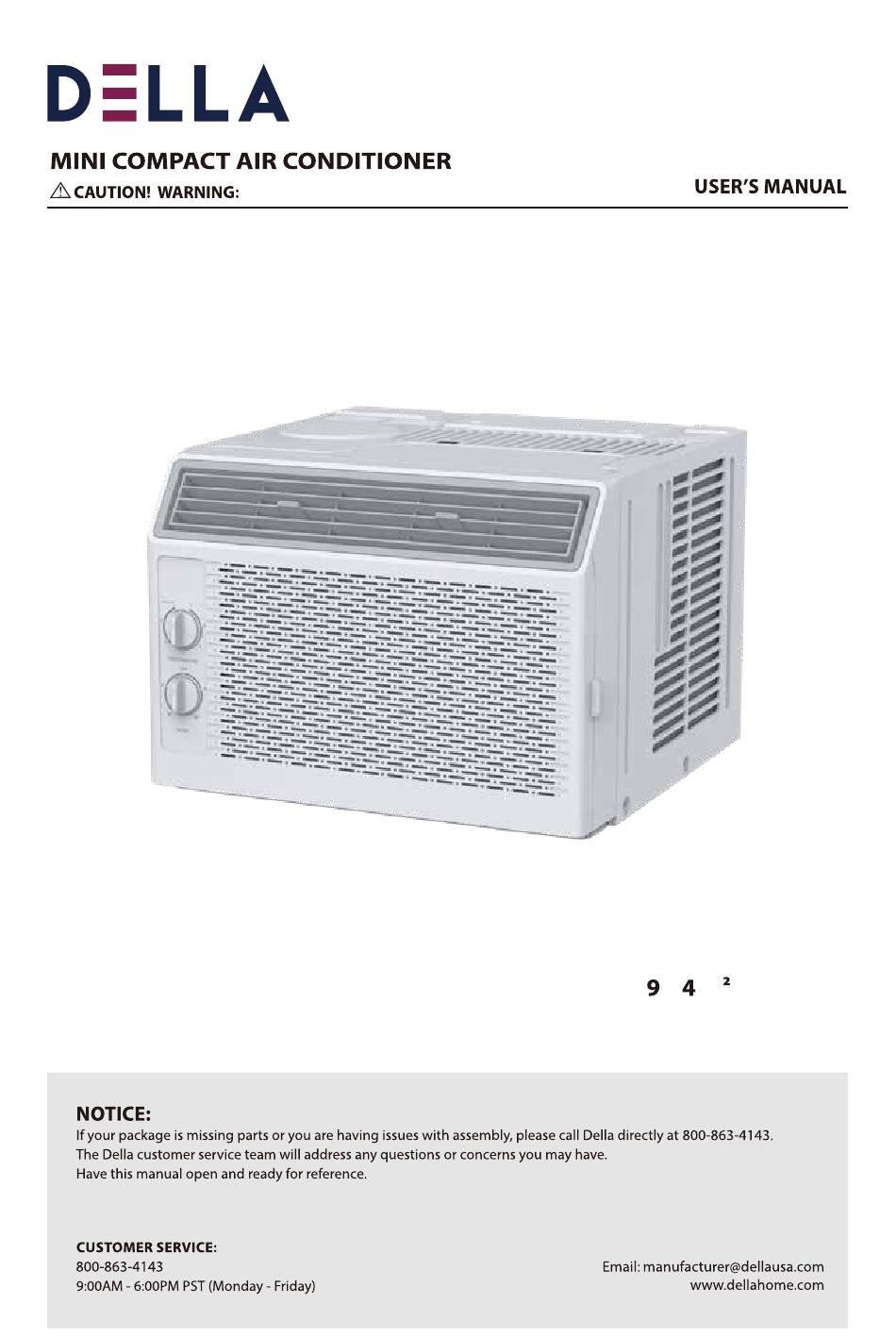

- Page 1 Model#048-TL-W5KW Read all instructions before use this device. Recommended Room Size: 100~150 sp.ft / -1 m Product appearance and color may vary from pictures. Keep the manual properly for future reference.
- Page 2 INTRODUCTION IMPORTANT SAFETY INSTRUCTION ................ELECTRICAL REQUIREMENTS ..................PACKING LIST ......................INSTALLATION&ASSEMBLY INSTRUCTIONS ..............USING YOUR AIR CONDITIONER .................. CARE AND CLEANING ....................TROUBLESHOOTING ....................
- Page 3 Do not remove the ground prong. Unplug the air conditioner before servicing. Do not use a plug adapter. Use two or more people to move and install the air conditioner. Model Number: 048-TL-W5KW Power supply(Ph-V-Hz) 1Ph, 115V~, 60Hz RATED Capacity(Btu/h) 5000 RATED Input(W)
- Page 4 Please read the manual before installation, using, maintenance. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. Do not pierce or burn the appliance. The appliance shall be stored in a room without continuously operating sources (for example: open flames, an operating ignition gas appliance or an operating electric heater.) Please contact the nearest after-sale service center when maintenance is necessary.
- Page 5 Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove the ground prong. Do not use an adapter Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock 3 / 12...
- Page 7 2 " to 34" 584 mm to 863 mm When handling the unit, be careful to avoid cuts from the sharp metal edges and aluminum fins on the front and rear coils. 5 / 12...
- Page 8 (Suggest to keep a downward oblique, to let accumulated rain water to drain out, from back side of the unit bottom.)
- Page 9 FIG. 13 FIG. 10 FIG. 9 FIG. 14 FIG. 11 FIG. 12...
-
Page 10: Operation Safety
INSTALLATION & ASSEMBLY INSTRUCTIONS Introduction to Refrigerants R32 Before installing the appliance, you must read the manual carefully to get the safety information and notes. When filling the combustible refrigerant, any of your rude operations may cause serious injury or injuries to human body or bodies and object or objects. A leak test must be done after the installation is completed. - Page 11 To direct the airflow, horizontal wheel to control the horizontal direction, air deflector to control the vertical direction. air deflector horizontal wheel air deflector...
- Page 12 FIG. 15...
