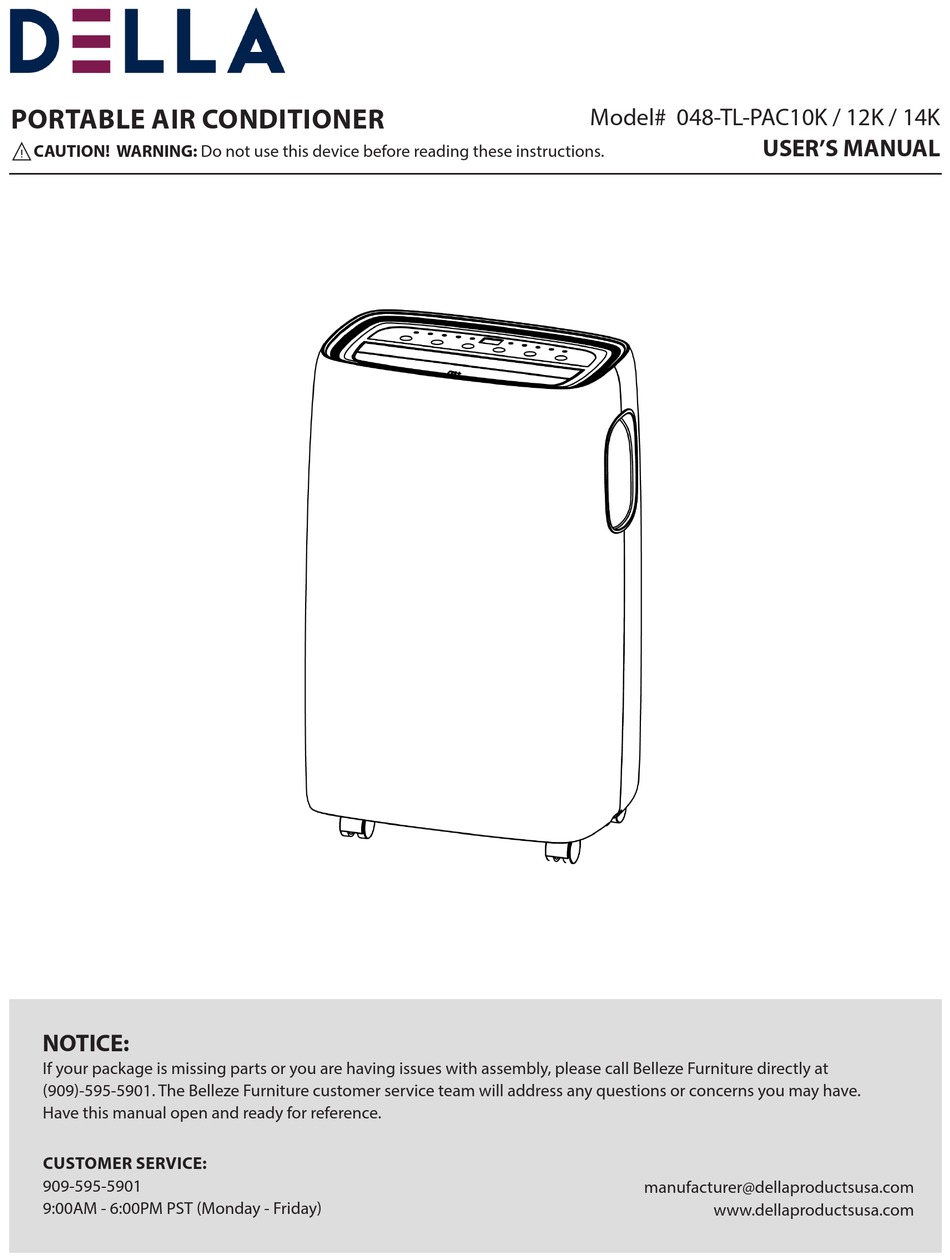

PORTABLE AIR CONDITIONER
Model# 048-TL-PAC10K / 12K / 14K
USER'S MANUAL
⚠CAUTION! WARNING: Do not use this device before reading these instructions.
NOTICE:
If your package is missing parts or you are having issues with assembly, please call Belleze Furniture directly at
(909)-595-5901. The Belleze Furniture customer service team will address any questions or concerns you may have.
Have this manual open and ready for reference.
CUSTOMER SERVICE:
909-595-5901
manufacturer@dellaproductsusa.com
9:00AM - 6:00PM PST (Monday - Friday)
www.dellaproductsusa.com
1
Advertisement
Table of Contents
Related Manuals for DELLA 048-TL-PAC12K
Summary of Contents for DELLA 048-TL-PAC12K
- Page 1 PORTABLE AIR CONDITIONER Model# 048-TL-PAC10K / 12K / 14K USER’S MANUAL ⚠CAUTION! WARNING: Do not use this device before reading these instructions. NOTICE: If your package is missing parts or you are having issues with assembly, please call Belleze Furniture directly at (909)-595-5901.
-
Page 2: Table Of Contents
Table of Contents Warnings & Precautions --------------------------------------------------------------------- Technical Specification ------------------------------------------------------------------------ Parts and Features ------------------------------------------------------------------------------ Installation guide ------------------------------------------------------------------------------ Control Panel ------------------------------------------------------------------------------------ Remote Control ------------------------------------------------------------------------------------ Care and Maintenance --------------------------------------------------------------------------- Troubleshooting ------------------------------------------------------------------------------- Error Code Chart -------------------------------------------------------------------------------... -
Page 3: Warnings & Precautions
When using electrical appliances, basic safety precautions should always be followed including the following: READ ALL INSTRUCTIONS BEFORE USE 1. To disconnect, turn off the unit and then unplug the power 11. Do not cover the air inlet or vents. cord. -
Page 4: Technical Specification
Specifications Model Number 048-TL-PAC10K 048-TL-PAC12K 048-TL-PAC14K Dimensions (W x D x H) 17.32”x12.79”x27.36” 17.52”x14.76”x28.35” 17.52”x14.76”x28.35” Net Weight 55.11 lb 59.52 lb 68.34 lb Gross Weight 70.55 lb 74.96 lb 85.98 lb Power Rating 1120 W 1250 W 1430 W Voltage... -
Page 5: Parts And Features
Parts & Features A. Air Outlet Grill F. Power Cord B. Control Panel G. Continuous Drainage Outlet C. Carrying Handle H. Air Exhaust D. Casters / Wheels I. Manual Drainage Outlet E. Air Filter J. Air Intake Grill ¹ Only for 048-TL-PAC10K... - Page 6 Parts & Features K. Window Kit Adapter Q. Window Sliding Kit L. Window Kit Adapter Extension R. Rubber Plug M. Remote Control S. Exhaust Host Connector N. Screws T. Foam Seal Type 1 O. Drain Hose 1 U. Foam Seal Type 2 P.
-
Page 7: Installation Guide
Installation Guide Placing the Unit Place the unit on smooth level surface. Allow at least 12” of clearance around the unit. Plug the unit to a grounded power socket. Place the unit near window for exhaust installation. NOTE: This unit is intended for indoor use only. This unit works best in enclosed area. - Page 8 Installation Guide Window Sliding Kit Installation Your window sliding kit is designed to fit most standard window. Cut the window sliding kit if the window width is shorter than the minimum length of the sliding kit. NOTE: Cutting the window kit will reduce the maximum length it can extend. Slide the window slider kit panels together and screw to lock the panels in place.
- Page 9 Installation Guide Foam Seal Installation (Optional) 1. Cut the foam seal type 1 (adhesive type) to the proper length and attach them to the window and the window stool / window jamb. 2. Attach the window sliding kit to the window. 3.
- Page 10 Installation Guide Drain Hose Installation Water need to be drain for “DRY” mode operation. To install drain hose, 1. Unscrew the drain cap from the drain outlet. 2. Connect one end of the drain hose to the drain outlet, then lead the other end into a drain that is lower than the drain outlet.
- Page 11 Installation Guide Grounding This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. For additional safety, the power cord features an integrated circuit breaker. Test and reset the buttons are provided on the plug case.
- Page 12 User Instruction Power ON / OFF Plug the unit into a grounded socket. The screen will display “- -” and turn into stand by mode. Press the POWER button once to turn the unit on. Press the POWER button once more to turn the unit off. ⚠CAUTION! WARNING: DO NOT unplug the unit when it is still “ON”...
- Page 13 User Instruction Start Up Timer Press the TIMER button when the unit is in stand by mode (plugged into power but have not power on). The time indicator and the number of hours on the screen will flash. Tap or hold to change the delay start timer in 0.5 hour increments up to 10 hours, and then 1 hour increments up to 24 hours.
-
Page 14: Control Panel
User Instruction Insert or Replace Batteries on Remote Control Remove the cover on the back of the remote control; Replace the old batteries with two new AAA 1.5V bat- teries. Replace the cover. NOTE: Remove the batteries if the remote control is not use for an extended period of time. ⚠CAUTION! WARNING: DO NOT mix old and new batteries. - Page 15 User Instruction Power ON / OFF Plug the unit into a grounded socket. The screen will display “− −” and turn into stand by mode. Press the POWER button on the remote control once to turn the unit on. Press the POWER button once more on the remote control to turn the unit off. ⚠CAUTION! WARNING: DO NOT unplug the unit when it is still “ON”...
- Page 16 User Instruction Start up Timer Press the TIMER button when the unit is in stand by mode (pugged into power but have not powered on) and the arrow is pointed at “ON “. Press the ▲ and ▼ button to make the desire setting. Confirm the setting by pressing the TIMER button again.
-
Page 17: Care And Maintenance
User Instruction Care and Maintenance Draining the unit: Condensate will residue inside the unit when operate. Condensate need to be drained to keep the unit working. Continue Drainage Drain hose can be installed on the unit to continue drainage. See drain hose installation for installation instruction. Manual Drainage 1. - Page 18 User Instruction Clearing the filter: To keep your air conditioner working efficiently, you should clean the filters every week of operation. Grasp the upper panel tab and take off the filter behind the grill on the back panel as shown in the figure to the right. Wash the filter using liquid dish-washing detergent and warm water.
-
Page 19: Troubleshooting
Trouble shooting Problem Possible Reasons Solutions Make sure the unit is plugged into No Power a grounded power socket Check the house fuse / circuit Electrical Protection breaker box. Unit does not work Water tank is full Drain the tank and reset setting. A 3 mins protective time delay Power Failure may prevent the unit to operate... -
Page 20: Error Code Chart
Error Code Chart Error Code Description Solution Low Temperature Wait until the unit finish defrosting Probe Failure Damaged Sensor, contact customer service Full water tank Empty the water tank...
