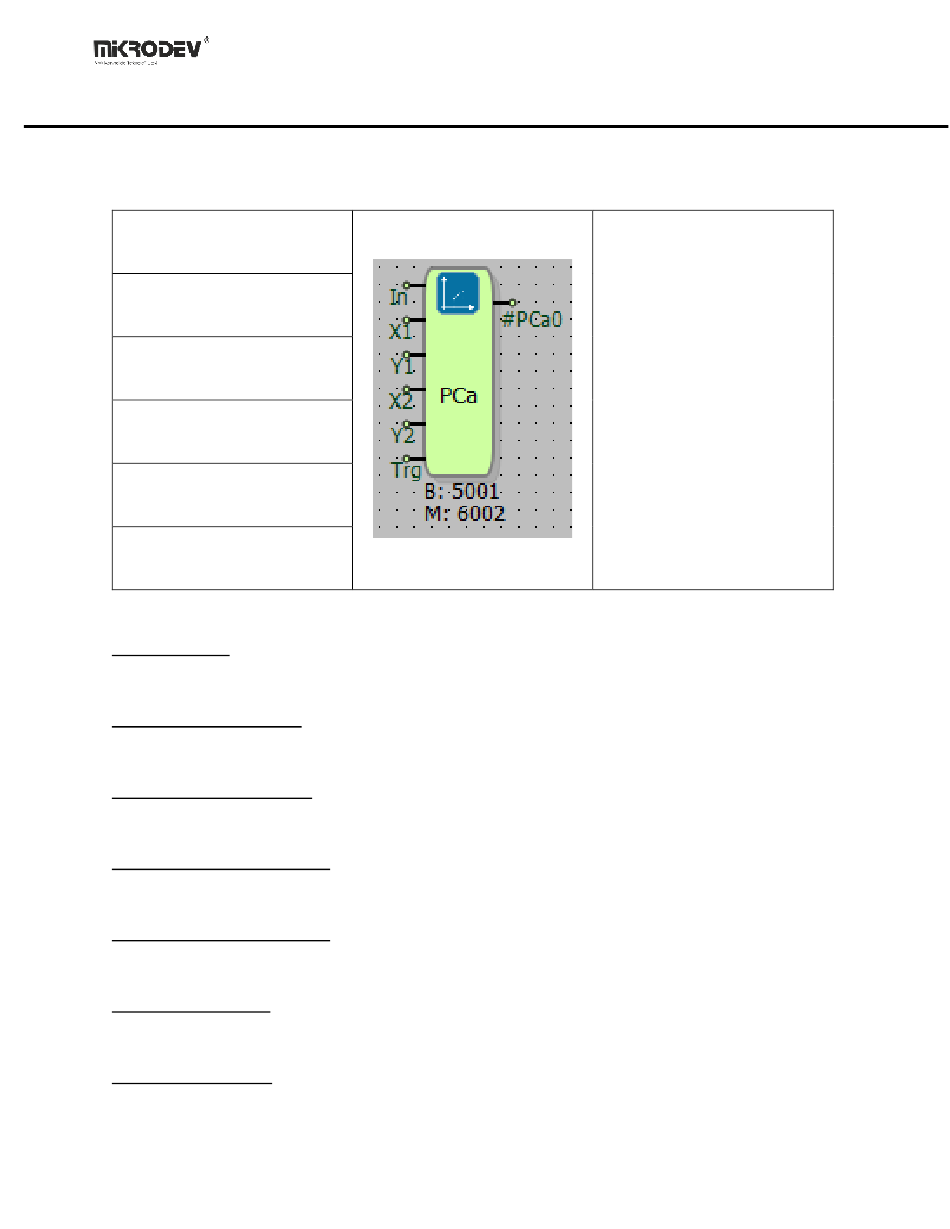

3.2 POINT CALIBRATOR
3.2.1 Connections
In: Signal input
X1: Signal input low limit
Y1: Signal output low limit
X2: Signal input upper limit
Y2: Signal output upper limit
Trg: Trigger input
3.2.2 Connection Explanations
In: Signal input
The signal input to be calibrated.
X1: Signal input low limit
The X value of the first point of calibration.
Y1: Signal output low limit
The Y value of the first point of calibration.
X2: Signal output upper limit
The X value of the second point of calibration.
Y2: Signal output upper limit
The Y value of the second point of calibration.
Trg: Triggering input
It is the block triggering input.
#PCa0: Block output
It is the calibrated block output.
91
#PCa0: Block output
