5.5 ANALOG MATH

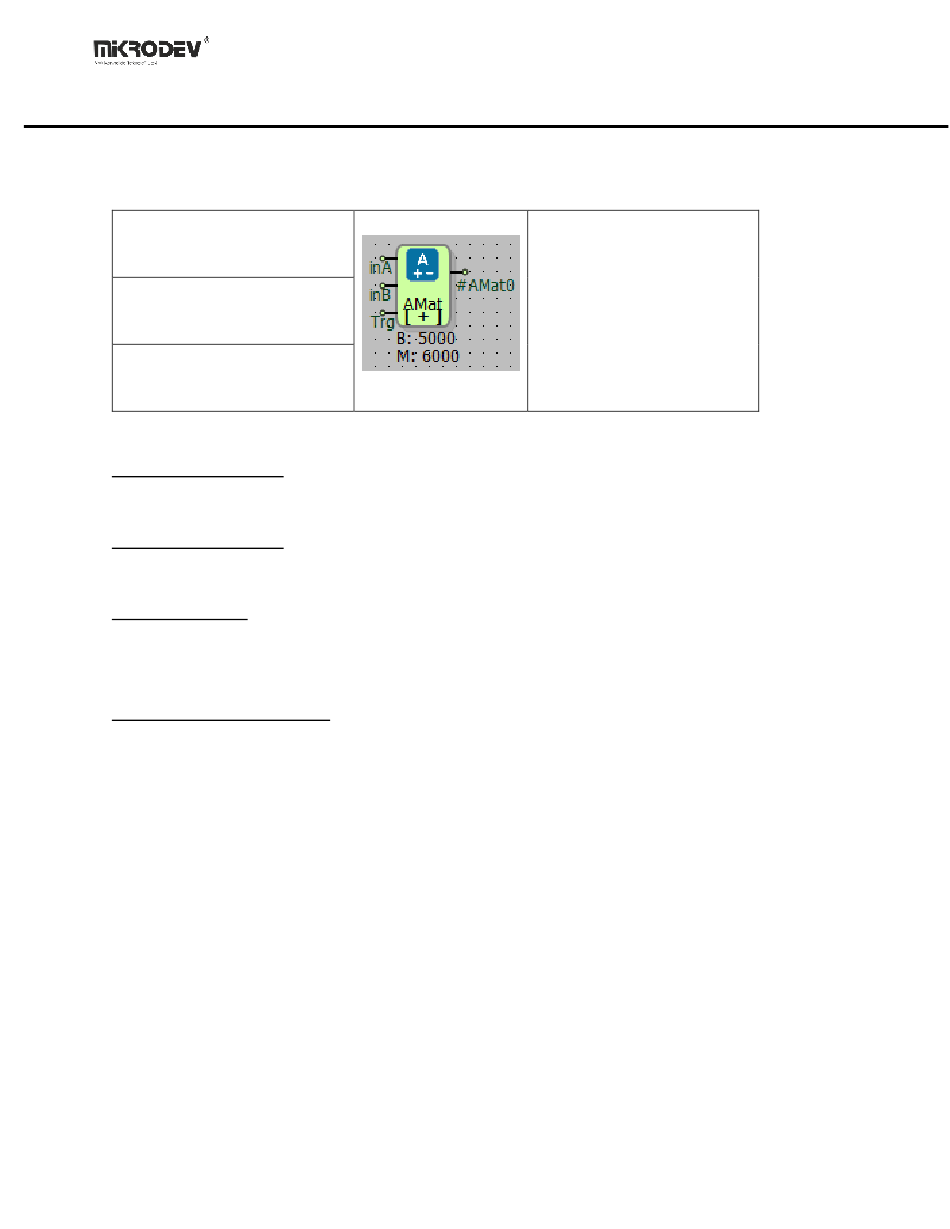

5.5.1 Connections
inA: Analog data input
inB : Analog data input
Trg: Trigger input
5.5.2 Connection Explanations
inA: Analog data input
Analog value to be processed.
inB: Analog data input
Analog value to be processed.
Trg: Trigger input
If the "On When Trig is Active" is selected in Block Settings menu, block is activated at each rising
edge detected at the Trg input of the block.
#AMat0: Block of the Output
32-bit floating point output of the block.
