OPERATING AND MAINTENANCE MANUAL

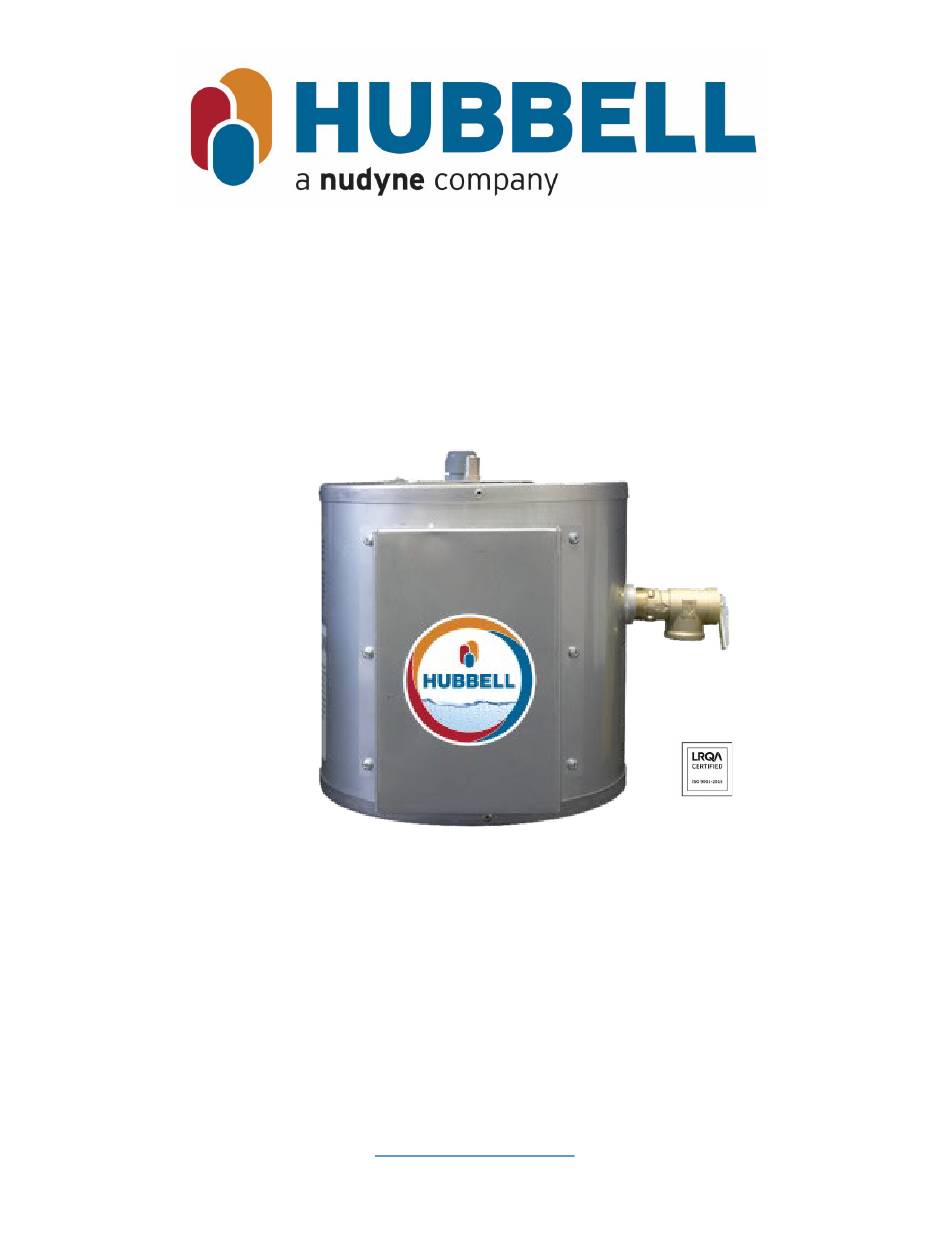

HUBBELL ENDURANCE CE 110
9/6/23
-IMPORTANT-
-IMPORTANT
Always reference the full model number and serial number when calling the factory.
HUBBELL ELECTRIC HEATER COMPANY
45 SEYMOUR STREET
STRATFORD, CT 06615
PHONE: (203) 378-2659
FAX: (203) 378-3593
www.hubbellheaters.com
0
Hubbell Endurance CE 110
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hubbell ENDURANCE CE 25
Summary of Contents for Hubbell ENDURANCE CE 25
- Page 1 OPERATING AND MAINTENANCE MANUAL HUBBELL ENDURANCE CE 110 9/6/23 -IMPORTANT- -IMPORTANT Always reference the full model number and serial number when calling the factory. HUBBELL ELECTRIC HEATER COMPANY 45 SEYMOUR STREET STRATFORD, CT 06615 PHONE: (203) 378-2659 FAX: (203) 378-3593 www.hubbellheaters.com...
-
Page 2: Table Of Contents
SURFACE TEMPERATURE HIGH LIMIT CUT-OFF ........................... 15 HEATING ELEMENT ....................................15 THERMOSTAT ....................................... 16 RELIEF VALVE ....................................... 16 SECTION VI – WARRANTY ..................................17 LIMITED WARRANTY AND TANK REPLACEMENT POLICY ........................17 LIMITED WARRANTY - TEN YEAR................................17 Hubbell Endurance CE 110... - Page 3 CONDITIONS AND LIMITATIONS ................................18 HOW TO OBTAIN SERVICE ASSISTANCE ............................... 18 The following information should be noted at time of installation and retained for future reference. Serial No.: _____________________________________________________________________ Date Installed:__________________________________________________________________ Dealer's Name:_________________________________________________________________ Address:_______________________________________________________________________ City and State:__________________________________________________________________ Hubbell Endurance CE 110...
-
Page 4: Warning / Caution
If questions regarding installation arise, check your local plumbing and electrical inspectors for proper procedures and codes. If you cannot obtain the required information, contact the company. Hubbell Endurance CE 110... - Page 5 Hubbell Endurance CE 110...
-
Page 6: Section I - General Information
This automatic control is set at the factory to maintain a water temperature of 125°F to reduce the risk of scald injury. The thermostat dial is graduated with markings from 1 to 10 with 10 being the hottest. Capillary Tube and Bulb Hubbell Endurance CE 110... -
Page 7: Outer Shell And Insulation
80° - 120° F and is typically used when supplying hot water to multiple lavatories from a single CE110. WALL BRACKET (Optional) An optional wall bracket is available for easy mounting of the heater. Hubbell Endurance CE 110... -
Page 8: Section Ii - Installation Guidelines
• The water heater should be protected from freezing and waterlines insulated to reduce energy and water waste. • Leave sufficient room to service the heater. • Do not install in an area where flammable liquids or combustible vapors are present. Hubbell Endurance CE 110... -
Page 9: Piping Installation
3. Mark the electrical shut off clearly for future emergency use. 4. Field connections with aluminum conductors must use connectors approved for copper to aluminum connection. 5. All other electrical connections are made at the factory; therefore, no other electrical connections are necessary. Hubbell Endurance CE 110... -
Page 10: Final Checks
____Water heater filled with water. ____Power leads connected inside electrical enclosure from separate fused circuit. k. ____Ground wire connected. 3. After the water is heated for the first time, monitor the water temperature as described in Section III, Quarterly Inspection. Hubbell Endurance CE 110... -
Page 11: Wiring Diagram
Wiring Diagram INSTALLATION WITHOUT THERMOSTATIC MIXING VALVE Hubbell Endurance CE 110... -
Page 12: Installation With Thermostatic Mixing Valve
INSTALLATION WITH THERMOSTATIC MIXING VALVE Hubbell Endurance CE 110... -
Page 13: Section Iii - Scheduled Maintenance And Operation
Rub your finger around the heating element and check for any evidence of moisture. If moisture is present or a water drip is observed, follow the procedure outlined in Section V. 4. Check for loose electrical connections. Tighten as necessary. Hubbell Endurance CE 110... -
Page 14: Annual Inspection
1. Should the heater be subject to flood, fire, or other damaging conditions, turn off the power and water to the heater. 2. DO NOT place the water heater in operation again until it has been thoroughly checked by qualified service personnel. Hubbell Endurance CE 110... -
Page 15: Section Iv - Troubleshooting
210°F or water pressure exceeds the pressure rating of the safety relief valve. If trouble is excessive temperature, then thermostat is not shutting off at the right setting and thermostat must be replaced Hubbell Endurance CE 110... -
Page 16: Section V - Servicing & Replacement Of Parts
4. Lift manual release lever on relief valve to let air into system or break union on 6. outgoing water line. 5. Drain water from tank. 6. Remove access cover. 7. Disconnect the wires from the heating element terminals. 8. Unscrew the heating element. 9. Withdraw element assembly. Hubbell Endurance CE 110... -
Page 17: Thermostat
4. Disconnect overflow piping. 5. Unscrew relief valve, remove assembly, and replace with new one. 6. Connect overflow piping. 7. Turn on incoming water supply and check for leaks. 8. Turn the safety switch to ON position. Hubbell Endurance CE 110... -
Page 18: Section Vi - Warranty
Your Action: When you discover a defect, immediately notify the dealer from whom the heater was purchased. If you cannot locate the dealer, contact an authorized Hubbell dealer who stock heater parts and who has trained service personnel, or contact the Company. -
Page 19: Conditions And Limitations
In the event that the firm, for whatever reason, is unable to help, refer to the telephone directory commercial listing for local utility or qualified service assistance. If neither action has solved your problem, contact The Electric Heater Company as follows: HUBBELL ELECTRIC HEATER COMPANY 45 SEYMOUR STREET STRATFORD, CT 06615...
