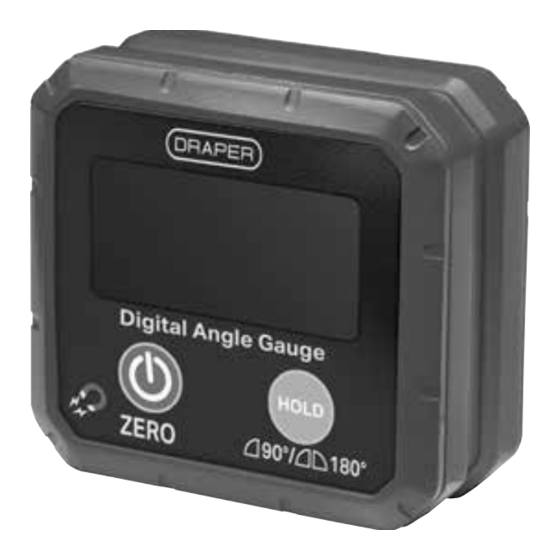

Draper DBL100 Manual

DIGITAL
BOX LEVEL
29098
Read this manual in full before using this product and
retain it for future use. Always use the latest version of the
manual. Please visit drapertools.com/manuals for the
latest version.
1. Intended Use
This product is designed to measure or set angles and for
use as a digital level. Strong magnetic base to attach to
surfaces such as conduit, pipes, saw blades and vents.
Any other application beyond the conditions established
for use will be considered misuse. Draper Tools accepts no
responsibility for improper use of this product.
2. Specification
Stock No.
Part No.
Measuring ranges
Auto shut down (approx.)
Operating/Storage temperature
Batteries required
Dimensions
Net Weight (approx.)
3. Health and Safety Information
Important: Read all the Health and Safety instructions before attempting to operate, maintain or repair this product.
Failure to follow these instructions may result in injury or damage to the user or the product.
• DO NOT use if the device is damaged in any way or evidence of battery leakage.
• When replacing the batteries check that they are fitted in the correct +/- orientation.
• DO NOT disassemble or drop this device.
• DO NOT attempt to repair this device; it contains no user-serviceable parts.
• DO NOT use this product for purposes other than its intended use.
• DO NOT expose to high temperatures or humidity.
29098
DBL100
0 – 90°
0 – 180°
10 minutes
0 – 50°C /<85%RH
2 × AAA 1.5V (not supplied)
W 30 × H 68 × D 62mm
100g
EN
Original Instructions
Version 1 – August 2024
