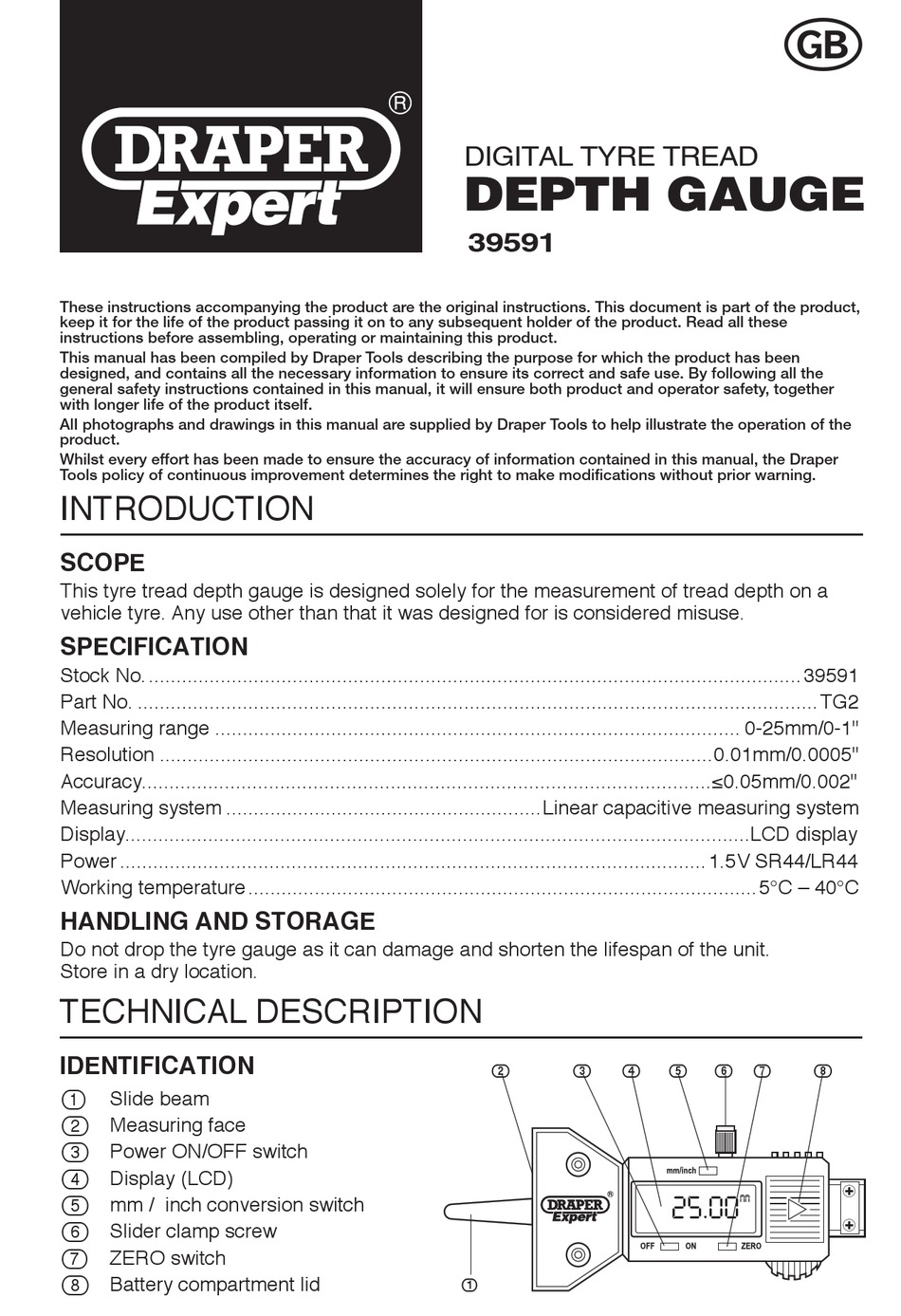

Draper Expert 39591 Instructions

These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.

INTRODUCTION

SCOPE

This tyre tread depth gauge is designed solely for the measurement of tread depth on a
vehicle tyre. Any use other than that it was designed for is considered misuse.

SPECIFICATION

Stock No. ......................................................................................................................39591
Part No. ........................................................................................................................... TG2
Measuring range ............................................................................................... 0-25mm/0-1"
Resolution ....................................................................................................0.01mm/0.0005"
Accuracy.......................................................................................................≤0.05mm/0.002"
Measuring system .........................................................Linear capacitive measuring system
Display.................................................................................................................LCD display
Power .......................................................................................................... 1.5V SR44/LR44
Working temperature ............................................................................................5°C – 40°C

HANDLING AND STORAGE

Do not drop the tyre gauge as it can damage and shorten the lifespan of the unit.
Store in a dry location.

TECHNICAL DESCRIPTION

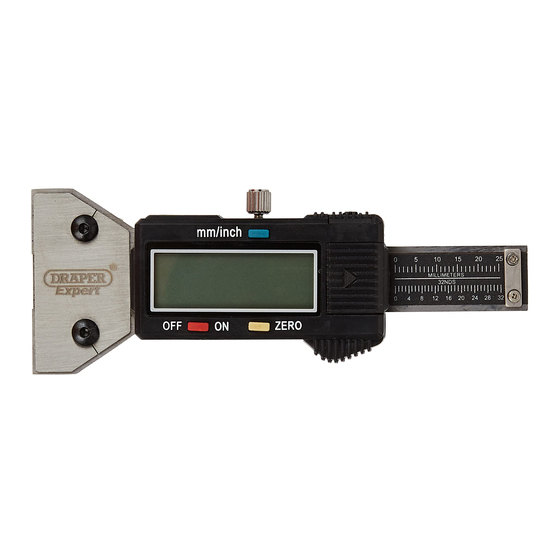

IDENTIFICATION

Slide beam
(1)
(2) Measuring face
(3) Power ON/OFF switch
(4) Display (LCD)
(5) mm / inch conversion switch
(6) Slider clamp screw
(7) ZERO switch
(8) Battery compartment lid
DIGITAL TYRE TREAD
DEPTH GAUGE
39591
(2) (3) (4)
(1)
(5) (6) (7) (8)
25.00
MM
