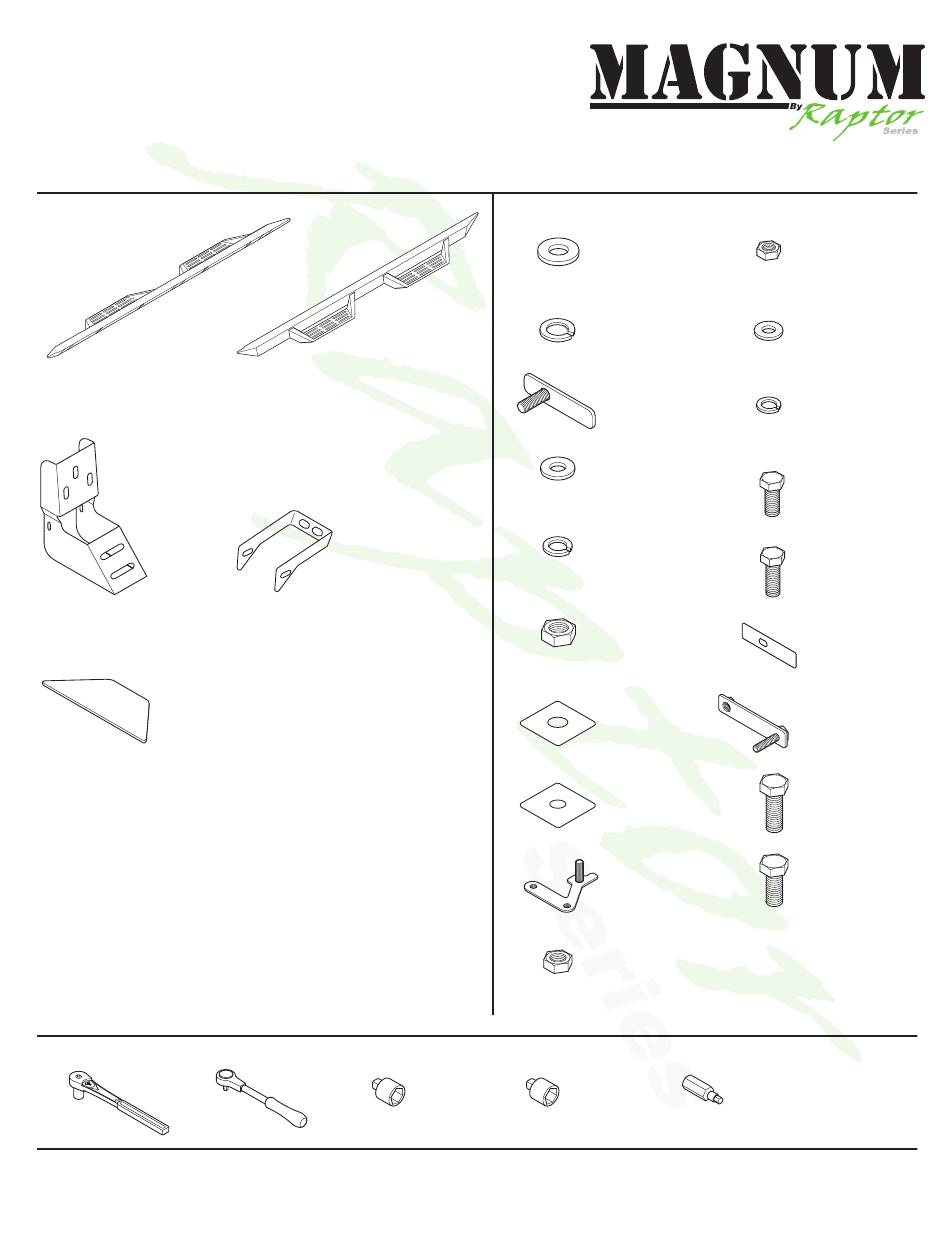

GTS30DG/GTS31DG/GTS32DG
MAGNUM RT STEPS
Components:
Passenger
Side Step Bar
Qty 1
Mounting Brackets
Qty 6
Front Armor Plates
Qty 2
Tools Required:
TORQUE
RATCHET
WRENCH
Torque Specifications:
For Rocker Panel Mount Installations
M8 through M12 bolts and nuts are set to 15-20 ft lbs.
Driver Side
Step Bar
Qty 1
Support Brackets
Qty 6
10MM SOCKET
Hardware:
M10 Flat
Washers
Qty 6
M10 Lock
Washers
Qty 6
M10 Bolt Plates
Qty 6
M8 Flat
Washers
Qty 34
M8 Lock
Washers
Qty 34
M10 Hex
Head Nuts
Qty 6
M10 Plastic
Push Nuts
Qty 6
M8 Plastic
Push Nuts
Qty 12
M8 Triangle Bolt/
Nut Plates
Qty 6
M8 Hex
Head Nuts
Qty 12
13MM SOCKET
16MM SOCKET
GTS30DG/GTS31DG/GTS32DG
1
Rev 1
M6 Hex
Head Nuts
Qty 24
M6 Flat
Washers
Qty 48
M6 Lock
Washers
Qty 24
M6 x 20MM Hex
Head Bolts
Qty 12
M6 x 30MM Hex
Head Bolts
Qty 12
Spacers
Qty 8
RTSPN175
Bolt/Nut Plates
Qty 6
M8 x 30MM
Hex Head Bolts
Qty 12
M8 x 25MM
Hex Head Bolts
Qty 8
Advertisement
Related Manuals for Raptor Series MAGNUM RT GTS30DG
Summary of Contents for Raptor Series MAGNUM RT GTS30DG
- Page 1 Rev 1 GTS30DG/GTS31DG/GTS32DG MAGNUM RT STEPS Components: Hardware: M10 Flat M6 Hex Washers Head Nuts Qty 6 Qty 24 M10 Lock M6 Flat Washers Washers Qty 6 Qty 48 Passenger Driver Side M10 Bolt Plates M6 Lock Side Step Bar Step Bar Qty 6 Washers...
- Page 2 Rev 1 Note: When installing the brackets and bars, all hardware must be left loose until all the items are attached. Remove all contents from the Passenger Side Driver Side package and check steps for any damage. Also, verify that all components and hardware listed above are included before you begin installation.
-
Page 3: Installing Mounting Brackets
Rev 1 M10 Single Bolt Plate Insert either Single M10 Bolt Plate or M8 Triangle Bolt/Nut Plate into the oblong factory hole (5a) with the threaded stud OBLONG FACTORY sticking out of the oblong factory HOLE hole (5b). Note: If your threaded holes do not not sit flush with the outside of the rocker panel, you must use one (1) Flat Spacer Plate installed... - Page 4 Rev 1 Installing Front/Center Support Braces Line up Support Brackets with SUPPORT the holes in the Mounting BRACKET PRE-DRILLED HOLES IN Brackets as well as the pre-drilled PINCH-WELD holes in the pinch weld of the truck. Attach the Support Brackets to the pinch weld by using two (2) M6x30MM Hex Head Bolts, two (2) M6 Lock Washers, four (4)
- Page 5 Installing the Step Bar RTSPN175 MOUNTING BOLT/NUT PLATE BRACKET Line up mounting points on the step bar with the mounting M8 FLAT WASHER holes in each bracket. M8 LOCK WASHER Fasten the step bar to each bracket using one (1) RTSPN175 Bolt/Nut Plate, one (1) Plastic Push Nut, one (1) M8 Hex Head Nut, two (2) M8 Lock Washers,...
